4-6
REMOVAL
OF
PINCH
ROLLER
ASS’Y
AND
PINCH
ROLLER
ARM
1.
Do
steps
1
and
2
of
Section
4-4.
2.
Loosen
3
set
screws
in
Solenoid
Arm
(A).
3.
Lift
off
Pinch
Roller
Arm
(B)
from
front
panel
Watch
for the washers.
T-559

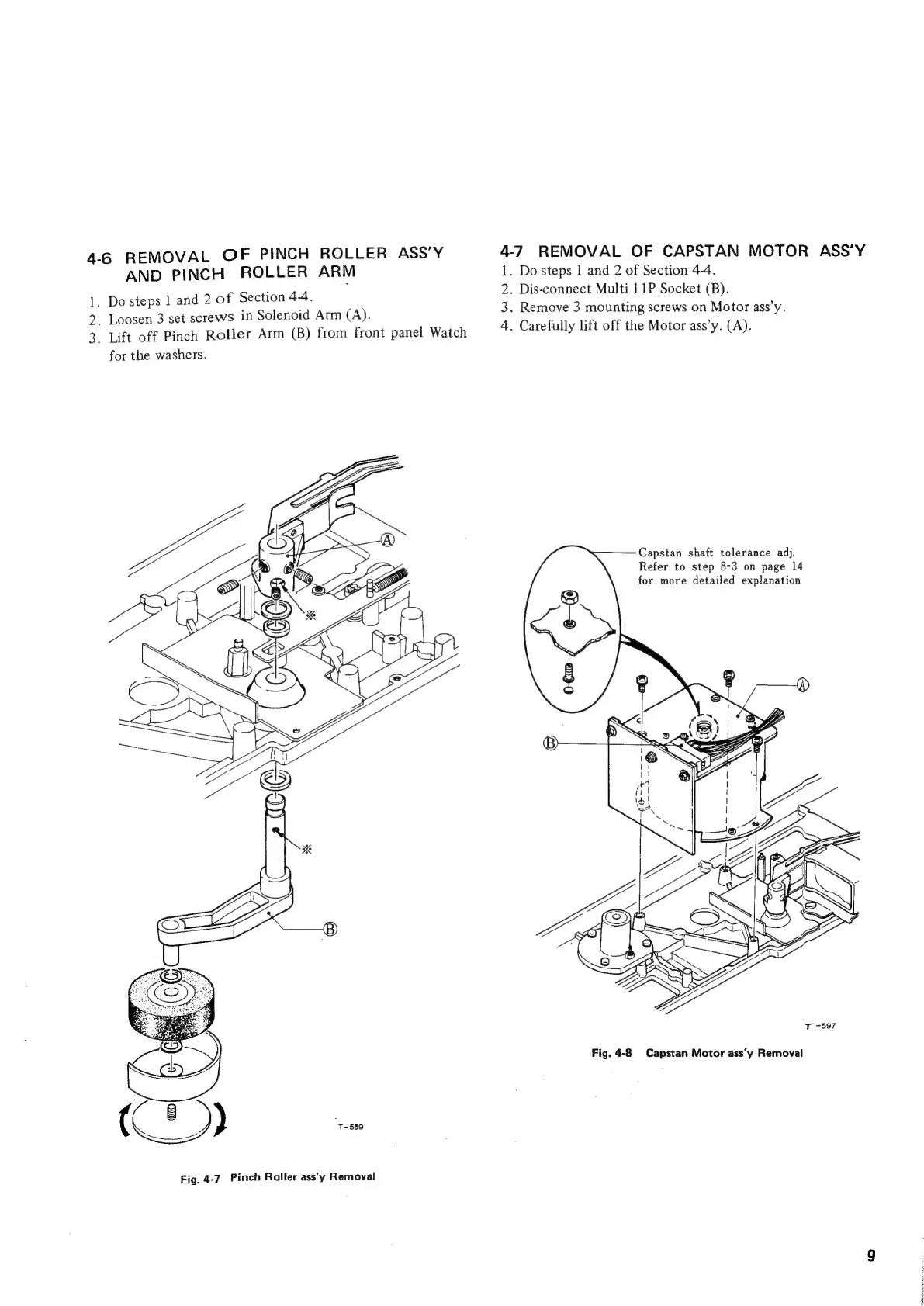

Fig.
4-7
Pinch
Roller
ass‘y
Removal
4-7 REMOVAL OF CAPSTAN MOTOR ASS’Y
1. Do steps 1 and 2 of Section 4-4.
2. Dis-connect Multi 11P Socket (B).
3. Remove 3 mounting screws on Motor ass’y.
4. Carefully lift off the Motor ass’y. (A).
Capstan shaft tolerance adj.
Refer to step 8-3 on page 14
for more detailed explanation
T -597
Fig. 4-8 Capstan Motor ass’y Removal
