Teac AG-D9260 - Schematic Diagrams; Overall Schematic

86745231
E
D
C
B
A

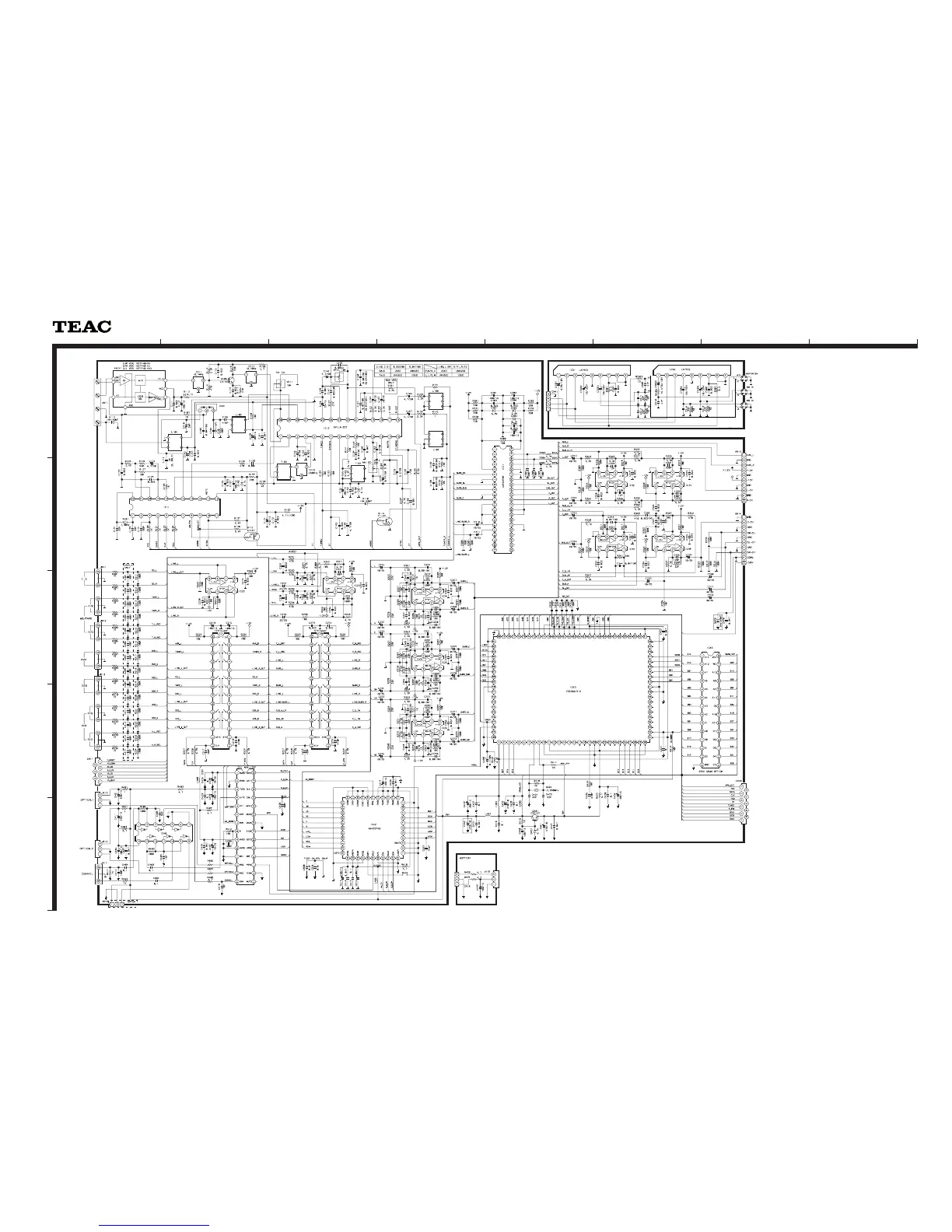

SCHEMATIC DIAGRAM
AG-D9260
AV Digital Home Theater Receiver
AAGG--DD99226600
1 st Issue; June 2001
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
