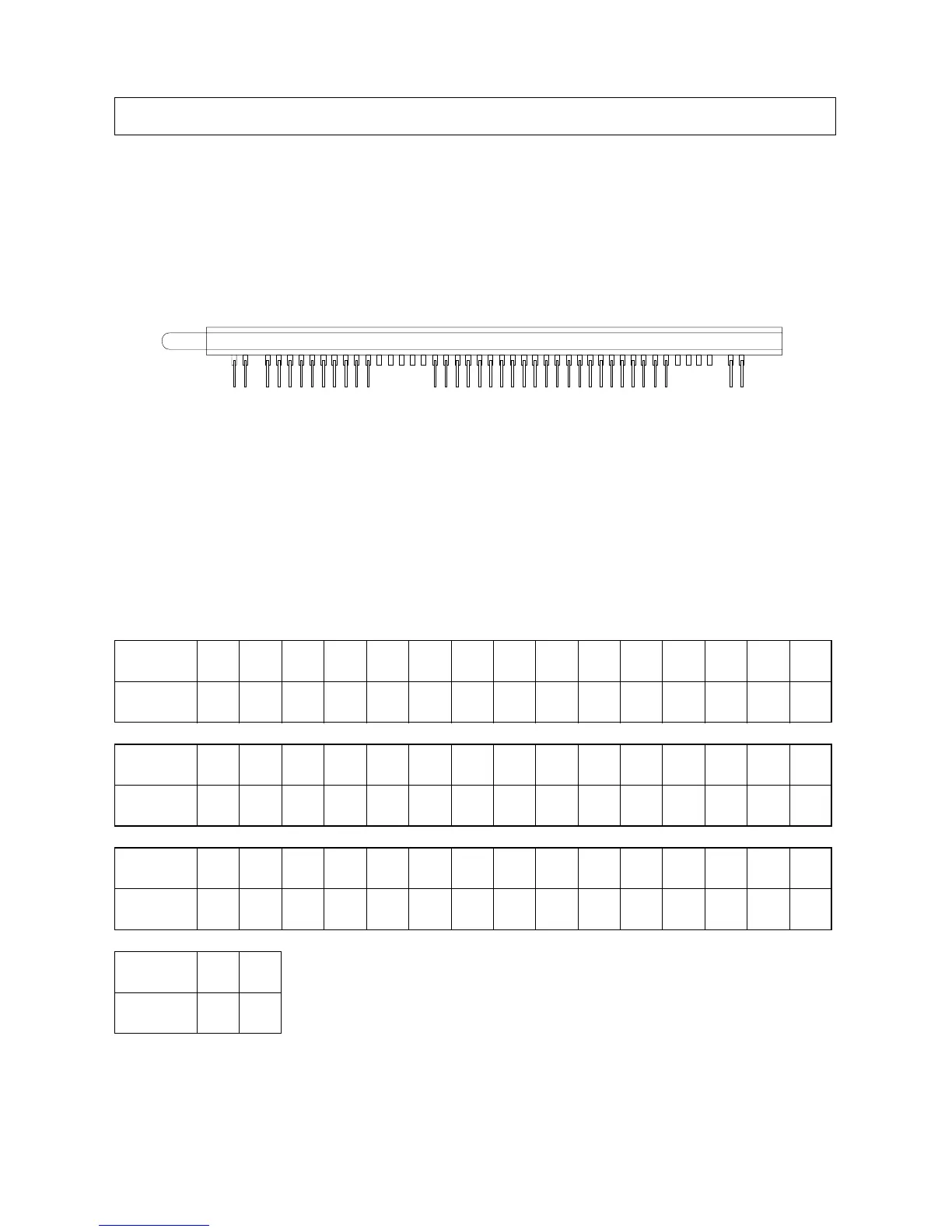

Teac AG-D9260 - Pin Connections; Overall Pinout Diagram; Connection Table

9
Pin No. 46 47
F1 F1
Pin No. 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
NX NX NX NX 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G NP
Pin No. 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 NX
Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
F2 F2 NP NX NX NX NX P22 P21 P20 P19 P18 P17 P16 P15
Connection
Connection
Connection
Connection
PIN CONNECTION
47 1
