Teac AG-V4200 - Specifications; Amplifier Section; AM Tuner Section; Video Section

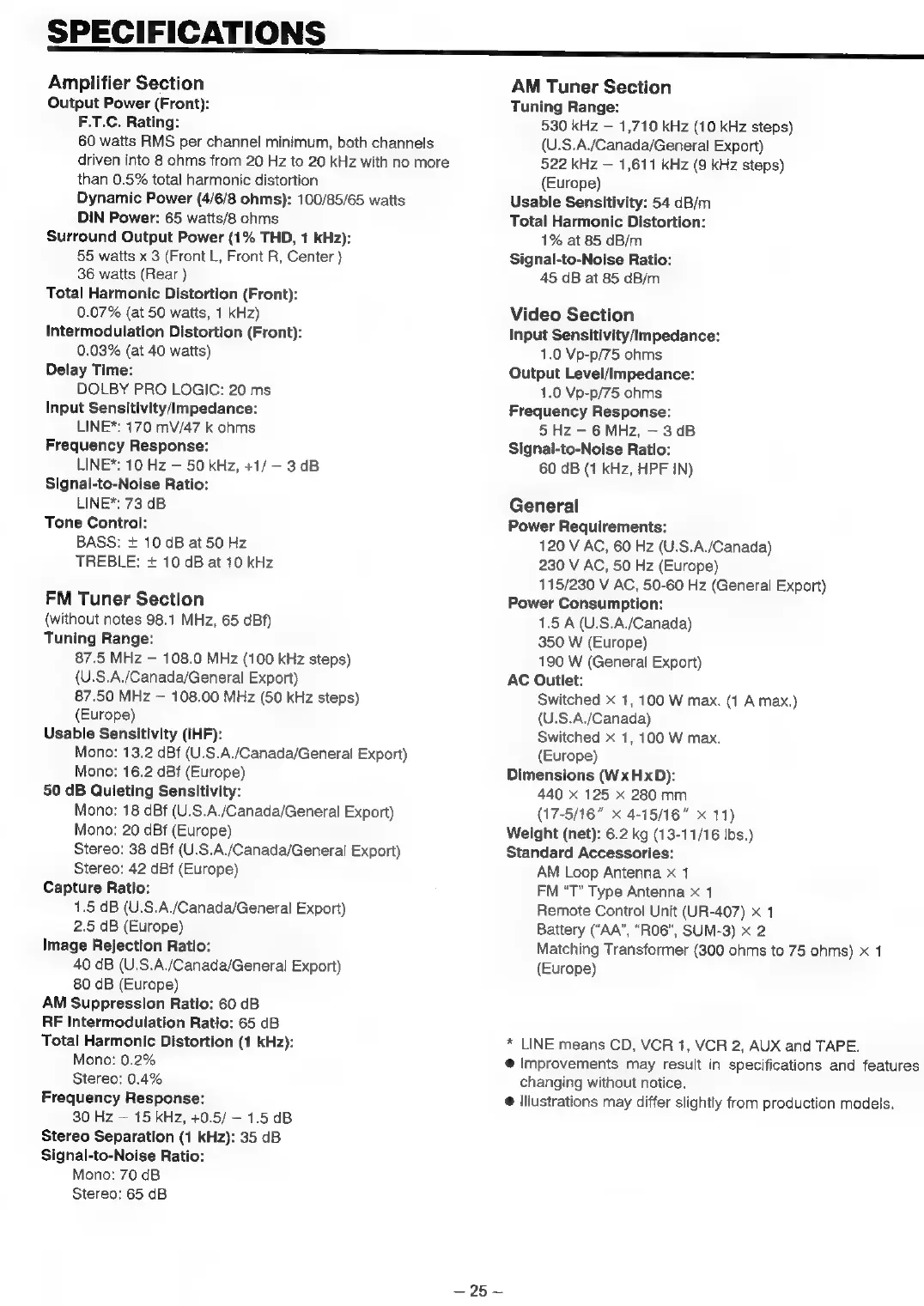

SPECIFICATIONS
Amplifier Section
Output Power (Front):
F.T.C. Rating:
60 watts RMS per channel minimum, both channels
driven into 8 ohms from 20 Hz to 20 kHz with no more
than 0.5% total harmonic distortion
Dynamic Power (4/6/8 ohms): 100/85/65 watts
DIN Power: 65 watts/8 ohms
Surround Output Power (1% THD, 1 kHz):
55 watts x 3 (Front L, Front R, Center )
36 watts (Rear )
Total Harmonic Distortion (Front):
0.07% (at 50 watts, 1 kHz)
Intermodulation Distortion (Front):
0.03% (at 40 watts)
Delay Time:
DOLBY PRO LOGIC: 20 ms
Input Sensitivity/Impedance:
LINE*: 170 mV/47 k ohms
Frequency Response:
LINE*: 10 Hz — 50 kHz, +1/ — 3 dB
Signal-to-Noise Ratio:
LINE*: 73 dB
Tone Control:
BASS: + 10 dB at 50 Hz
TREBLE: + 10 dB at 10 kHz
FM Tuner Section
(without notes 98.1 MHz, 65 dBf)
Tuning Range:
87.5 MHz — 108.0 MHz (100 kHz steps)
(U.S.A./Canada/General Export)
87.50 MHz — 108.00 MHz (50 kHz steps)
(Europe)
Usable Sensitivity (IHF):
Mono: 13.2 dBf (U.S.A./Canada/General Export)
Mono: 16.2 dBf (Europe)
50 dB Quieting Sensitivity:
Mono: 18 dBf (U.S.A./Canada/General Export)
Mono: 20 dBf (Europe)
Stereo: 38 dBf (U.S.A./Canada/General Export)
Stereo: 42 dBf (Europe)
Capture Ratio:
1.5 dB (U.S.A./Canada/General Export)
2.5 dB (Europe)
Image Rejection Ratio:
40 dB (U.S.A./Canada/General Export)
80 dB (Europe)
AM Suppression Ratio: 60 dB
RF Intermodulation Ratio: 65 dB
Total Harmonic Distortion (1 kHz):
Mono: 0.2%
Stereo: 0.4%
Frequency Response:
30 Hz — 15 kHz, +0.5/ — 1.5 dB
Stereo Separation (1 kHz): 35 dB
Signal-to-Noise Ratio:
Mono: 70 dB
Stereo: 65 dB
AM Tuner Section
Tuning Range:
530 kHz — 1,710 kHz (10 kHz steps)
(U.S.A./Canada/General Export)
522 kHz — 1,611 kHz (9 kHz steps)
(Europe)
Usable Sensitivity: 54 dB/m
Total Harmonic Distortion:
1% at 85 dB/m
Signal-to-Noise Ratio:
45 dB at 85 dB/m
Video Section
Input Sensitivity/Impedance:
1.0 Vp-p/75 ohms
Output Level/Impedance:
1.0 Vp-p/75 ohms
Frequency Response:
5 Hz — 6 MHz, — 3dB
Signal-to-Noise Ratio:
60 dB (1 kHz, HPF IN)
General
Power Requirements:
120 V AC, 60 Hz (U.S.A./Canada)
230 V AC, 50 Hz (Europe)
115/230 V AC, 50-60 Hz (General Export)
Power Consumption:
1.5 A (U.S.A./Canada)
350 W (Europe)
190 W (General Export)
AC Outlet:
Switched x 1, 100 W max. (1 A max.)
(U.S.A./Canada)
Switched x 1, 100 W max.
(Europe)
Dimensions (WxHxD):
440 x 125 x 280 mm
(17-5/16” x 4-15/16" x 11)
Weight (net): 6.2 kg (13-11/16 Ibs.)
Standard Accessories:
AM Loop Antenna x 1
FM “T” Type Antenna x 1
Remote Control Unit (UR-407) x 1
Battery (“AA”, “R06”, SUM-3) x 2
Matching Transformer (300 ohms to 75 ohms) x 1
(Europe)
* LINE means CD, VCR 1, VCR 2, AUX and TAPE.
