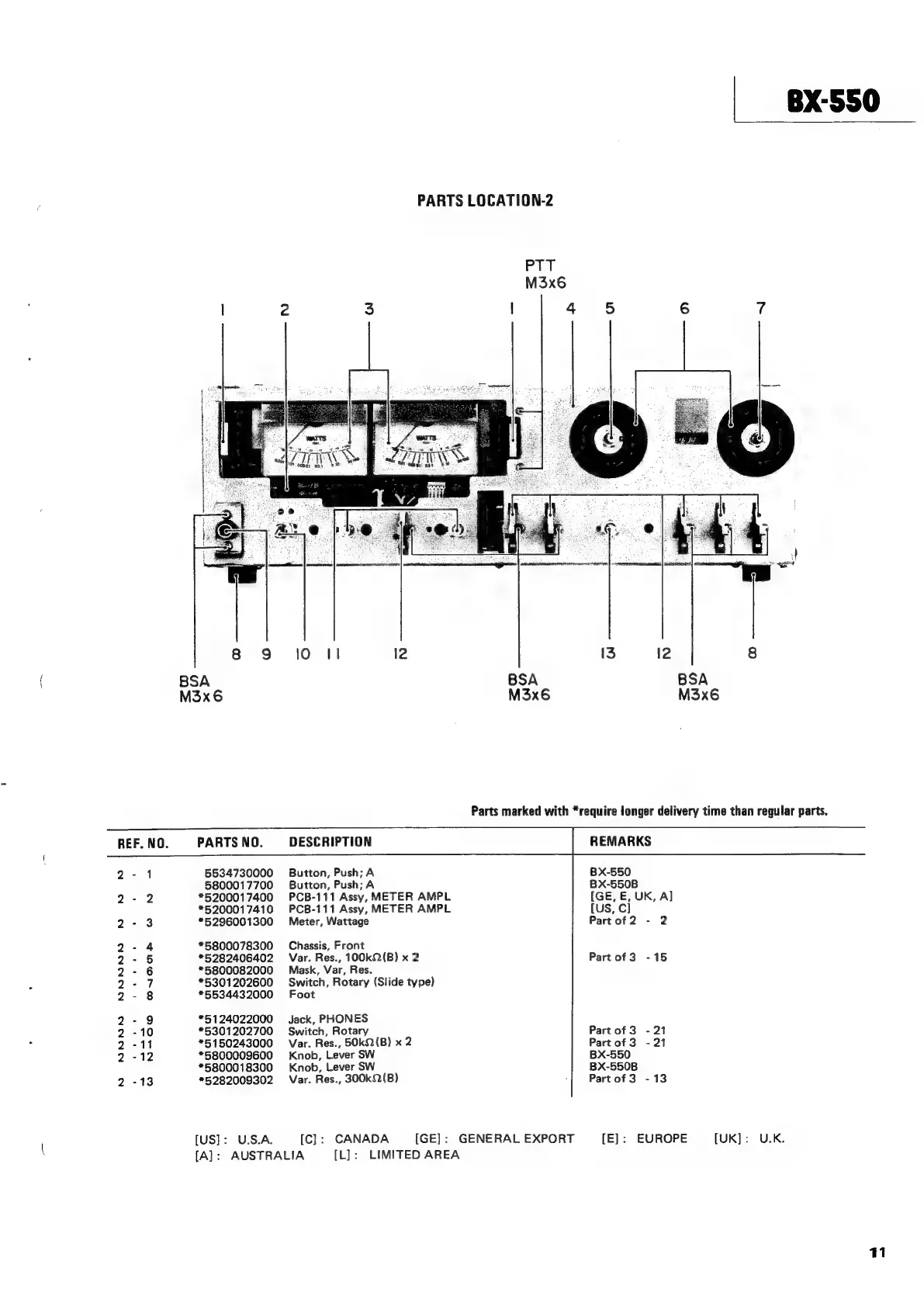

Teac BX-550 - Parts Location-2 (BX-550)

BX-550
PARTS LOCATION-2
BSA BSA BSA
M3x6 M3x6 M3x6
Parts marked with *require longer delivery time than regular parts.
PARTS NO. DESCRIPTION REMARKS
[A]: AUSTRALIA [L]: LIMITED AREA
2-1 5534730000 Button, Push; A BX-550
5800017700 Button, Push; A BX-550B
2-2 *5200017400 PCB-111 Assy, METER AMPL [GE, E, UK, A]
*5200017410 PCB-111 Assy, METER AMPL [US, C]
2-3 *5296001300 Meter, Wattage Partof2 - 2
2-4 *5800078300 Chassis, Front
2-5 *5282406402 Var. Res., 100k92(B) x 2 Part of 3 - 15
2-6 *5800082000 Mask, Var, Res.
2-7 *5301202600 Switch, Rotary (Slide type)
2-8 *5534432000 Foot
2-9 *5124022000 Jack, PHONES
2-10 *5301202700 Switch, Rotary Partof3 -21
2-11
*5150243000
Var.
Res.,
50k92.{B)
x
2
Partof3
-21
2-12 *§800009600 Knob, Lever SW BX-550
*5800018300 Knob, Lever SW BX-550B
2 *5282009302 Var. Res., 300k2.(B) Partof3 - 13
[US]: U.S.A. [C]: CANADA GENERAL EXPORT (E]: EUROPE
