Teac BX-550 - Parts Location-7 (BX-550)

BX-550

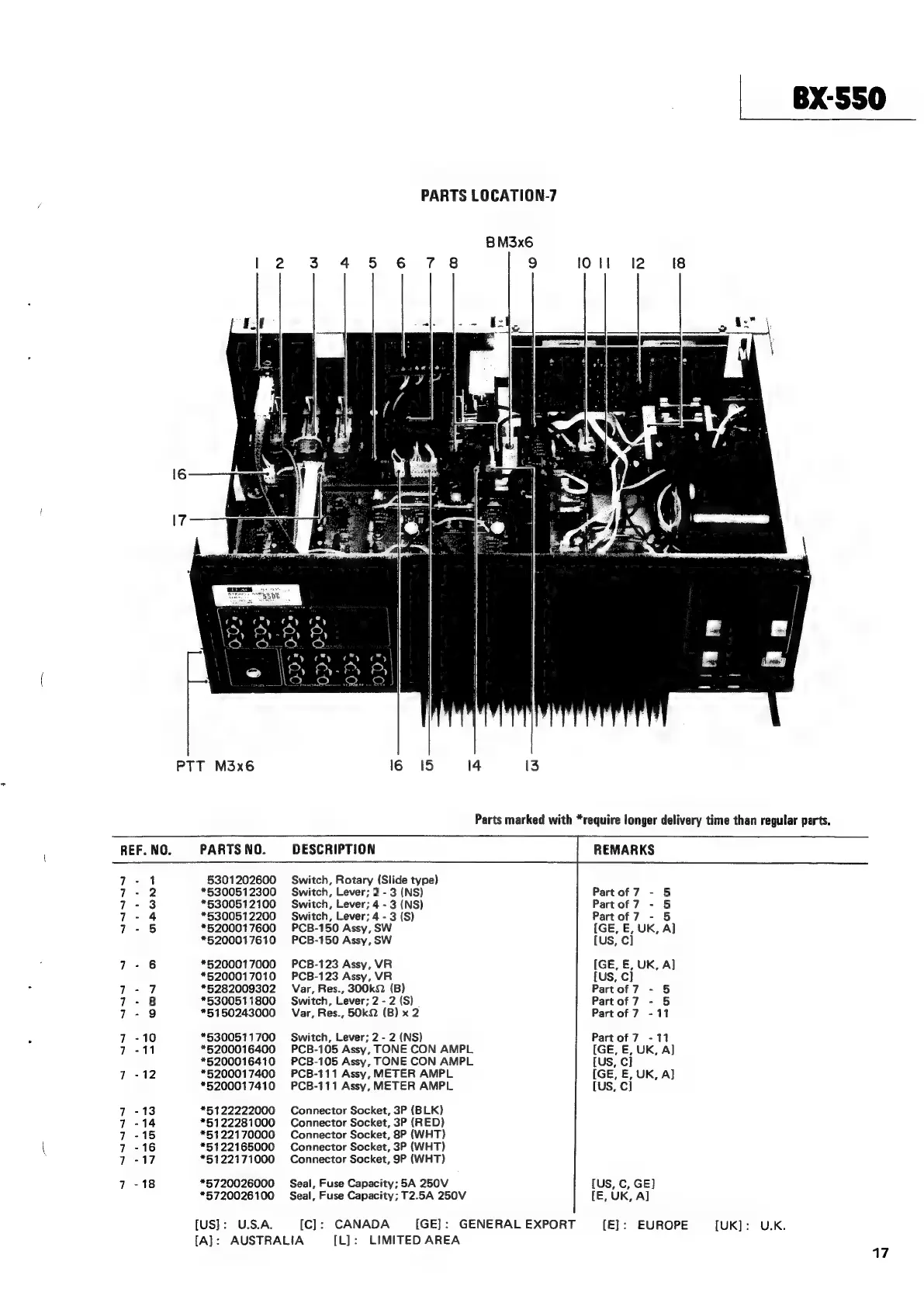

PARTS LOCATION-7
BM3x6
12 3 4 5 6 7 8 9 iOll 12 [8
16 15 14 I3
PTT M3x6
Parts marked with *require longer delivery time than regular parts.
PARTS NO.
DESCRIPTION
REMARKS
7-1 5301202600 Switch, Rotary (Slide type)
7-2 *5300512300 Switch, Lever; 2 - 3 (NS) Partof7 - 5
7-3 *§300512100 Switch, Lever; 4 - 3 (NS) Partof7 - 5
7-4 *5300512200 Switch, Lever; 4 - 3 (S) Partof7 - 5
7-5 *5200017600 PCB-150 Assy, SW {GE, E, UK, AJ
*5200017610 PCB-150 Assy, SW [US, C]
7-6 *5200017000 PCB-123 Assy, VR [GE, E, UK, A]
*5200017010 PCB-123 Assy, VR [US, C]
7-7 *5282009302 Var, Res., 300k2 (B) Partof7 - 5
7 8 *5300511800 Switch, Lever; 2 - 2 (S) Partof7 - 5
7-9 *5150243000 Var, Res., 50k (B) x 2 Part of 7 -11
7-10 *5300511700 Switch, Lever; 2 - 2 (NS) Part of 7 -11
7-11 *5200016400 PCB-105 Assy, TONE CON AMPL (GE, E, UK, A]
*5200016410 PCB-105 Assy, TONE CON AMPL [US, C]
7-12 *5200017400 PCB-111 Assy, METER AMPL (GE, E, UK, A]
*5200017410 PCB-111 Assy, METER AMPL (US, C]
7-13 *5122222000 Connector Socket, 3P (BLK)
7-14 *5122281000 Connector Socket, 3P (RED)
7 -15 *5122170000 Connector Socket, 8P (WHT)
7 -16 *5122165000 Connector Socket, 3P (WHT)
7-17 *5122171000 Connector Socket, 9P (WHT)
7 -18 *5720026000 Seal, Fuse Capacity; 5A 250V [US, C, GE]
*5720026100 Seal, Fuse Capacity; T2.5A 250V [E, UK, A]
[US]: U.S.A, [(C]: CANADA [GE]: GENERAL EXPORT (E]: EUROPE [UK]: U.K.
[A]: AUSTRALIA [L]: LIMITED AREA
17
