BX-330

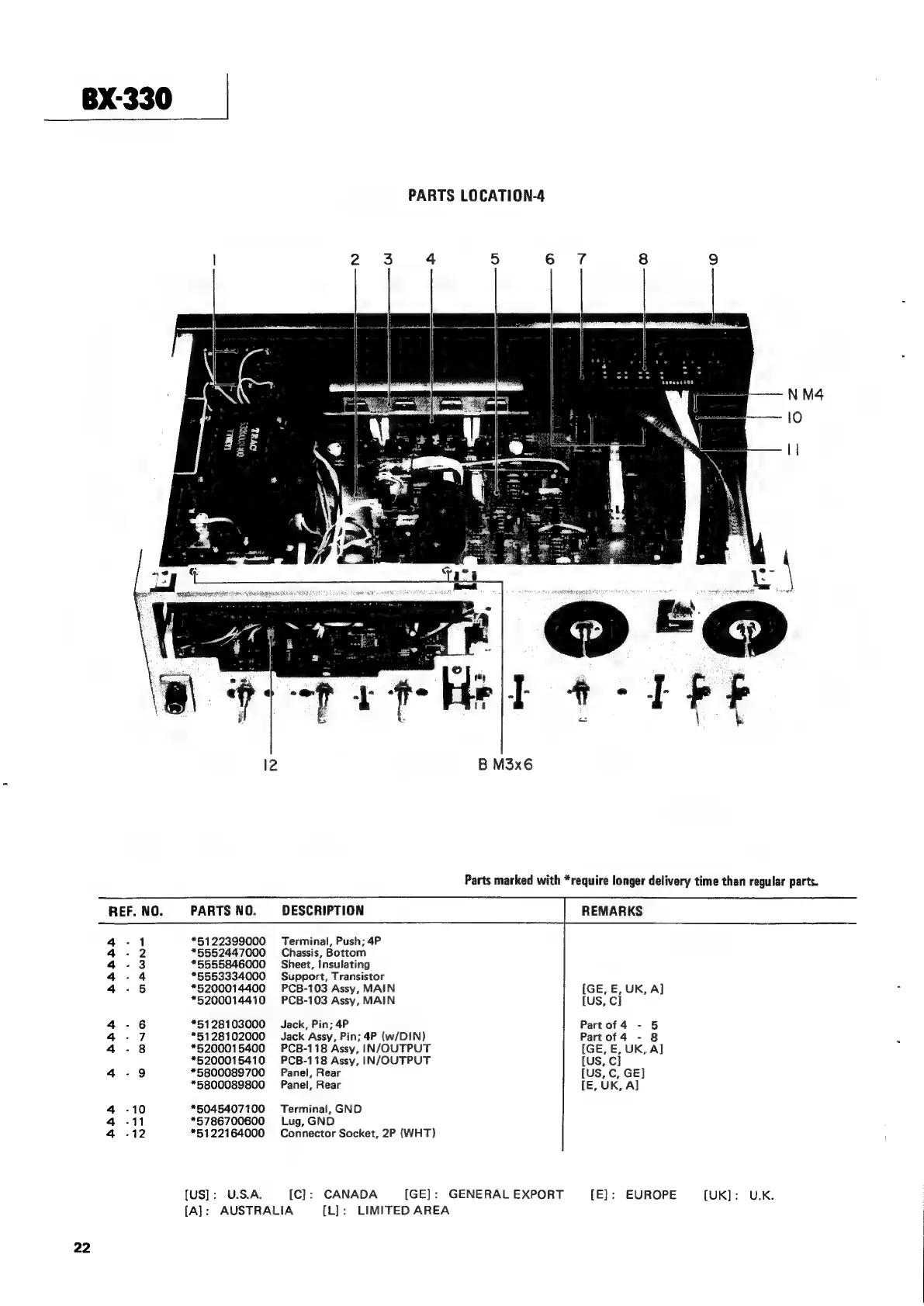

PARTS LOCATION-4
Parts marked with *require longer delivery time than regular parts.
PARTS NO. DESCRIPTION REMARKS
*5122399000 Terminal, Push; 4P
*5552447000 = Chassis, Bottom
*5555846000 Sheet, Insulating
*5553334000 Support, Transistor
AAAKADAL aAhwys
*5200014400 PCB-103 Assy, MAIN IGE, E, UK, A]
*5200014410 PCB-103 Assy, MAIN (us, C]
4-6 *5128103000 Jack, Pin; 4P Partof4 - §
4.7 *5128102000 Jack Assy, Pin; 4P (w/DIN) Partof4 - 8
4-8 *5200015400 PCB-118 Assy, IN/OUTPUT (GE, E, UK, A]
*5200015410 PCB-118 Assy, IN/OUTPUT (US, C]
4-9 *5800089700 Panel, Rear [US, C, GE]
*5800089800 Panel, Rear [E, UK, A]
4 -10 *5045407100 Terminal, GND
4 -11 *5786700600 Lug, GND
4 -12 *5122164000 Connector Socket, 2P (WHT)
[US]: U.S.A. [C}: CANADA [GE]: GENERAL EXPORT [E}: EUROPE [UK]: ULK.
[A]: AUSTRALIA {L]: LIMITED AREA
