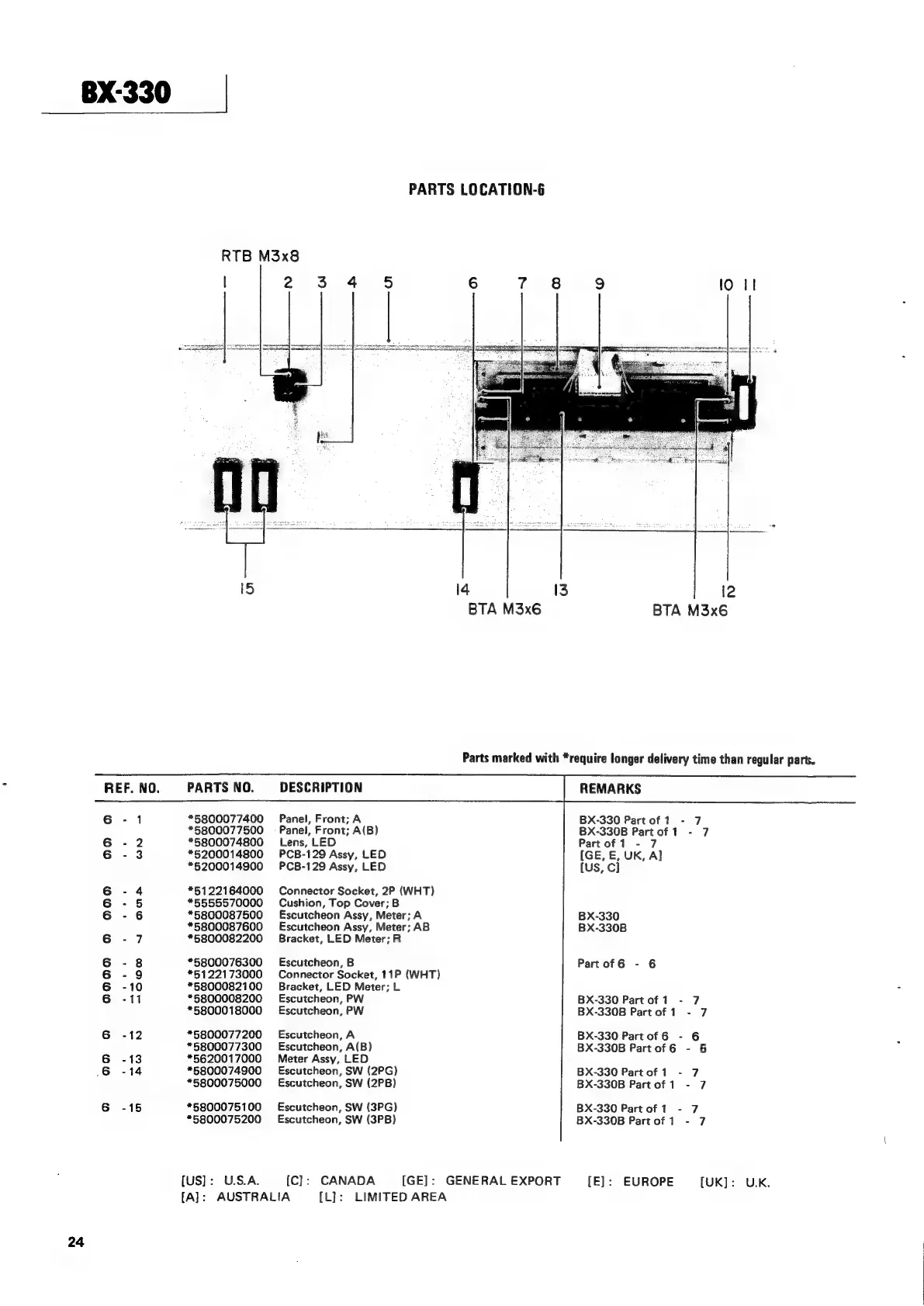

Teac BX-550 - Parts Location-6 (BX-330)

BX-330 |
PARTS LOCATION-6
RTB M3x8
BTA M3x6 BTA M3x6
Parts marked with *require longer delivery time than regular part.
REF. NO. PARTS NO. DESCRIPTION REMARKS
- 1 *5800077400 Panel, Front; A BX-330 Partof1 - 7
*5800077500 = Panel, Front; A(B) BX-330B Partof1 - 7
6 - 2 *5800074800 Lens, LED Partof1 - 7
6 - 3 *5200014800 PCB-129 Assy, LED [GE, E, UK, A]
*§200014900 PCB-129 Assy, LED (US, C]
6 - 4 *5122164000 Connector Socket, 2P (WHT)
6-5 *5555570000 Cushion, Top Cover; B
6 -6 *5800087500 Escutcheon Assy, Meter; A BX-330
*5800087600 Escutcheon Assy, Meter; AB BX-330B
6-7 *5800082200 Bracket, LED Meter; R
6 - 8 *5800076300 Escutcheon, B Partof6 - 6
6-9 “5122173000 Connector Socket, 11P (WHT)
6 -10 *5800082100 Bracket, LED Meter; L
6 -11 *5800008200 Escutcheon, PW BX-330 Part of 1 - 7
*5800018000 Escutcheon, PW BX-330B Part of 1 - 7
6 -12 *§800077200 Escutcheon, A BX-330 Part of 6 - 6
*5800077300 Escutcheon, A(B) BX-330B Partof6 - 6
6 -13 *6620017000 Meter Assy, LED
6 -14 *5800074900 Escutcheon, SW (2PG) BX-330 Partof1 - 7
*5800075000 Escutcheon, SW (2PB) BX-330B Partof1 - 7
6 -15 *§800075100 Escutcheon, SW (3PG) BX-330 Part of 1 - 7
*5800075200 Escutcheon, SW (3PB) BX-330B Partof1 - 7
[US]: U.S.A. {C]: CANADA [GE]: GENERAL EXPORT [E]: EUROPE [UK]: U.K,
[A]: AUSTRALIA [L]: LIMITED AREA
