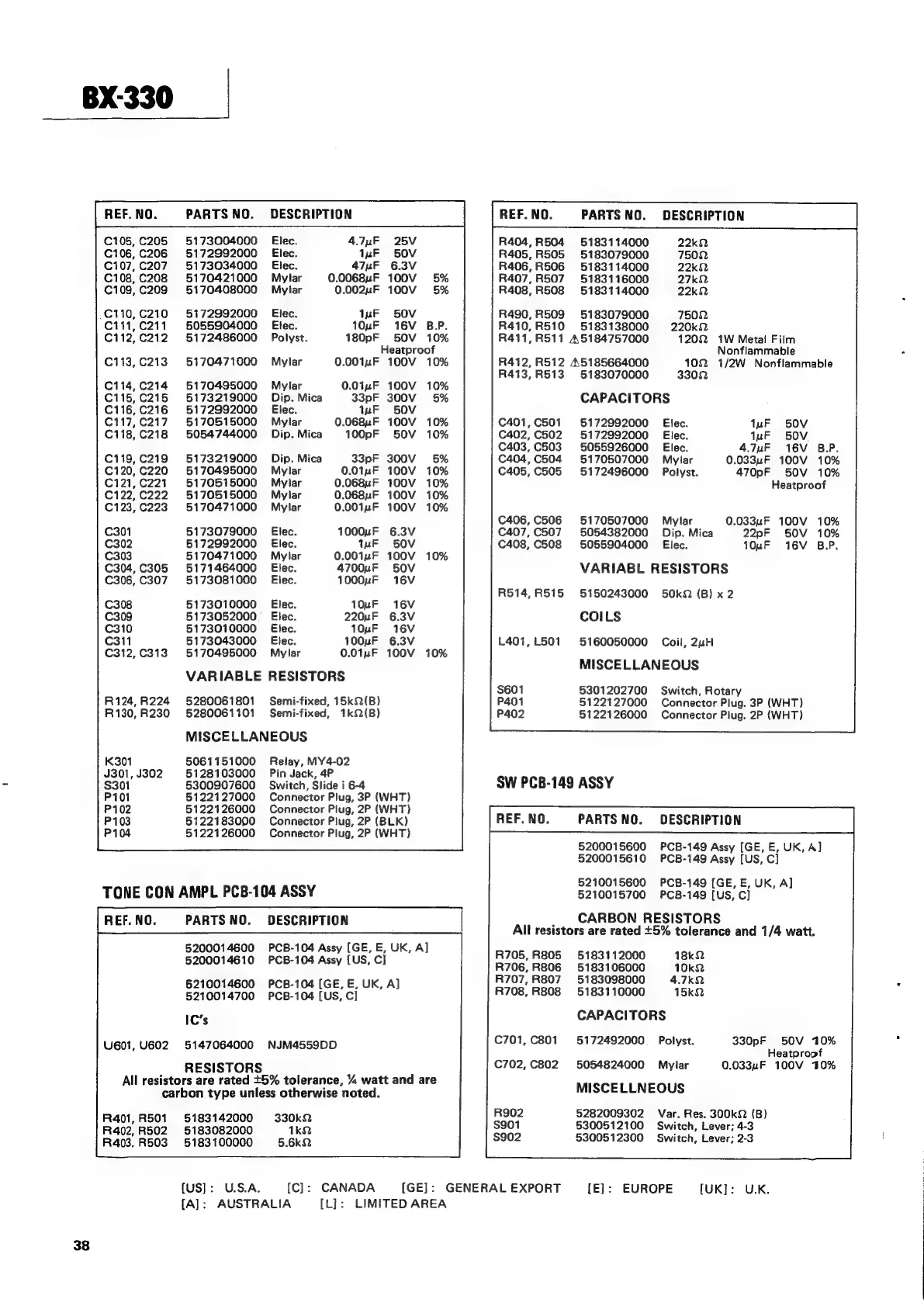

BX-330
REF. NO. PARTS NO. DESCRIPTION
REF. NO. PARTS NO. DESCRIPTION
C105,C205 5173004000 Elec. 4.7uF 25V
C106,C206 5172992000 Elec. 1yF 50V
C107,C207. 5173034000 Elec. 47uF 6.3V
C108,C208 5170421000 Mylar 0.0068uF 100V 5%
C109,C209 5170408000 Mylar 0.002uF 100V 5%
R404,R504 5183114000 22k
R405, R505 5183079000 7502
R406,R506 5183114000 22k2.
R407,R507 5183116000 27kQ
R408, R508 5183114000 22k22
C110,C210 5172992000 Elec. ipF 50V
C111,C211 5055904000 Elec. 10uF 16V BP.
C112,C212 5172486000 Polyst. 180pF 50V 10%
Heatproof
C113,C213. 5170471000 Mylar 0.001nF 100V 10%
R490,R509 5183079000 7502
R410,R510 5183138000 220kQ2
R411, R511 45184757000 1202 1W Metal Film
Nonflammable
R412, R512 A5185664000 102 1/2W Nonflammable
R413,R513 5183070000 3302
CAPACITORS
C€401,C501 5172992000 Elec. tuF 50V
C402,C502 5172992000 Elec. iF 50V.
C403,C503 5055926000 Elec. 4.7uF 16V B.P.
C404,C504 5170507000 Mylar 0.033uF 100V 10%
C405,C505 5172496000 Polyst. 470pF 50V 10%
Heatproof
C114,C214 5170495000 Mylar 0.0%uF 100V 10%
C115,C215 5173219000 Dip. Mica 33pF 300V 5%
C116,C216 5172992000 Elec. tuF 50V
C117,C217 5170515000 Mylar 0.068uF 100V 10%
C118,C218 5054744000 Dip. Mica 100pF 50V 10%
C119,C219 5173219000 Dip. Mica 33pF 300V 5%
C120,C220 5170495000 Mylar 0.01nF 100V 10%
C121,C221 5170515000 Mylar 0.068uF 100V 10%
C122,C222 5170515000 Mylar 0.068uF 100V 10%
C123, C223 5170471000 Mylar 0.001unF 100V 10%
C406,C506 5170507000 Mylar 0.033uF 100V 10%
C407,C507 5054382000 Dip. Mica 22pF SOV 10%
C408, C508 5055904000 Elec. 10uF 16V B.P.
VARIABL RESISTORS
R514,R515 5150243000 50k2 (B) x2
COILS
L401,1501 5160050000 Coil, 2uH
MISCELLANEOUS
5301202700 Switch, Rotary
5122127000 Connector Plug. 3P (WHT)
5122126000 Connector Plug. 2P (WHT)
C301 5173079000 Elec. 1000uF 6.3V
C302 5172992000 Elec. 1uF 50V
C303 5170471000 Mylar 0.001uF 100V
C304,C305 5171464000 Elec. 4700uF SOV
C306, C307 5173081000 Elec. 1000uF 16V
C308 5173010000 Elec. 10uF 16V
C309 5173052000 _ Elec. 220uF 6.3V
C310 5173010000 Elec. 10uF 16V
C311 5173043000 Elec. 100uF 6.3V
C312,C313_ 5170495000 Mylar 0.01nF 100V
VARIABLE RESISTORS
R124,R224 5280061801 Semi-fixed, 15k2(B)
R130,R230 5280061101 Semi-fixed, 1k2(B)
MISCELLANEOUS
K301 5061 aed Relay, MY4-02
J301, J302 5128103000 Pin Jack, 4P
$301 5300907600 Switch, Slide i 6-4 SW PCB-149 ASSY
P101 5122127000 Connector Plug, 3P (WHT)
P102 5122126000 Connector Piug, 2P (WHT)
P103 5122183000 Connector Plug, 2P (BLK)
P104 5122126000 Connector Plug, 2P (WHT)
REF. NO. PARTS NO. DESCRIPTION
5200015600 PCB-149 Assy [GE, E, UK, A]
5200015610 PCB-149 Assy [US, C]
5210015600 PCB- GE,E, iA
TONE CON AMPL PCB-104 ASSY s2l00le700 pGB.14e lus'G]
CARBON RESISTORS
.NO. NO. DE IPTION
REA PANTS NO SOBIenD All resistors are rated +5% tolerance and 1/4 watt.
5200014600 PCB-104 Assy [GE, E, UK, A]
5200014610 PCB-104 Assy [US, C]
6210014600 PCB-104 (GE, E, UK, A]
5210014700 PCB-104 [US, C]
IC's
W601, U602. 5147064000 NJM4559DD
RESISTORS
All resistors are rated 5% tolerance, % watt and are
carbon type unless otherwise noted.
R705, R805 5183112000 18k2
R706,R806 5183106000 10k2
R707, R807 5183098000 4.7kQ
R708, R808 5183110000 15kQ
CAPACITORS
C701, C801 5172492000 _ Polyst. 330pF 50V 10%
Heatproof
C702, C802 5054824000 Mylar 0.033uF 100V 40%
MISCELLNEOUS
5282009302 Var. Res. 300k (B)
5300512100 Switch, Lever; 4-3
5300512300 Switch, Lever; 2-3
R401,R501 5183142000 330k2
R402,R502 5183082000 1k2
R403. R503 5183100000 5.6k2
{US]: U.S.A. {[C]: CANADA [GE]: GENERAL EXPORT [E]: EUROPE [UK]: U.K.
[A]: AUSTRALIA [L}: LIMITED AREA
