Teac C-3X Service Manual

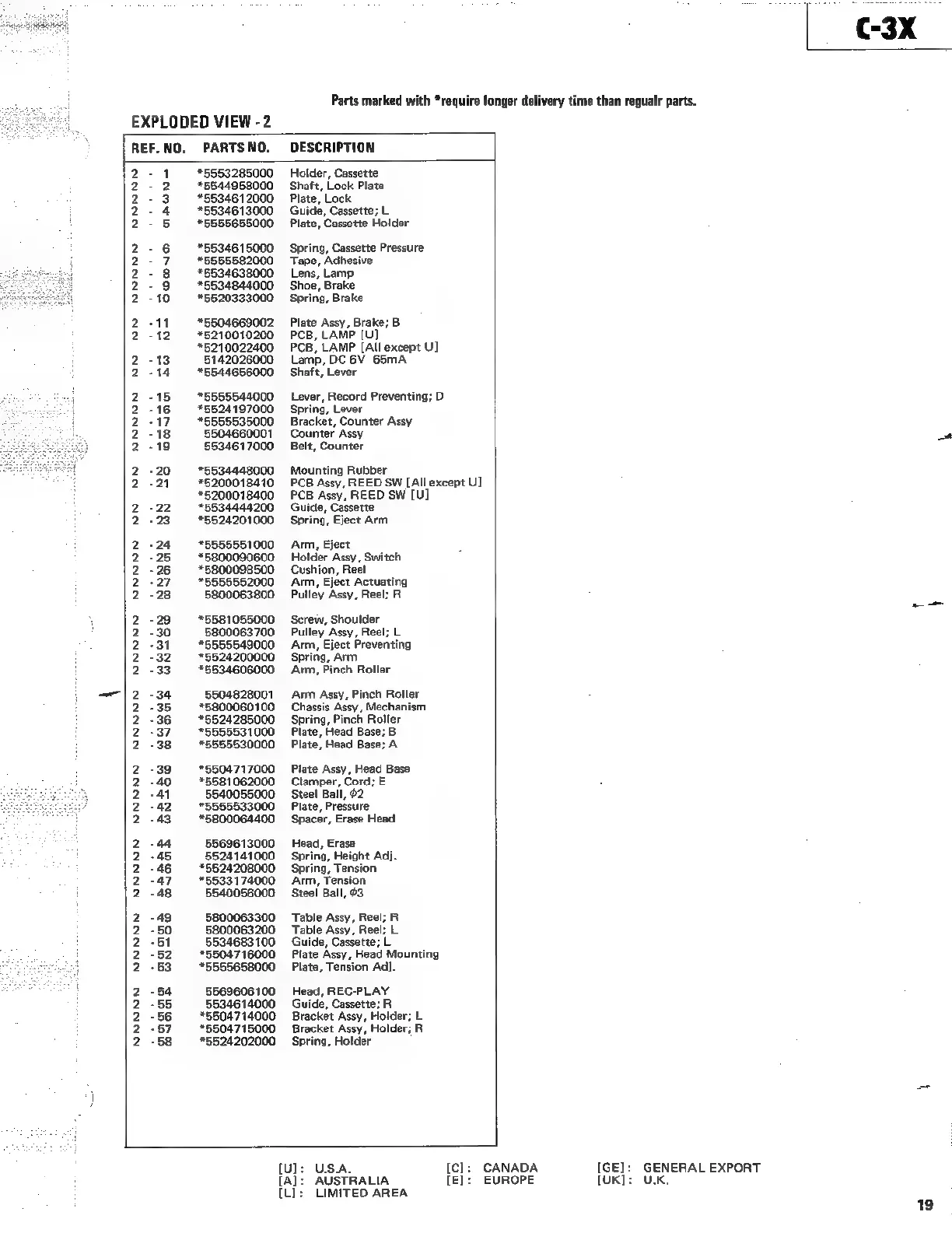

EXPLODED VIEW -2
Parts marked with *require longer delivery time than regualr parts.
REF.NO. PARTSNO. DESCRIPTION
rae ae | “5553285000 Holder, Cassette
2 + 2 *5544958000 Shaft, Lock Plate
2-3 *5534612000 Plate, Lock
2-4 *5534613000 Guide, Cassette; L
eB. *5555655000 Plate, Cassette Holder
2-6 *5534615000 Spring, Cassette Pressure
es *5555582000 Tape, Adhesive
2-8 *5534638000 Lens, Lamp
2-9 5534844000 Shoe, Brake
2-10 *5520333000 Spring, Brake
2-11 *5504669002 Plate Assy, Brake; B
2 -12 *5210010200 PCB, LAMP [U]
*5210022400 PCB, LAMP [All except U]
2 -13 5142026000 Lamp, DC 6V 65mA
2-14 “5544656000 Shaft, Lever
2-15 *5555544000 Lever, Record Preventing; D
2 -16 *5524197000 Spring, Lever
2-17 *5555535000 Bracket, Counter Assy
2 -18 5504660001 Counter Assy
2-19 5534617000 Belt, Counter
2 -20 *5534448000 Mounting Rubber
+ as *5200018410 PCB Assy, REED SW [Allexcept U]
"5200018400 PCB Assy, REED SW [U]
Pee 2 *5534444200 Guide, Cassette
2-23 5524201000 Spring, Eject Arm
2 -24 5555551000 Arm, Eject
2 26 *5800090600 Holder Assy, Switch
2 -26 *5800098500 Cushion, Reel
2-27 *5555552000 Arm, Eject Actuating
2 -28 5800063800 Pulley Assy, Reel; R
2 -29 *5581055000 Screw, Shoulder
2 -30 5800063700 Pulley Assy, Reel; L
2 -31 *5555549000 Arm, Eject Preventing
So 282 *5524200000 = Spring, Arm
2 -33 *5534606000 Arm, Pinch Roller
2 -34 5504828001 Arm Assy, Pinch Roller
2 -35 *5800060100 Chassis Assy, Mechanism
2 -36 *5524285000 Spring, Pinch Roller
2 -37 *5555531000 Plate, Head Base; B
2 -38 *5555530000 Plate, Head Base; A
2 -39 *5504717000 Plate Assy, Head Base
2 -40 *5581062000 Clamper, Cord; E
2-4 5540055000 Steel Ball, $2
2 -42 *5555533000 Plate, Pressure
2 -43 5800064400 Spacer, Erase Head
2 -44 5569613000 Head, Erase
2 -45 5524141000 Spring, Height Adj.
2 -46 *5524208000 Spring, Tension
2 -47 *5533174000 Arm, Tension
2 -48 5540056000 Steel Ball, $3.
2 -49 5800063300 Table Assy, Reel; R
2 -50 5800063200 Table Assy, Reel; L
2 -51 5534683100 Guide, Cassette; L
2 -52 *5504716000 Plate Assy, Head Mounting
2 -53 *5555658000 Plate, Tension Adj.
2 -54 5569606100 Head, REC-PLAY
2 -55 5534614000 Guide, Cassette; R
2 -56 *5504714000 Bracket Assy, Holder; L
2 -57 *6504715000 Bracket Assy, Holder; R
2 -58 5524202000 Spring, Holder
USA. [c]:
[A]: AUSTRALIA (El:
(Ll: LIMITED AREA
CANADA
EUROPE
[GE]:
[UK]:
GENERAL EXPORT
U.K.
19
