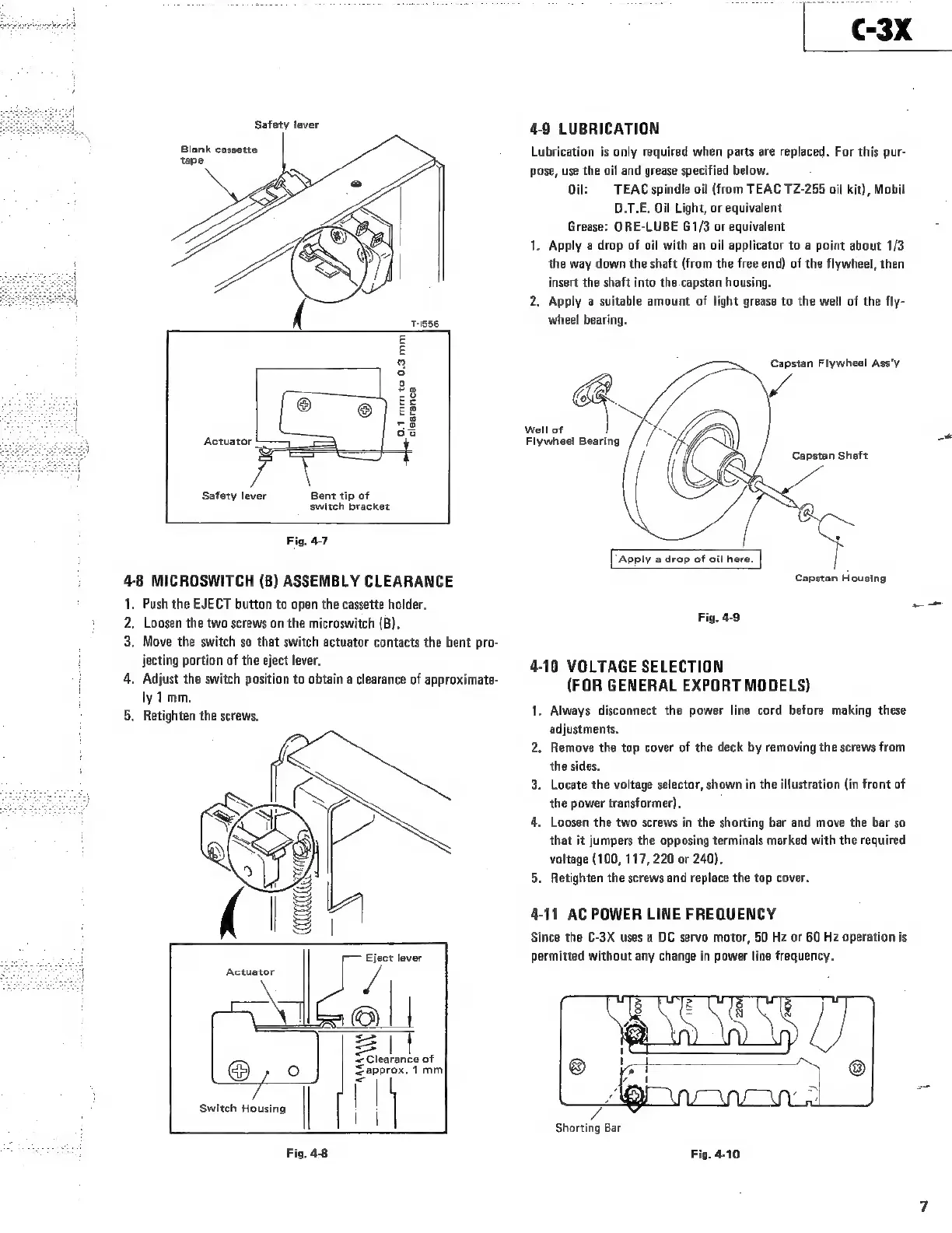

Teac C-3X Service Manual

Safety lever
Blank cassette
T1856
0.1 mm to 0.3 mm clearance
Actuator
ale
Safety lever Bent tip of
switch bracket
Fig. 4.7
4-8 MICROSWITCH (B) ASSEMBLY CLEARANCE
1. Push the EJECT button to open the cassette holder.
2, Loosen the two screws on the microswitch (B),
3. Move the switch so that switch actuator contacts the bent pro-
jecting portion of the eject lever.
4. Adjust the switch position to obtain a clearance of approximate-
ly 1mm.
5, Retighten the screws,
Clearance of
‘approx. 1 mm|
Switch Housing
Fig. 4-8
4-9 LUBRICATION
Lubrication is only required when parts are replaced. For this pur-
pose, use the oil and grease specified below.
Oil: TEAC spindle oil (from TEAC TZ-255 oil kit), Mobil
D.T.E. Oil Light, or equivalent
Grease: ORE-LUBE G1/3 or equivalent
1. Apply a drop of oil with an oil applicator to a point about 1/3
the way down the shaft (from the free end) of the flywheel, then
insert the shaft into the capstan housing.
2. Apply a suitable amount of light grease to the well of the fly-
wheel bearing.
Capstan Flywheel Assy
Well of
Flywheel Bearing
Capstan Shaft
Apply a drop of oil here.
Capstan Housing
Fig. 4.9
4-10 VOLTAGE SELECTION
(FOR GENERAL EXPORT MODELS)
1. Always disconnect the power line cord before making these
adjustments.
2. Remove the top cover of the deck by removing the screws from
the sides.
3. Locate the voltage selector, shown in the illustration (in front of
the power transformer).
4. Loosen the two screws in the shorting bar and move the bar so
that it jumpers the opposing terminals marked with the required
voltage (100, 117, 220 or 240).
5. Retighten the screws and replace the top cover.
4-11 AC POWER LINE FREQUENCY
Since the C-3X uses a DC servo motor, 50 Hz or 60 Hz operation is
permitted without any change in power line frequency.
Shorting Bar
Fig. 4-10
