Teac C-3X Service Manual

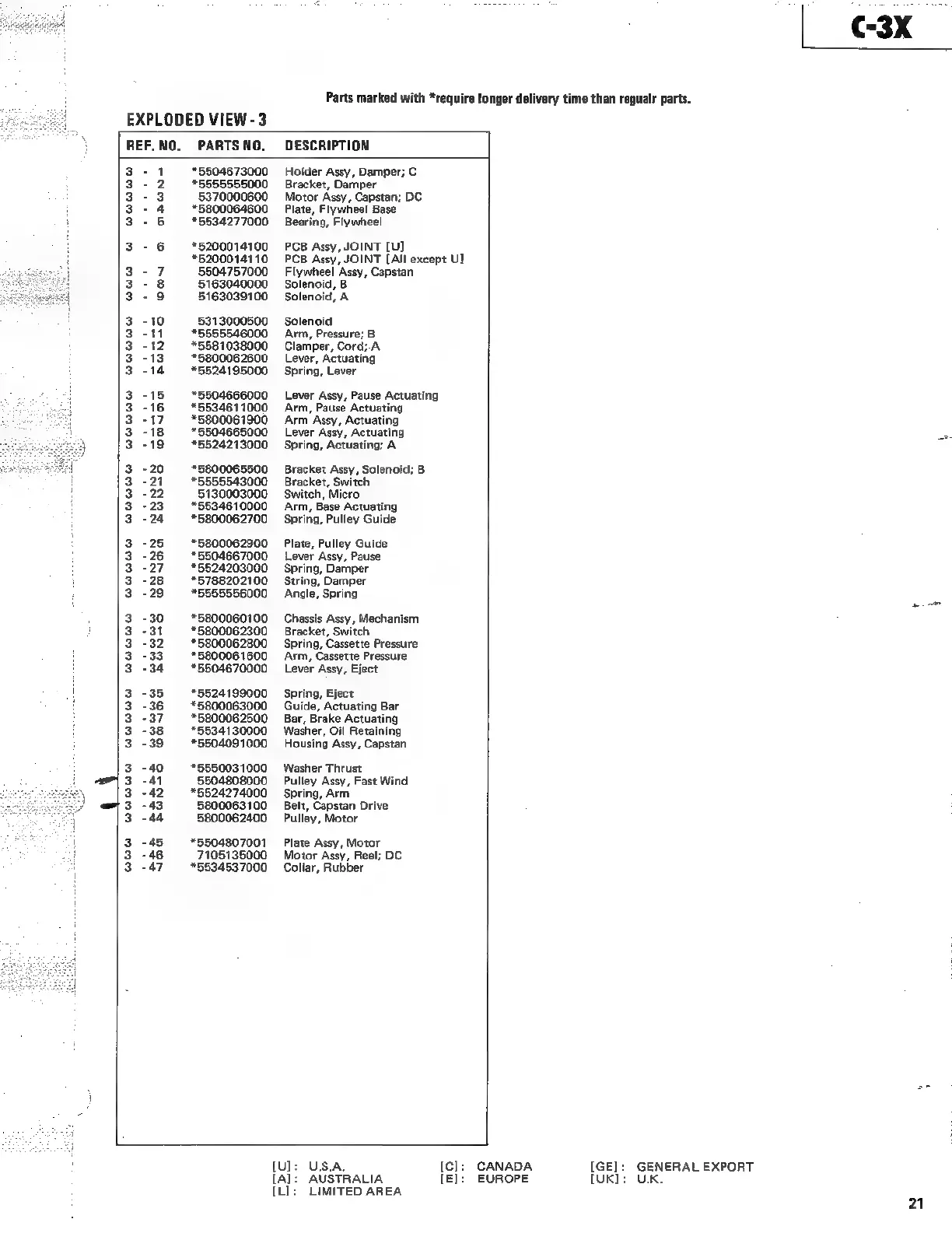

EXPLODED VIEW -3
Parts marked with *require longer delivery time than regualr parts.
REF.NO. PARTSNO. DESCRIPTION
3 - 1. *5504673000 Holder Assy, Damper; C
t eo 5 *5555555000 Bracket, Damper
3-3 5370000600 Motor Assy, Capstan; DC
3 - 4 *5800064600 Plate, Flywheel Base
3-5 *5534277000 Bearing, Flywheel
3-6 *5200014100 PCB Assy, JOINT [U]
*6200014110 PCB Assy, JOINT [All except U}
CBee 5504757000 Flywheel Assy, Capstan
3-8 5163040000 Solenoid, B
3-9 5163039100 Solenoid, A
3-10 5313000500 Solenoid
3-11 *5555546000 Arm, Pressure; B
3 -12 *5581038000 Clamper, Cord;A
3 -13 *5800062600 Lever, Actuating
3-14 *5524195000 Spring, Lever
3 -15 *5504666000 Lever Assy, Pause Actuating
3 -16 *5534611000 Arm, Pause Actuating
3-17 *5800061900 Arm Assy, Actuating
3-18 *5504665000 Lever Assy, Actuating
3-19 *5524213000 Spring, Actuating; A
3 -20 *5800065500 Bracket Assy, Solenoid; B
3-21 *5555543000 Bracket, Switch
3 -22 5130003000 Switch, Micro
3 -23 *5534610000 Arm, Base Actuating
3-24 *5800062700 Spring, Pulley Guide
3-25 *5800062900 Plate, Pulley Guide
3 -26 *5504667000 Lever Assy, Pause
3-27 *5524203000 Spring, Damper
3 -28 *5788202100 String, Damper
3 -29 *5555556000 Angle, Spring
3 -30 *5800060100 Chassis Assy, Mechanism
3-31 *5800062300 Bracket, Switch
3 -32 *5800062800 Spring, Cassette Pressure
3 -33 *5800061600 Arm, Cassette Pressure
3-34 *5504670000 _Lever Assy, Eject
3 -35 *5524199000 Spring, Eject
3 -36 *5800063000 Guide, Actuating Bar
3-37 *5800062500 Bar, Brake Actuating
3 -38 *5534130000 Washer, Oil Retaining
3 -39 *5504091000 Housing Assy, Capstan
3 -40 *5550031000 Washer Thrust
3-41 5504808000 Pulley Assy, Fast Wind
3 -42 *6524274000 Spring, Arm
3 -43 5800063100 Belt, Capstan Drive
3-44 5800062400 Pulley, Motor
3-45 *5504807001 Plate Assy, Motor
3 -46 7105135000 Motor Assy, Reel; DC
3-47 *5534537000 Collar, Rubber
[U]: U.S.A. [c]:
{A]: AUSTRALIA [El]:
(L]: LIMITED AREA
CANADA
EUROPE
[GE]:
[UK]:
GENERAL EXPORT
U.K.
21
