Teac C-3X Service Manual

| ©3x

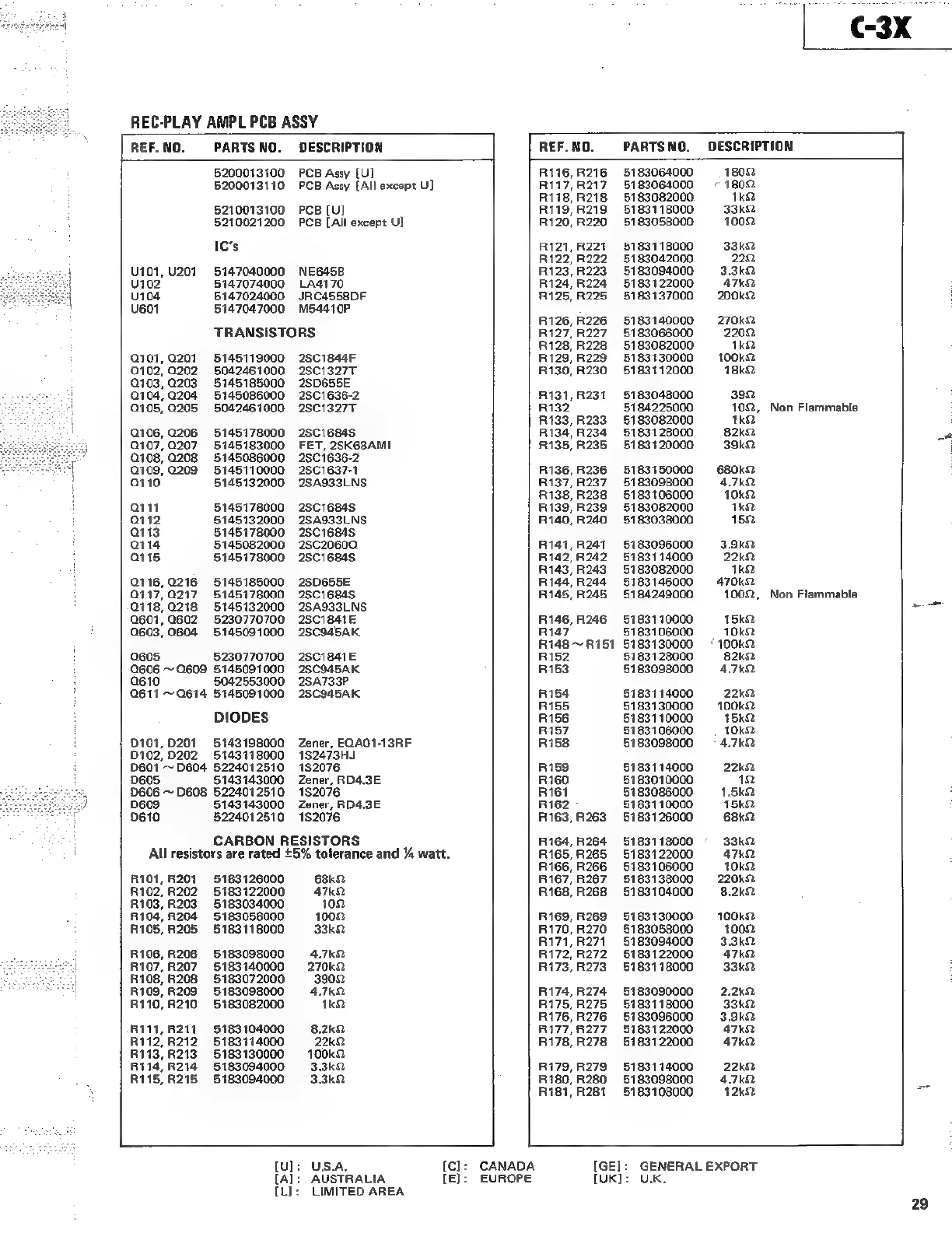

REC-PLAY AMPL PCB ASSY
REF. NO. PARTSNO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
5200013100 PCB Assy [U] R116,R216 5183064000 1802
5200013110 PCB Assy [All except U] R117,R217 5183064000 = 1802
R118,R218 5183082000 1k2
5210013100 PCB [U] R119,R219 5183118000 33k2
5210021200 PCB [All except U] R120,R220 5183058000 1002
IC's R121,R221 5183118000 33kQ
R122,R222 5183042000 229
U101, U201 5147040000 NE645B R123,R223 5183094000 3.3k2
U102 5147074000 LA4170 R124, R224 5183122000 47k
U104 5147024000 JRC4558DF R125, R225 5183137000 200k.
u601 5147047000 M54410P
R126,R226 5183140000 270k2
TRANSISTORS R127,R227 5183066000 2202
R128, R228 5183082000 1k2
Q101,0201 5145119000 2sc1844F R129,R229 5183130000 100k
Q102,0202 5042461000 2SC1327T R130, R230 5183112000 18k.
Q103,0203 5145185000 2SD65SE
: 0104/0204 5145086000 28C1636-2 R131,R231 5183048000 392
f Q105,0205 5042461000 2SC1327T R132 5184225000 102, Non Flammable
{ R433, R233 5183082000 1k2
: Q106,0206 5145178000 2sC1684s R134,R234 5183128000 82k2
Q107,0207 5145183000 FET, 2SK68AMI R135,R235 5183120000 39k
Q108,0208 5145086000 2SC1636-2
Q109,0209 5145110000 2SC1637-1 R136,R236 5183150000 680k2
a110 5145132000 2SA933LNS R137, R237 5183098000 4.7k2
R138,R238 5183106000 10k
aint 5145178000 2SC1684S R139,R239 5183082000 1k2
Qi12 5145132000 2SA933LNS R140,R240 5183038000 152.
Q113 5145178000 2SC1684S
a114 5145082000 2SC20600 R141,R241 5183096000 3.9k2
115 5145178000 2SC1684S R142,R242 5183114000 22k2.
R143, R243 5183082000 1k2
0116,0216 5145185000 2sDé655E R144,R244 5183146000 470k2
Q117,0217 5145178000 2816845 R145, R245 5184249000 — 1002, Non Flammable
Q118,0218 5145132000 2SA933LNS
601,602 5230770700 2SC1841E R146, R246 5183110000 15k
Q603,0604 5145091000 2SCc945AK R147 5183106000 10k
R148 ~R151 5183130000 — 100k2
605 5230770700 2SCi841E R152 5183128000 82k2
Q606 ~ A609 5145091000 2SC945AK R153 5183098000 4.7k2
0610 5042553000 2SA733P
0611 ~Q614 5145091000 2SC945AK R154 5183114000 22k
R155 5183130000 100k
DIODES R156 5183110000 15k
R157 5183106000 = 10k
101,0201 5143198000 Zener, EQA01-13RF R158 5183098000 4.7kQ
102,202 5143118000 1S2473HJ
0601'~ D604 5224012510 182076 R159 5183114000 22k
D605 5143143000 Zener, RD4.3E R160 5183010000 12
D606 ~ D608 5224012510 182076 R161 5183086000 1.5ks
D609 5143143000 Zener, RD4.3E R162 - 5183110000 15k
0610 5224012510 182076 R163, R263 5183126000 6Bk2
i _,_ CARBON RESISTORS R164,R264 5183118000 = 33ka
i All resistors are rated +5% tolerance and % watt. R165,R265 5183122000 47k2.
R166,R266 5183106000 10k2
R101,R201 5183126000 68k2 R167,R267 5183138000 220k2
R102, R202 5183122000 47k2 R168,R268 5183104000 8.2k2
R103, R203 5183034000 102
R104, R204 5183058000 1002 R169, R269 5183130000 100k
R105,R205 5183118000 33k2 R170,R270 5183058000 1002
R171,R271 5183094000 3.3k2
R106, R206 5183098000 4.7k2 R172,R272 5183122000 47k2
R107, R207 5183140000 270k2 R173,R273 5183118000 33k.
R108, R208 5183072000 3902
R109, R209 5183098000 4.7k2 R174, R274 5183090000 2.2k2.
R110,R210 5183082000 1k2 R175, R275 5183118000 33k.
R176,R276 5183096000 3.9k2
R111,R211 5183104000 -8.2k2 R177,R277 5183122000 47k2
R112,R212 5183114000 22k R178,R278 5183122000 47k2
R113,R213 5183130000 100k
Ri14,R214 5183094000 3.3k2 R179, R279 5183114000 22k.
R115, R215 5183094000 3.3k2 R180, R280 5183098000 4.7k2
R181, R281 5183108000 12k.
[U]: U.S.A. [Cl]: CANADA [GE]: GENERAL EXPORT
[A]: AUSTRALIA (EJ: EUROPE (UK]: U.K.
{L]: LIMITED AREA
29
