Teac C-3X Service Manual

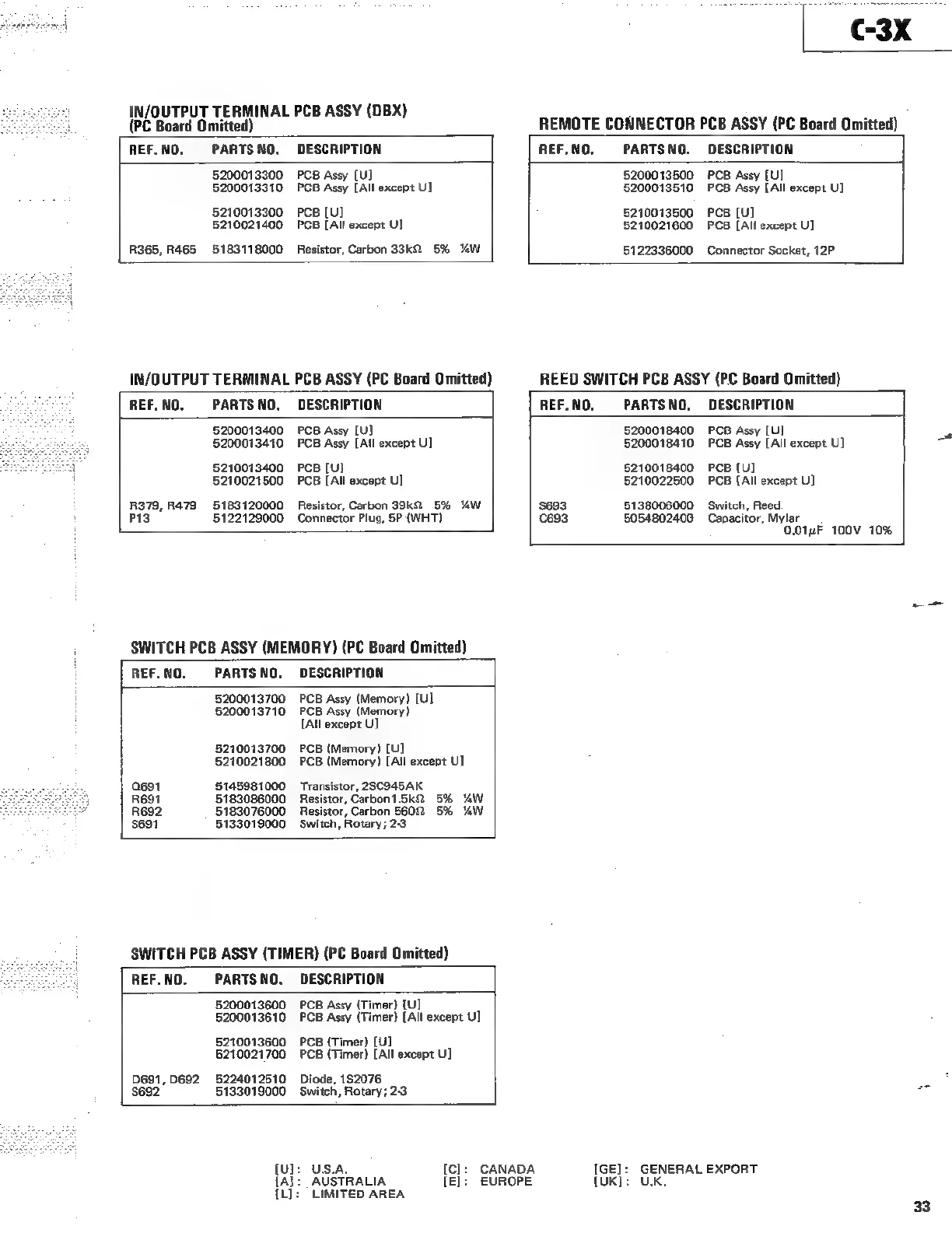

IN/OUTPUT TERMINAL PCB ASSY (DBX)
(PC Board Omitted) REMOTE CONNECTOR PCB ASSY (PC Board Omitted)
REF. NO. PARTSNO. DESCRIPTION REF, NO. PARTSNO. DESCRIPTION
5200013300 PCB Assy [U] 5200013500 PCB Assy [U]
5200013310 PCB Assy [All except U} 5200013510 PCB Assy [All except U]
5210013300 PCB [U] 5210013500 PCB [U]
5210021400 PCB [All except U] 5210021600 PCB [All except U]
R365, R465 5183118000 Resistor, Carbon 33k2 5% %W 5122336000 Connector Socket, 12P
IN/OUTPUT TERMINAL PCB ASSY (PC Board Omitted) REED SWITCH PCB ASSY (PC Board Omitted)
REF.NO. PARTSNO. DESCRIPTION | REF. NO. PARTS NO. DESCRIPTION
5200013400 PCB Assy [U] 5200018400 PCB Assy [U]
5200013410 PCB Assy [All except U] 5200018410 PCB Assy [Ail except U]
210013400 PCB [U] 5210018400 PCB [U]
5210021500 PCB [All except U] 5210022500 PCB [All except U]
R379, R479 5183120000 Resistor, Carbon 39k2 5% “AW $693 5138006000 Switch, Reed.
i P13 5122129000 Connector Plug, 5P (WHT) C693 5054802400 Capacitor,Mylar
i 0.01nF 100V 10%
SWITCH PCB ASSY (MEMORY) (PC Board Omitted)
REF. NO. PARTSNO. DESCRIPTION
i 5200013700 PCB Assy (Memory) [U]
5200013710 PCB Assy (Memory)
[All except U]
5210013700 PCB (Memory) [U]
5210021800 PCB (Memory) [All except U}
691 5145981000 Transistor, 2SC945AK
R691 5183086000 Hesistor,Carbon1.5k2 5% %W
R692 5183076000 Resistor, Carbon 5602 5% %W
$691 5133019000 Switch, Rotary; 2-3
SWITCH PCB ASSY (TIMER) (PC Board Omitted)
REF.NO. PARTSNO. DESCRIPTION
5200013600 PCB Assy (Timer) [U]
5200013610 PCB Assy (Timer) [All except U]
5210013600 PCB (Timer) [U]
5210021700 PCB (Timer) [All except U]
D691, D692 5224012510 Diode, 152076
$692 5133019000 Switch, Rotary; 2-3
{U]: USA. [C]: CANADA [GE]: GENERAL EXPORT
{A}: AUSTRALIA [E]: EUROPE (UK]: U.K.
{L]: LIMITED AREA Pa
