Connection
CAUTION:
< Read the instructions of each component you intend to use with this unit.
< Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the
signal interconnection cables together with the AC power cord or speaker cables.

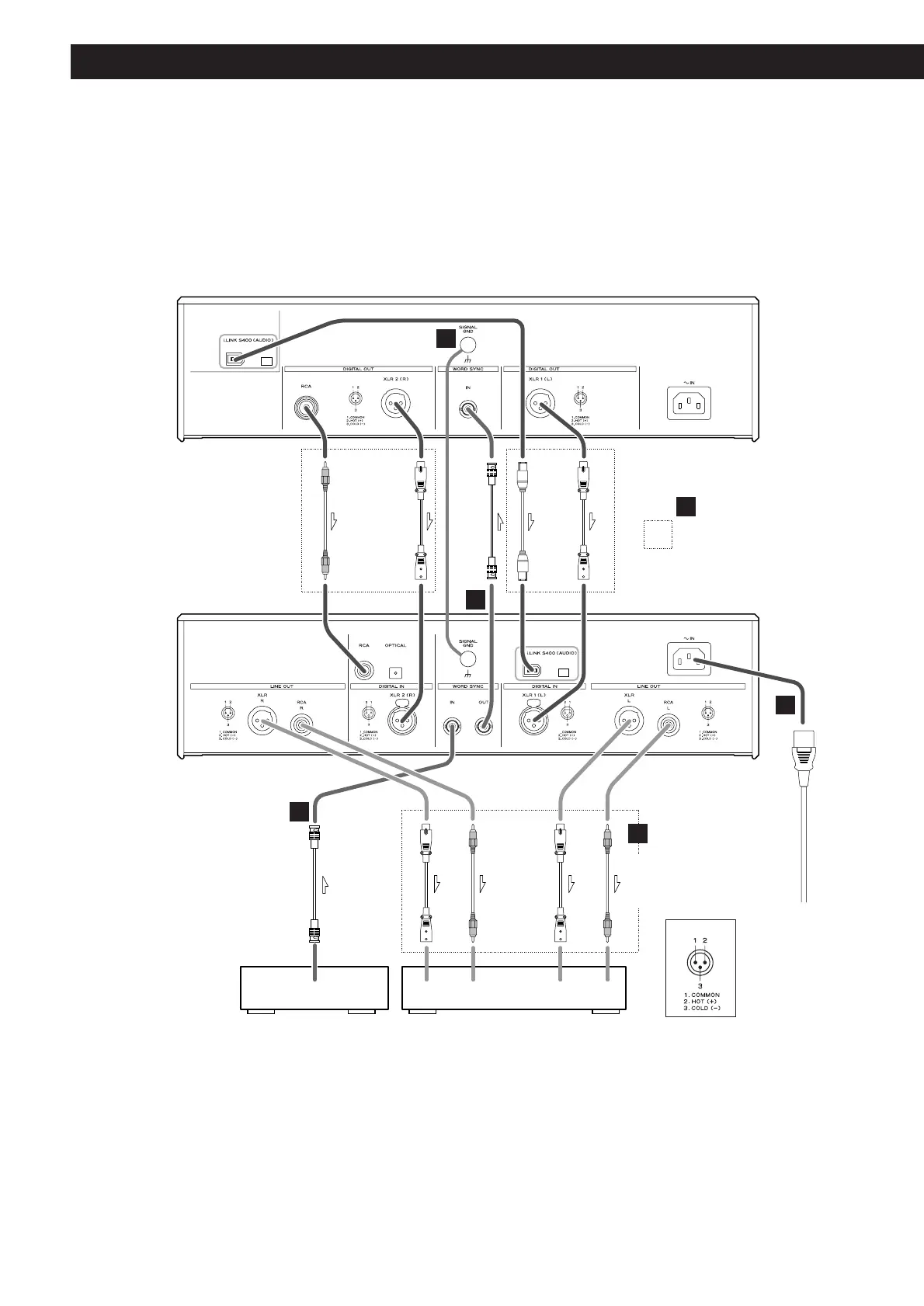

Super Audio CD/CD transport (P-05)
WORD SYNC
OUT
Clock generator
(G-0Rb/G-03X, etc.)
AUDIO IN (R) AUDIO IN (L)
D/A Converter (D-05)
Amplifier
A
B
C
C
E
D
BNC coaxial digital cable
XLR cable
RCA coaxial cable
XLR cable
RCA coaxial cable
XLR pin assignment
Audio input
terminals
BNC coaxial digital cable
XLR digital cable
i.LINK cable
XLR digital cable
RCA digital cable
Connect one or a
pair of these cables.
If the G-0Rb/G-03X is used,
connect the WORD CLOCK
OUT terminal on the G-0Rb/G-
03X to the WORD SYNC IN
terminal on the P-05.
Connect a pair of XLR
cables or RCA cables.
