Connection examples (connecting three D-05)
Setting of the P-01
Output button IEEE 1394
WORD button
IN
(When the G-0Rb is connected, “Rb
IN”)
UP CONVERT button 176.4/192
Setting of the P-03/P-05
Digital Output setting i.LINK
WORD button
ON
Setting of the D-05
INPUT button i.LINK
WORD button One of the D-05 that outputs word
synchronization signals: “OUT”
The others: “IN”
When the G-0Rb/G-03X is
connected, set all the D-05s to “IN”.
W_OUT setting 176.4 or 88.2 or 44.1
CH_SEL setting respective channels
Setting of the G-0Rb/G-03X
Frequency change button (A, B or C) 176.4 kHz or 88.2 kHz
or 44.1 kHz
FREQUENCY MODE button 44.1kHz

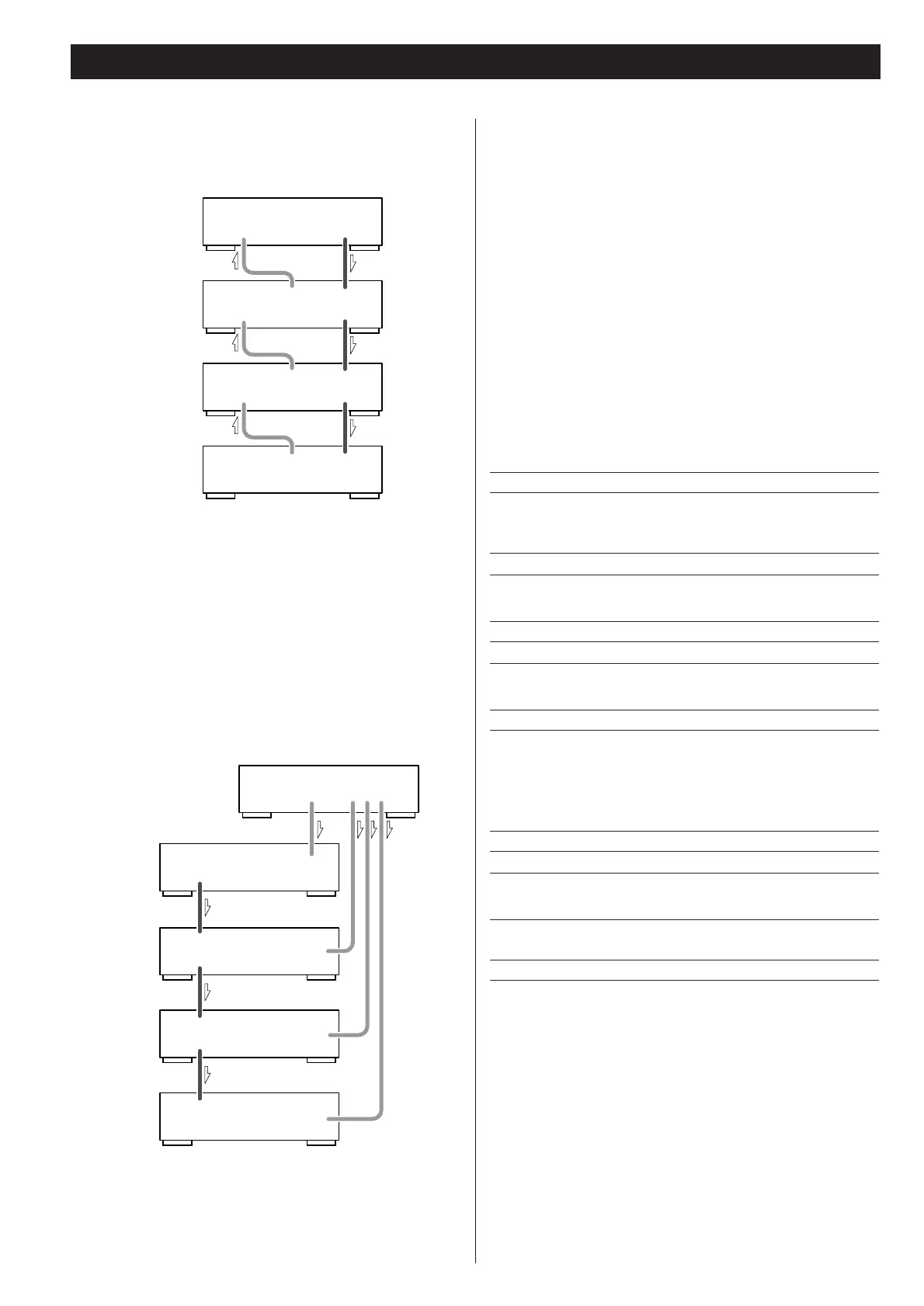

Example 1:
when no clock generator is available
Three D-05 units are required to play multi-channel Super
Audio CD or DVD audio without down-mixing.
First, connect the i.LINK (AUDIO) terminal on the Super Audio
CD transport unit (P-01/P-03/P-05) to the D-05 i.LINK (AUDIO)
terminal. Then connect the other i.LINK (AUDIO) terminal on the
D-05 to the next D-05 unit. Daisy chain the three units similarly
(in random order). Connect the Word sync terminals as shown in
example 1 (in random order).
When connecting clock generator G-0Rb/G-03X to the D-05,
connect the WORD CLOCK OUT terminals on the G-0Rb/G-03X
word clock generator to the WORD SYNC IN on each device
(example 2).
Example 2:
when a clock generator is available
