Teac NT-503 - Connections; Rear Panel Port Overview; Analog Audio Output Configuration; USB Computer Connectivity

8

LRLR
A B
G
C D
FE

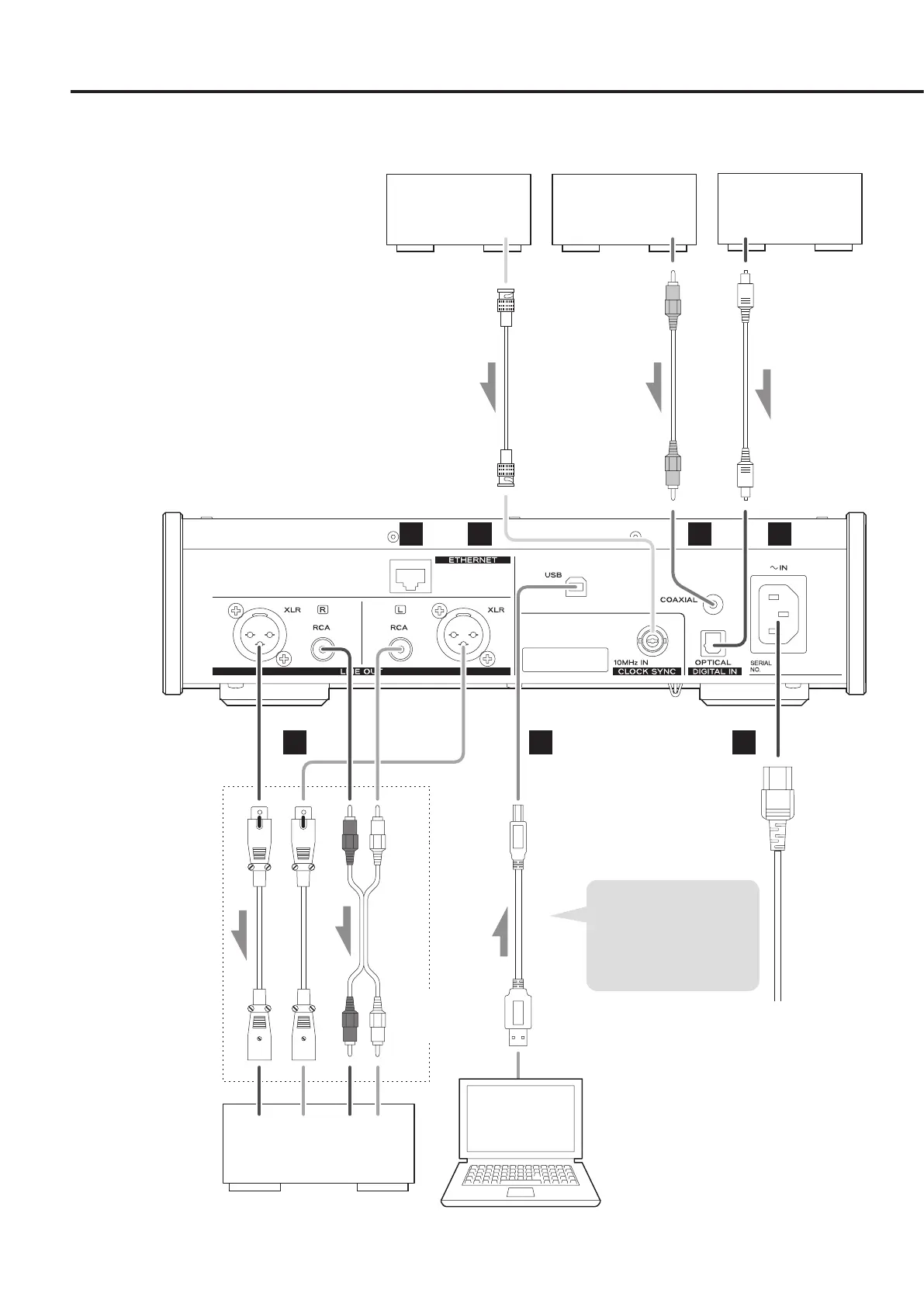

Connections
Device that outputs
clock signal
Digital audio output
device
Digital audio output
device
CLOCK SYNC OUT
DIGITAL OUT
(COAXIAL)
DIGITAL OUT
(OPTICAL)
RCA coaxial digital cable
50Ω BNC coaxial cable
Optical digital cable
RCA audio cables
XLR cables
USB cable
Included power cord
Audio input
(LINE IN, etc.)
Stereo amplifier or
powered speakers
Computer
Connect cables for the
pair set for line output
(page 21).
Sound will only be output
from the selected pair.
If headphones are
connected, sound will
stop being output from
the rear panel connectors.
The polarity of the XLR
connectors can be set so
that either 2 or 3 is HOT
(page 21).
Connect a set
of cables of one
type or the other.
If using a Windows OS,
install the dedicated driver
on the computer before
connecting this unit to it
(page 23).
c
Wall outlet
