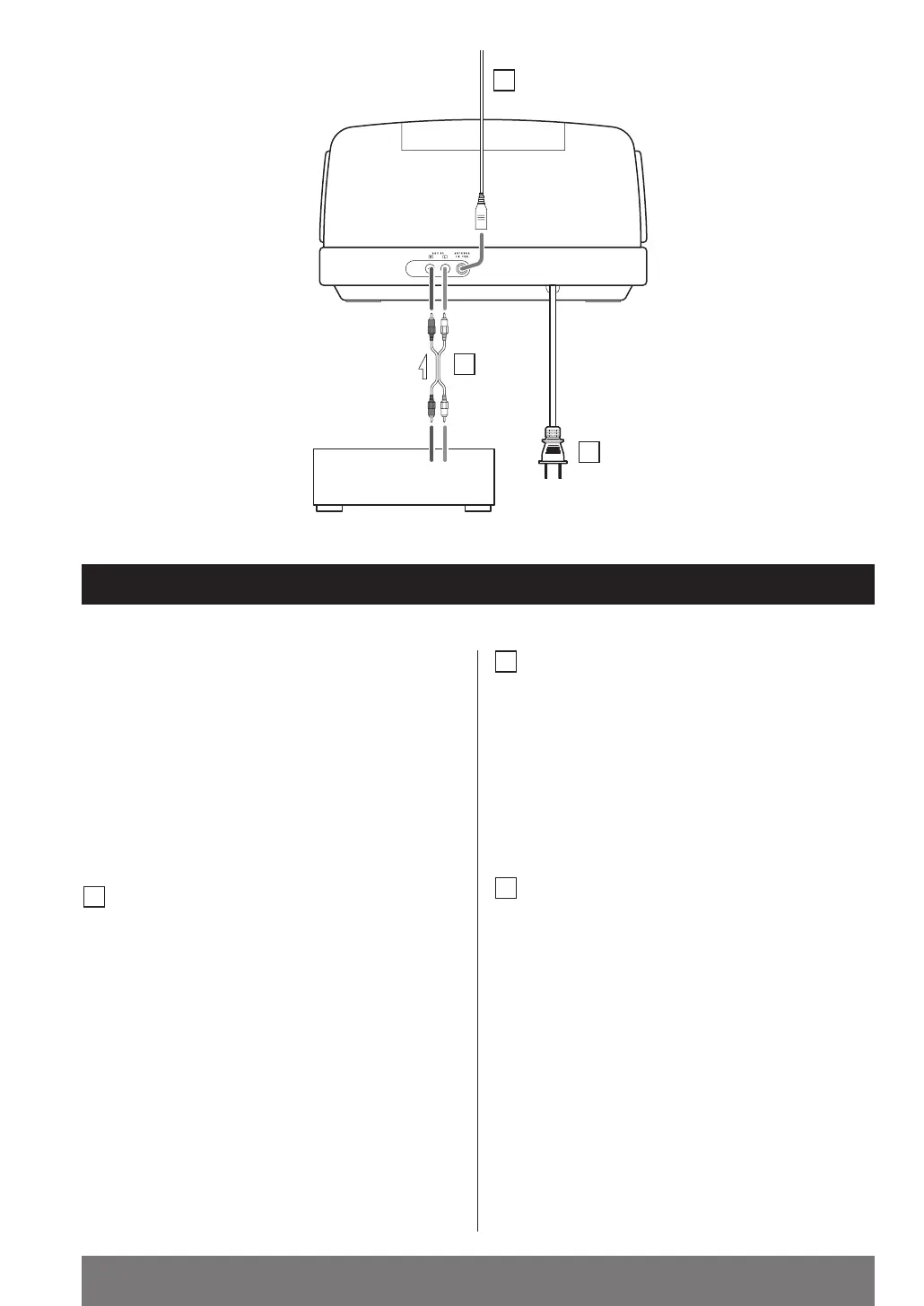

Connections
CAUTION:
<
Switch off the power to all equipment before
making connections.
<
Read the instructions of each component you
intend to use with this unit.
<
Be sure to insert each plug securely. To prevent
hum and noise, avoid bundling the signal
interconnection cables together with the AC
power cord.
FM antenna
Connect the lead-type FM antenna to the FM
antenna terminal. While in FM mode, tune in an
FM station and extend the lead to find a position
for the best reception (see page 36). This antenna
may need to be repositioned if you move your
unit to a new location.
FM Outdoor Antenna
In an area where FM signals are weak, 75-ohm
unbalanced-type outdoor FM antenna (3 elements
or more) is recommended.
<
Disconnect the FM indoor antenna when using an
outdoor antenna.
A
AUX IN jacks
You can connect a DVD player, VCR etc. to this
unit.
Connect the component with an RCA pin cord.
Make sure to connect :
white plug q
white jack (L: left channel)
red plug q
red jack (R: right channel)
AC Power Cord
Plug this AC power cord into an AC wall socket.
Be sure to connect the power cord to an AC
outlet which supplies the correct voltage.
Hold the power plug when plugging or
unplugging the power cord.
