EN
13

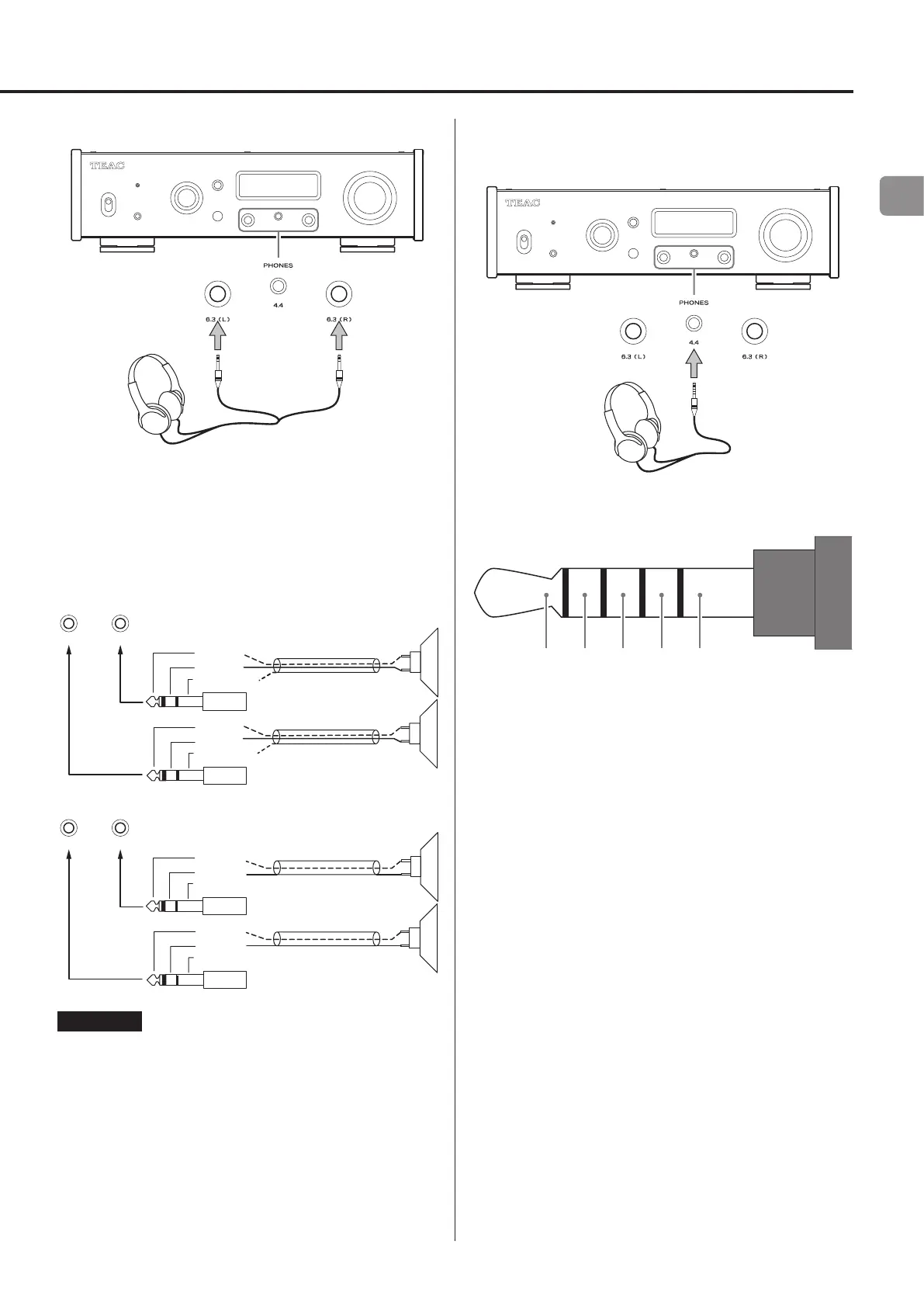

4.4mm 5-pole stereo plug
Headphones that conform to the JEITA RC-8141C standard can be
connected.
Wiring illustration
L+ L− R+ R− GND
Standard 6.3mm (1/4") stereo plugs
Connect the L headphones plug to the left jack and the R head-
phones plug to the right jack.
o The headphones plugs should be standard 6.3 mm (1/4") plugs.
Wiring illustration
The following wirings support headphones that use balanced drive.
R
+
–
PHONES
L
+
–
Tip(R+)
Ring(R−)
Sleeve(NC)
Tip(L+)
Ring(L−)
Sleeve(NC)
6.3(L)
6.3(R)
Twin-core shielded
Twin-core shielded
R
+
–
L
+
–
Tip(R+)
Ring(R−)
Sleeve(NC)
Tip(L+)
Ring(L−)
Sleeve(NC)
PHONES
6.3(L)
6.3(R)
Single-core
shielded
or parallel wiring
Single-core
shielded
or parallel wiring
ATTENTION
o Connecting a mono plug will short one side.
o When using twin-core shielded wires, do not connect the shields
to the headphones.
