Teac UD-505 - Connections (Front Panel); Digital Audio Input (OPT;COAX IN)

10

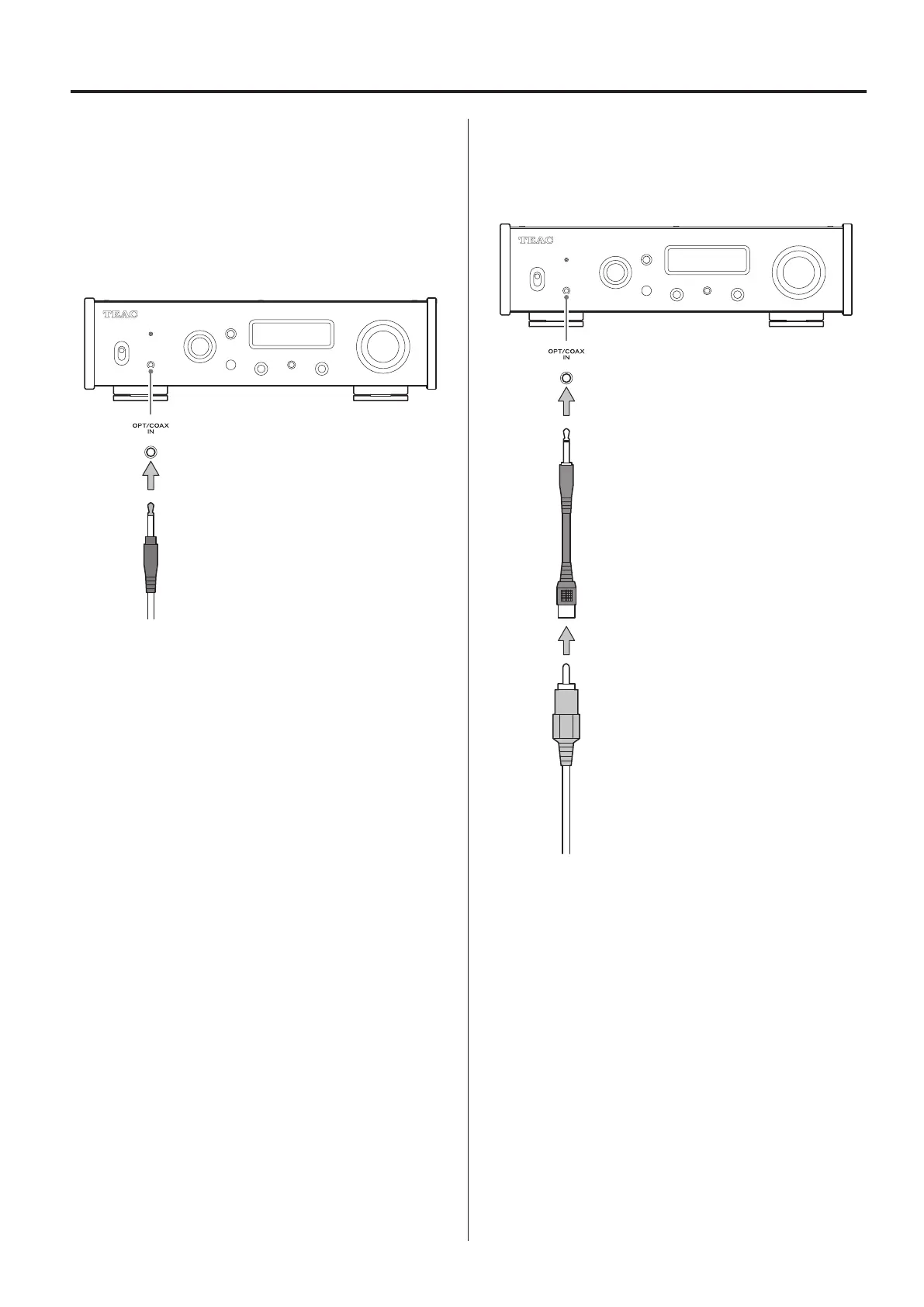

Connections (front panel)
Digital audio input (OPT/COAX IN)
This input connector can be used for both optical (OPT) and coaxial
(COAX) connections.
Optical (OPT) connection
Use a commercially-available optical cable with a mini plug.
To enable this input, turn the INPUT knob to select OPTICAL2.
Optical mini plug
Coaxial (COAX) connection
Use the included RCA conversion cable and a commercially-
available RCA coaxial digital cable.
To enable this input, turn the INPUT knob to select COAXIAL2.
RCA conversion cable
RCA coaxial digital cable
