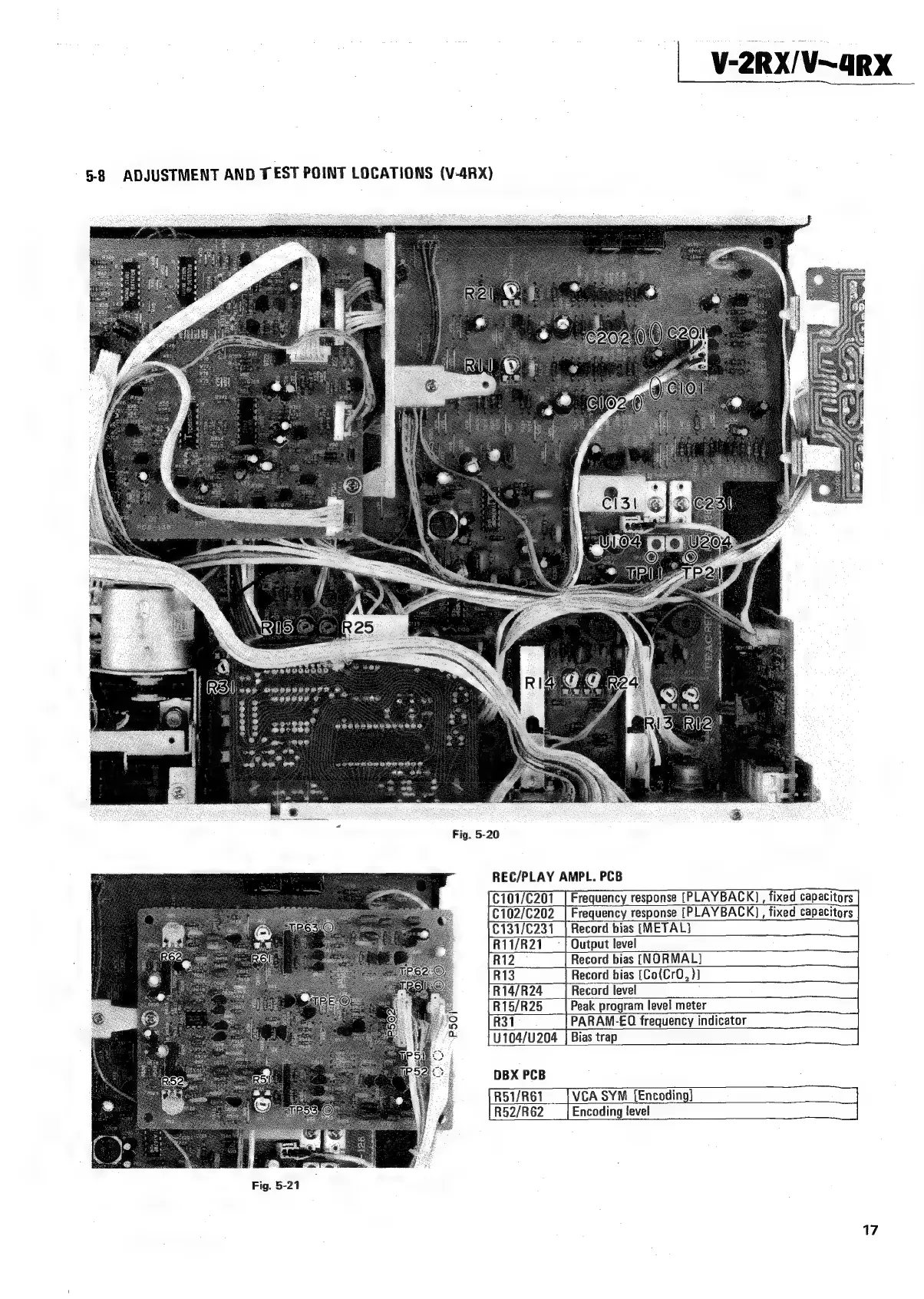

5-8 ADJUSTMENT AND TEST POINT LOCATIONS (V-4RX)
meee. 2
bd s
RES ER HES SS ETo we
pees o e 8 @ see 3B ke
2 eo
aan t &@ Pt ads
PEHHOOHERE HSH
SF FORS SBE OBES
48 6H 0
Fig. 5-20
REC/PLAY AMPL. PCB
€101/€201 | Frequency response [PLAYBACK], fixed capacitors
€102/C202 | Frequency response [PLAYBACK], fixed capacitors
€131/C231 | Record bias [METAL]
R11/R21 — | Output level
R12 Record bias [NORMAL]
R13 Record bias [Co(CrO, }]
R14/R24 Record level
R15/R25 Peak program level meter
R31 PARAM-EO frequency indicator
U104/U204 | Bias trap
DBX PCB
R51/R61_ _| VCA SYM [Encoding]
R52/R62__| Encoding level
