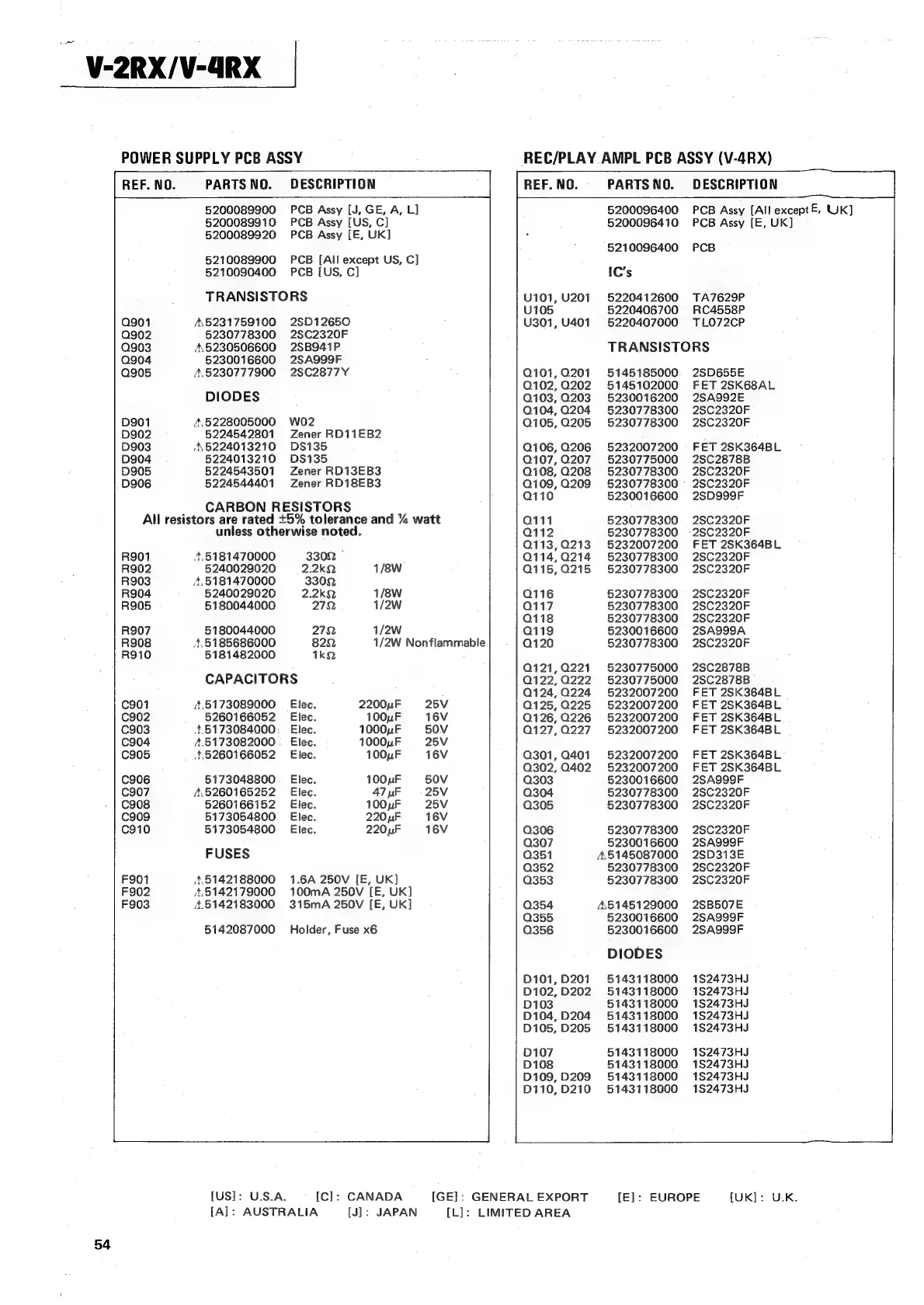

Teac V-2RX - Power Supply PCB Component List; REC;PLAY Amplifier PCB Component List (V-4 RX)

~ V-2RX/V-4RX
POWER SUPPLY PCB ASSY
REC/PLAY AMPL PCB ASSY (V-4RX)
REF. NQ. PARTS NO. DESCRIPTION PARTS NO. DESCRIPTION
5200089900 PCB Assy [J, GE, A, L] 5200096400 PCB Assy [All exceptE, UK]
5200089910 PCB Assy [US, C] 5200096410 PCB Assy [E, UK]
5200089920 PCB Assy [E, UK]
5210096400 PCB
5210089900 PCB [All except US, C]
5210090400 PCB [US, C] IC’s
TRANSISTORS U101, U201 5220412600 TA7629P
U105 5220406700 RC4558P
Q901 A5231759100 2SD12650 U301, U401 5220407000 TLO72CP
a902 5230778300 2SC2320F
Q903 A5230506600 2SB941P TRANSISTORS
Q904 5230016600 2SA999F
Q905 4,5230777900 2SC2877Y Q101,0201 5145185000. 2SD655E
Q102,0202 5145102000 FET 2SK68AL
DIODES Q103, Q203 5230016200 2SA992E
0104,0204 5230778300 2SC2320F
D901 4,5228005000 WO02 Q105,0205 5230778300 2SC2320F
D902 5224542801 Zener RD11EB2
D903 45224013210 DS135 Q106,0206 5232007200 FET 2SK364BL
D904 5224013210 DS135 0Q107,Q207 5230775000 2SC2878B
D905 5224543501 Zener RD13EB3 Q108, Q208 5230778300 2SC2320F
D906 5224544401 Zener RD18EB3 Q109,Q209 5230778300 2SC2320F
Q110 5230016600 2SD999F
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt Q111 5230778300 2SC2320F
unless otherwise noted. Q112 5230778300 -2SC2320F
. Q113,Q213 5232007200 FET 2SK364BL
R901 4,5181470000 3302 Q114,Q214 5230778300 2SC2320F
R902 5240029020 2.2kQ 1/8W Q115,0215 5230778300 2SC2320F
R903 4.5181470000 3302,
R904 5240029020 2.2k2 1/8W 0116 5230778300 2SC2320F
R905 5180044000 272 1/2W 0117 5230778300 2SC2320F
Q118 5230778300 2SC2320F
R907 5180044000 272 1/2W Q119 5230016600 2SA999A
R908 .4,5185686000 822, 1/2W Nonflammable Q120 5230778300 2SC2320F
R910 5181482000 1kQ
i Q121,Q221 5230775000 2SC2878B
CAPACITORS Q122,Q222 5230775000 2SC2878B°
Q124,Q224 5232007200 FET 2SK364BL
c901 4.5173089000 Elec. 2200uF 25V Q125,0225 5232007200 FET 2SK364BL
cg9g02 5260166052 Elec. 100uF 16V Q126,Q226 5232007200 FET 2SK364BL
C903 45173084000 _ Elec. 1000uF 50V Q127,Q227 5232007200 FET 2SK364BL
C904 45173082000 _ Elec. 1000uF 25V
cg905 45260166052 Elec. 100uF 16V Q301, 0401 5232007200 FET 2SK364BL
Q302, 0402 5232007200 FET 2SK364BL
C906 5173048800 _ Elec. 100 uF 50V Q303 5230016600 2SA999F
C907 4,:5260165252 Elec. 47 uF 25V Q304 5230778300 2SC2320F
c908 5260166152 Elec. 100 uF 25V Q305 5230778300 2SC2320F
cg909 5173054800 _ Elec. 220 yF 16V
c910 5173054800 Elec. 220 uF 16V Q306 5230778300 2SC2320F
Q307 5230016600 2SA999F
FUSES Q351 45145087000 2SD313E
Q352 5230778300 2SC2320F
F901 45142188000 1.6A 250V [E, UK] Q353 5230778300 2SC2320F
F902 45142179000 100mA 250V [E, UK]
F903 45142183000 315mA 250V [E, UK] 0354 45145129000 2SB507E
Q355 5230016600 2SA999F
5142087000 Holder, Fuse x6 Q356 5230016600 2SA999F
DIODES
D101,D201 5143118000 1S82473HJ
D102,D202 5143118000 1S82473HJ
D103 5143118000 1S2473HJ
D104,D204 5143118000 1S2473HJ
D105,D205 5143118000 1S82473HJ
D107 5143118000 1S2473HJ
D108 5143118000 1S2473HJ
D109,D209 5143118000 1S82473HJ
D110,D210 5143118000 182473HJ
[US]: U.S.A. {C]: CANADA [GE]: GENERAL EXPORT [E]: EUROPE {UK]: U.K.
[Al: AUSTRALIA [J]: JAPAN [L]: LIMITED AREA
54
