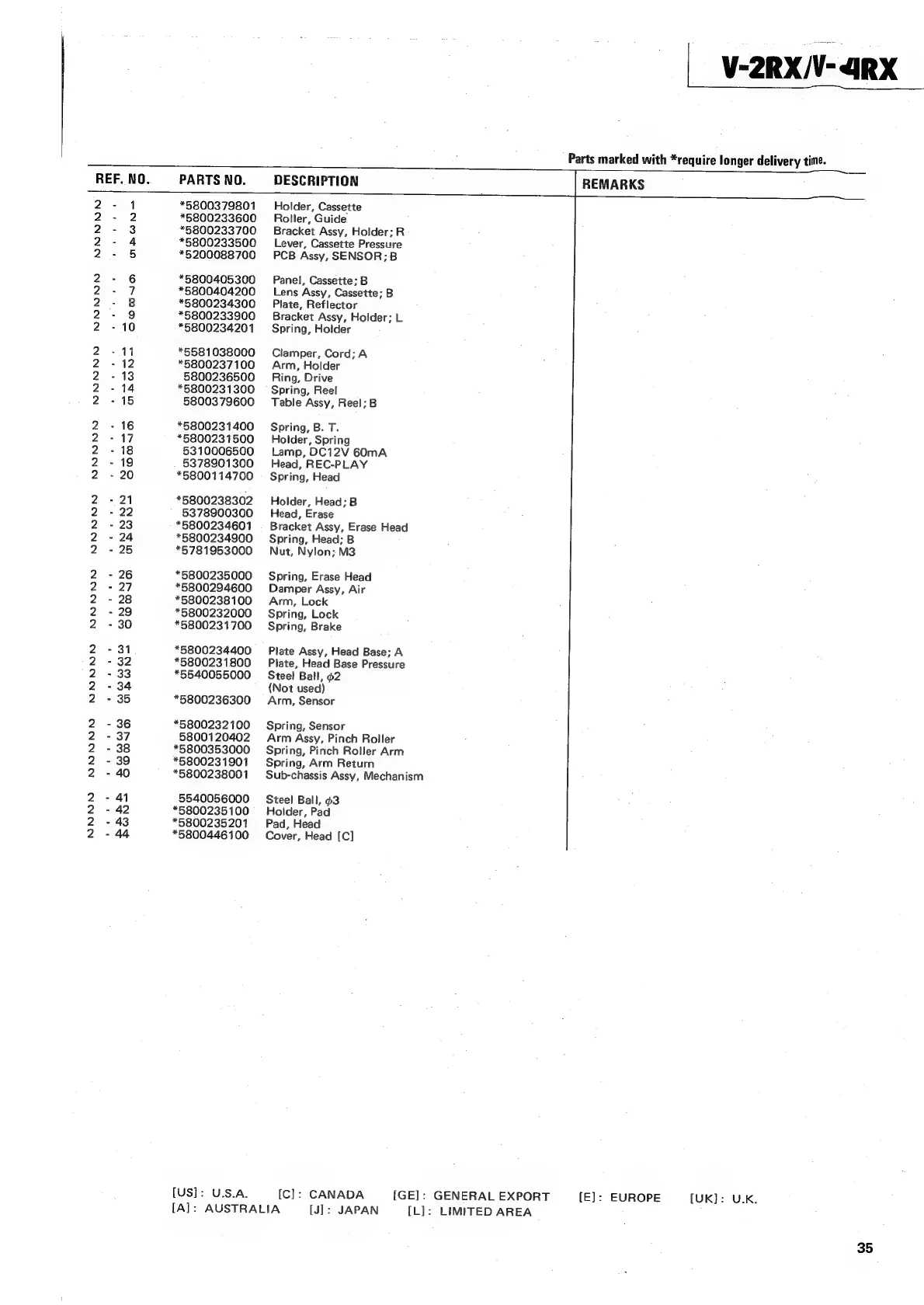

Teac V-2RX - Exploded View 2 - V-2 RX Parts List

REF. NO. PARTS NO. DESCRIPTION
2-1 *5800379801 Holder, Cassette
2 - 2 *5800233600 Roller, Guide
2-3 *5800233700 Bracket Assy, Holder: R
2-4 *5800233500 Lever, Cassette Pressure
2 5 *§200088700 PCB Assy, SENSOR;B
2 - 6 *5800405300 ‘Panel, Cassette; B
2 = 3 *5800404200 Lens Assy, Cassette; B
2 - 8 *5800234300 ‘Plate, Reflector
2-9
*5800233900
Bracket
Assy,
Holder;
L
2 - 10 *5800234201 Spring, Holder
2 11 *5581038000 Clamper, Cord;A
2 -12 *§800237100 Arm, Holder
2 - 13 5800236500 ‘Ring, Drive
2-14 *5800231300 Spring, Reel
2 - 15 5800379600 Table Assy, Reel; B
2 - 16 *5800231400 Spring, B. T.
2-17 *5800231500 Holder, Spring
2 - 18 5310006500 Lamp, DC12V 60mA
2 - 19 5378901300 Head, REC-PLAY
2 - 20 *§800114700 — Spring, Head
2-21 *5800238302 Holder, Head; B
2 -22 5378900300 Head, Erase
2 - 23 *5800234601 . Bracket Assy, Erase Head
2 - 24 *6800234900 = Spring, Head; B
2 - 25 *5781953000 Nut, Nylon; M3
2 - 26 *6800235000 Spring, Erase Head
2 - 27 *5800294600 Damper Assy, Air
2 - 28 *6800238100 Arm, Lock
2 - 29 *§800232000 Spring, Lock
2 - 30 *§800231700 Spring, Brake
2
-
31
*5800234400
Plate
Assy,
Head
Base;
A
2
-
32
*5800231800
Plate,
Head
Base
Pressure
2 - 33 *5540055000 = Steel Ball, 62
2 - 34 (Not used)
2 - 35 *5800236300 Arm, Sensor
2 - 36 *5800232100 Spring, Sensor
2 - 37 5800120402 Arm Assy, Pinch Roller
2 - 38 *5800353000 Spring, Pinch Roller Arm
2 - 39 *5800231901 Spring, Arm Return
2
-
40
*5800238001
Sub-chassis
Assy,
Mechanism
2 - 41 5540056000 = Steel Ball, 43
2 - 42 *§800235100 Holder, Pad
2 -43 *5800235201 Pad, Head
2 - 44 *5800446100 Cover, Head [C]
[US]: U.S.A. [C]: CANADA
Parts marked with *require longer delivery tine.
REMARKS
[A]: AUSTRALIA
[J]: JAPAN
[GE]: GENERAL EXPORT
[L]: LIMITED AREA
(E}:
EUROPE
[UK]: U.K.
V-2RX/V- 4RX
35
