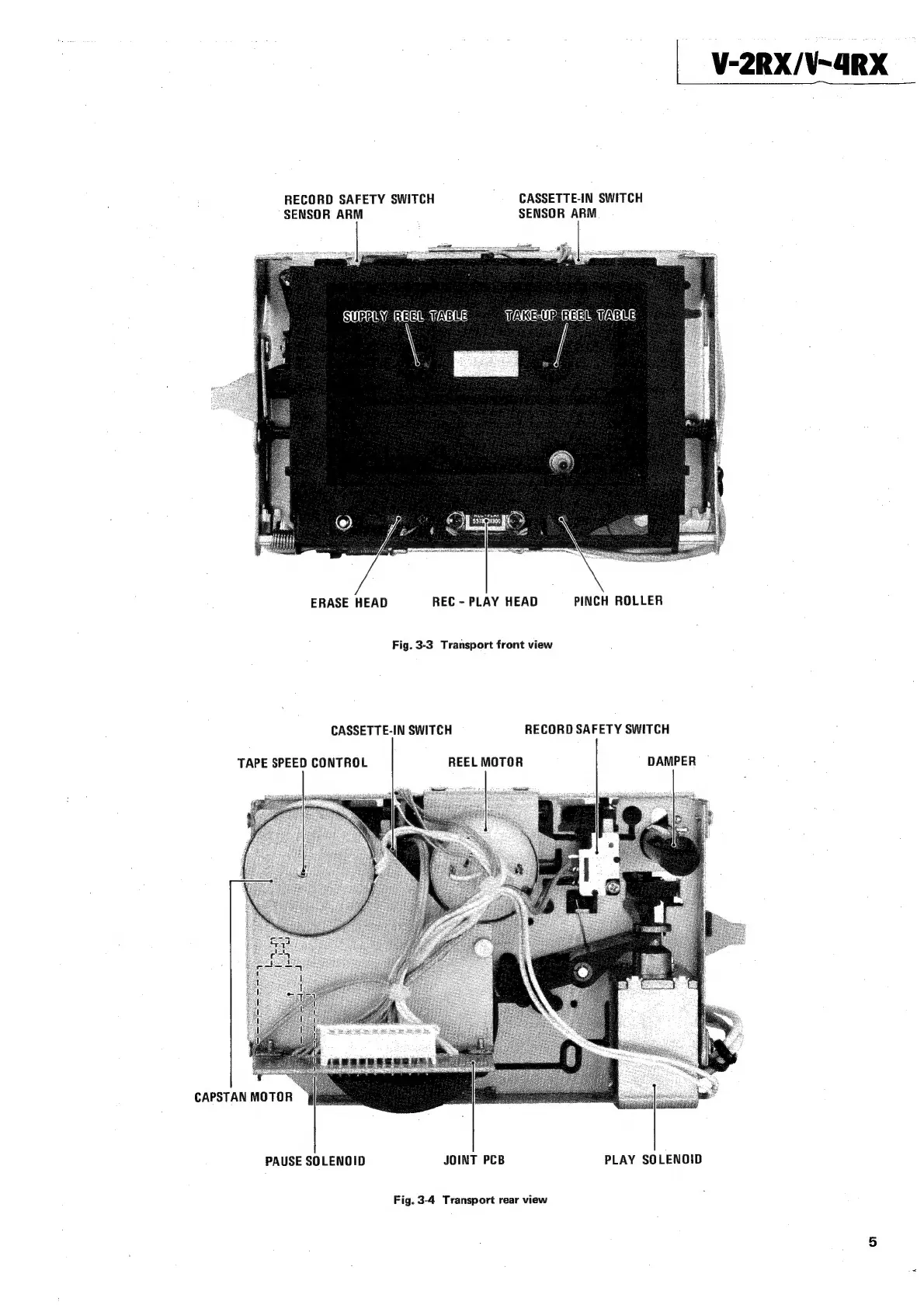

Teac V-2RX - Transport Mechanism Component Views

V-2RX/V~4RX
RECORD SAFETY SWITCH ' CASSETTE-IN SWITCH
SENSOR ARM SENSOR ARM
R ABLE AK ECUPABE AB
ERASE HEAD REC - PLAY HEAD PINCH ROLLER
Fig. 3-3 Transport front view
CASSETTE-IN SWITCH RECORD SAFETY SWITCH
TAPE SPEED CONTROL REEL MOTOR DAMPER
CAPSTAN MOTOR
PAUSE SOLENOID JOINT PCB PLAY SOLENOID
Fig. 3-4 Transport rear view
