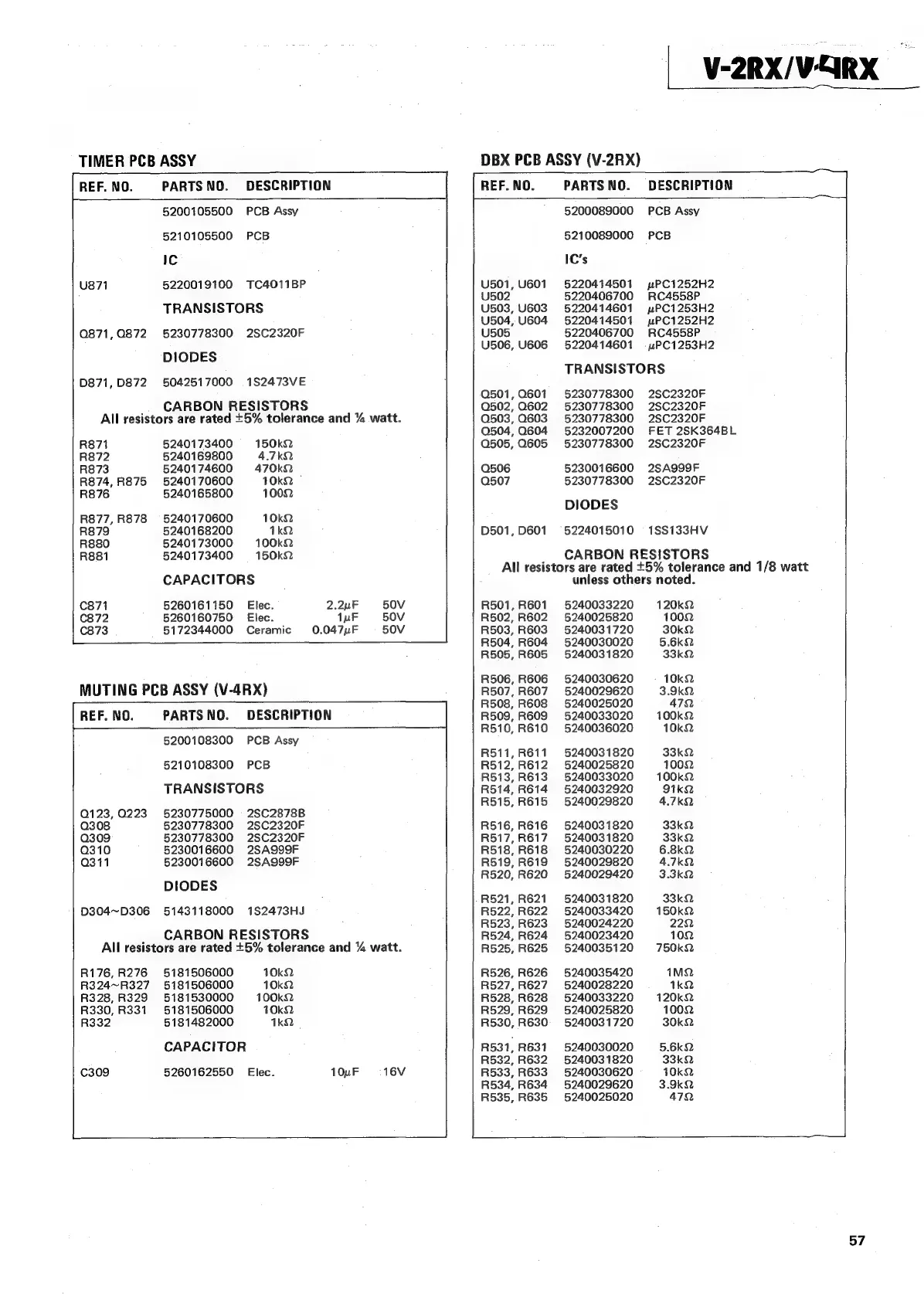

Teac V-2RX - Timer PCB Component List; DBX PCB Component List (V-2 RX); Muting PCB Component List (V-4 RX)

TIMER PCB ASSY
PARTS NO. DESCRIPTION
U871
Q871, 0872
D871, D872
R871
R872
R873
R874, R875
R876
R877, R878
R879
R880
R881
C871
C872
C873
5200105500 PCB Assy
5210105500 PCB
Ic
5220019100 TC4011BP
TRANSISTORS
5230778300 2SC2320F
DIODES
5042517000 1S2473VE
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
5240173400 150kQ
5240169800 4.7kQ
5240174600 470k
5240170600 10kQ ©
5240165800 1002
5240170600 10kQ
5240168200 1kQ
5240173000 100kQ2
5240173400 150k2
CAPACITORS
5260161150 Elec. 2.2uF 50V
5260160750 Elec. 1uF SOV
5172344000 Ceramic 0.047uF 50V
MUTING PCB ASSY (V-4RX)
PARTS NO. DESCRIPTION
Q123, 0223
Q308
Q309
Q310
Q311
D304~D306
R176, R276
R324~R327
R328, R329
R330, R331
R332
C309
5200108300 PCB Assy
5210108300 PCB
TRANSISTORS
5230775000 2SC2878B
5230778300 2SC2320F
5230778300 2SC2320F
5230016600 2SA999F
5230016600 2SA999F
DIODES
5143118000 1S2473HJ
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
5181506000 10k2
5181506000 10k2
5181530000 100k
5181506000 10k2
5181482000 1kQ.
CAPACITOR
5260162550 Elec. 10uF = 16V
| V-2RX/VAIRX
DBX PCB ASSY (V-2RX)
REF.NO. PARTSNO. DESCRIPTION
5200089000 PCB Assy
5210089000 PCB
IC’s
U501, U601 5220414501 wPC1252H2
U502 5220406700 RC4558P
U503, U603_ 5220414601 wPC1253H2
U504, U604 5220414501 wPC1252H2
U505 5220406700 RC4558P
U506, U606 5220414601 = wPC1253H2
TRANSISTORS
Q501,Q601 5230778300 2SC2320F
Q502,Q602 5230778300 2SC2320F
Q503,Q603 5230778300 2SC2320F
Q504,Q604 5232007200 FET 2SK364BL
Q505,Q605 5230778300 2SC2320F
Q506 5230016600 2SA999F
Q507 5230778300 2SC2320F
DIODES
D501,D601 5224015010 1SS133HV
CARBON RESISTORS
All resistors are rated +5% tolerance and 1/8 watt
unless others noted.
R501, R601 5240033220 120k2
R502, R602 5240025820 1002
R503, R603 5240031720 30kQ.
R504, R604 5240030020 5,.6k2
R505, R605 5240031820 33k.
R506, R606 5240030620 10kQ
R507, R607 5240029620 3.9kQ
R508, R608 + 5240025020 47.
R509, R609 5240033020 100k2.
R510,R610 5240036020 10kQ2
R511,R611 5240031820 33k2
R512,R612 5240025820 1002
R513, R613 5240033020 100k
R514,R614 5240032920 91k2
R515,R615 5240029820 4.7kQ
R516,R616 5240031820 33k2
R517,R617 5240031820 33kQ
R518, R618 5240030220 6.8k2
R519, R619 5240029820 4.7k2
R520, R620 5240029420 3.3k2
R521,R621 5240031820 33k
R§22,R622 5240033420 150kQ
R523, R623. 5240024220 222
R524, R624 5240023420 102
R525, R625 5240035120 750kQ
R526, R626 5240035420 IMQ
R527,R627 5240028220 1k2
R528, R628 5240033220 120kQ
R§29, R629 5240025820 1002
R530, R630 5240031720 30k2
R531, R631 5240030020 5.6k2
R532,R632 5240031820 33kQ
R533, R633 5240030620 10k
R534, R634 5240029620 3.9kQ
R535, R635 5240025020 472
57
