Teac V-5000 Owner's Manual

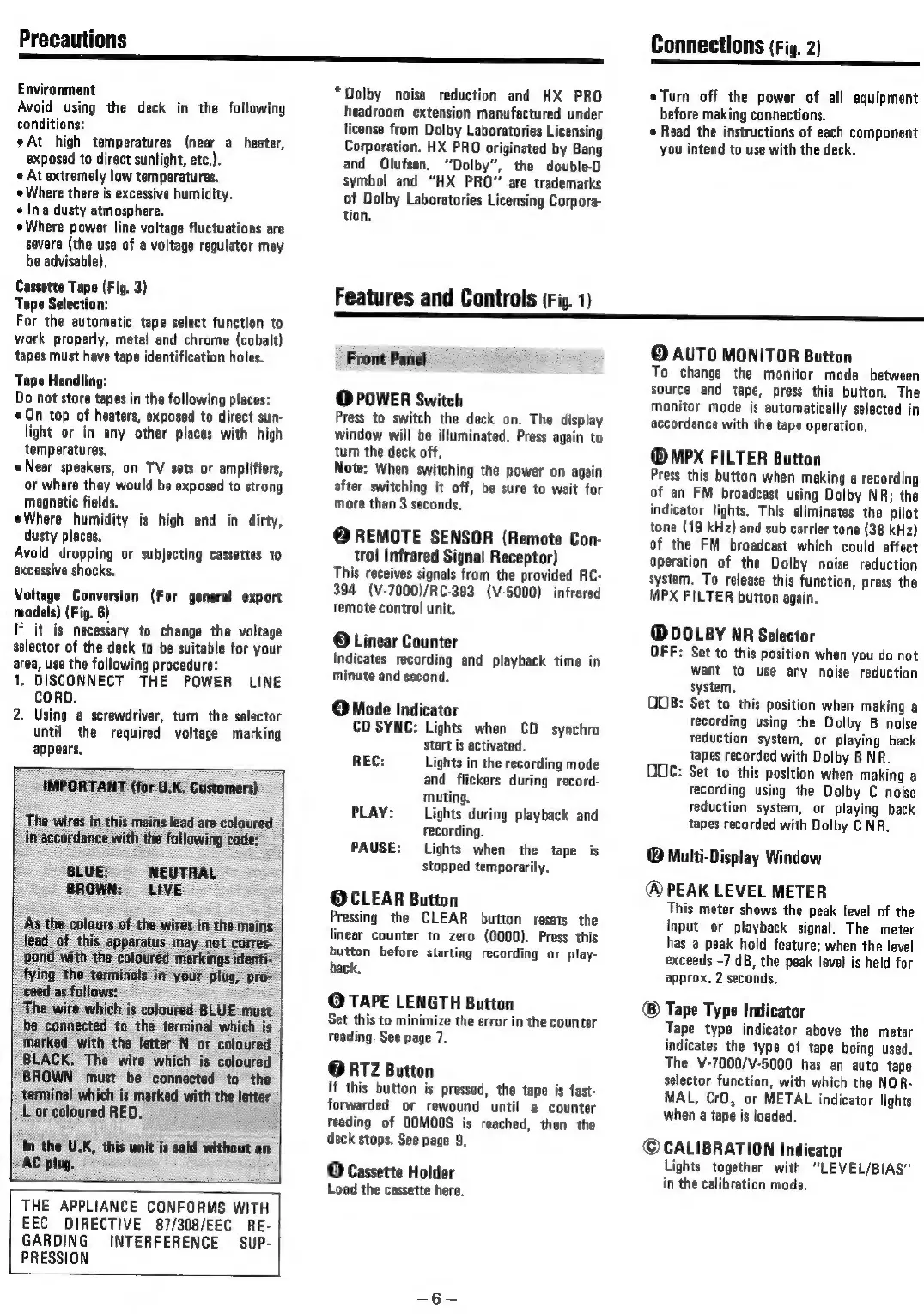

Precautions
a
Environment
Avoid using the deck in the following
conditions:
At high temperatures (near a heater,
exposed to direct sunlight, etc.).
¢ At extremely low temperatures.
¢ Where there is excessive humidity.
¢ Ina dusty atmosphere.
«Where power line voltage fluctuations are
severe (the use of a voltage regulator may
be advisable),
Cassette Tape (Fig. 3)
Tape Selection:
For the automatic tape select function to
work properly, metal and chrame (cobalt)
tapes must have tape identification holes.
Tape Handling:
Do not store tapes in the following places:
© On top of heaters, exposed to direct sun-
light or in any other places with high
temperatures,
Near speakers, on TV sets or amplifiers,
or where they would be exposed to strong
magnetic fields,
Where humidity is high and in dirty,
dusty places.
Avoid dropping or subjecting cassettes to
excessive shacks.
Voltage Conversion (For general export
models) (Fig. 6)
If it is necessary to change the voltage
selector of the deck to be suitable for your
area, use the following procedure:
1. DISCONNECT THE POWER LINE
CORD.
2. Using a screwdriver, turn the selector
until the required voltage marking
appears,
IMPORTANT (for U.K. Customers)
‘The wires in this mains lead are coloured
in accordance with the following code:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wiras in the mains
lead of this apparatus may not corres-
pond with the coloured markings identi--
fying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter N or coloured
BLACK. The wire which is coloured
BROWN must be connected to the
terminal which is marked with the letter
L or coloured RED.
In the U.K, this unit is sold without an
AC plug.
THE APPLIANCE CONFORMS WITH
EEC DIRECTIVE 87/308/EEC RE-
GARDING INTERFERENCE SUP-
PRESSION
“Dolby noise reduction and HX PRO
headroom
extension
manufactured
under
license from Dolby Laboratories Licensing
Corporation. HX PRO originated by Bang
and Olufsen. “Dolby”, the double-D
symbol and “HX PRO" are trademarks
of Dolby Laboratories Licensing Corpora-
tion.
Features and Controls (Fig. 1)
Front Panel
@ POWER Switch
Press to switch the deck on, The display
window will be illuminated. Press again to
turn the deck off.
Note:
When
switching
the
power
on
again
after
switching
it
off,
be
sure
to
wait
for
more
than
3
seconds,
@ REMOTE SENSOR (Remote Con-
trol Infrared Signal Receptor)
This receives signals from the provided RC-
394 (V-7000)/RC-393 (V-5000) infrared
remote control unit.
® Linear Counter
Indicates
recording
and
playback
time
in
minute and second.
@ Mode Indicator
CD SYNC: Lights when CD synchro
start is activated.
REC: Lights in the recording mode
and flickers during record-
muting.
PLAY: Lights during playback and
recording.
PAUSE: Lights when the tape is
stopped temporarily.
OCLEAR Button
Pressing
the
CLEAR
button
resets
the
linear
counter
to
zero
(0000).
Press
this
button
before
starting
recording
or
play-
back.
@ TAPE LENGTH Button
Set
this
to
minimize
the
error
in
the
counter
reading. See page 7.
@ RTZ Button
If
this
button
is
pressed,
the
tape
is
fast-
forwarded
or
rewound
until
a
counter
reading
of
OOMOOS
is
reached,
then
the
deck
stops.
See
page
9,
© Cassette Holder
Load the cassette here.
Connections (Fig. 2)
eTurn off the power of all equipment
before making connections.
© Read the instructions of each component
you intend to use with the deck,
© AUTO MONITOR Button
To
change
the
monitor
mode
between
source
and
tape,
press
this
button,
The
monitor
mode
is
automatically
selected
in
accordance
with
the
tape
operation,
@ MPX FILTER Button
Press
this
button
when
making
a
recording
of
an
FM
broadcast
using
Dolby
NR;
the
indicator
lights.
This
eliminates
the
pilot
tone
(19
kHz)
and
sub
carrier
tone
(38
kHz)
of
the
FM
broadcast
which
could
affect
operation
of
the
Dolby
noise
reduction
system.
To
release
this
function,
press
the
MPX
FILTER
button
again.
@ DOLBY NR Selector
OFF:
Set
to
this
position
when
you
do
not
want
to
use
any
noise
reduction
system.
DOB:
Set
to
this
position
when
making
a
recording
using
the
Dolby
B
noise
reduction
system,
or
playing
back
tapes
recorded
with
Dolby
B
NR,
QUOC:
Set
to
this
position
when
making
a
recording
using
the
Dolby
C
noise
reduction
system,
or
playing
back
tapes
recorded
with
Dolby
C
NR,
® Multi-Display Window
® PEAK LEVEL METER
This
meter
shows
the
peak
level
of
the
input
or
playback
signal,
The
meter
has
@
peak
hold
feature;
when
the
level
exceeds
-7
dB,
the
peak
level
is
held
for
approx.
2
seconds,
Tape Type Indicator
Tape
type
indicator
above
the
meter
indicates
the
type
of
tape
being
used,
The
V-7000/V-5000
has
an
auto
tape
selector
function,
with
which
the
NOR-
MAL,
CrO,
or
METAL
indicator
lights
when
a
tape
is
loaded.
©CALIBRATION Indicator
Lights
together
with
“LEVEL/BIAS”
in the calibration mode.
