Teac X-1000 - Page 18

X1000M/X-1000

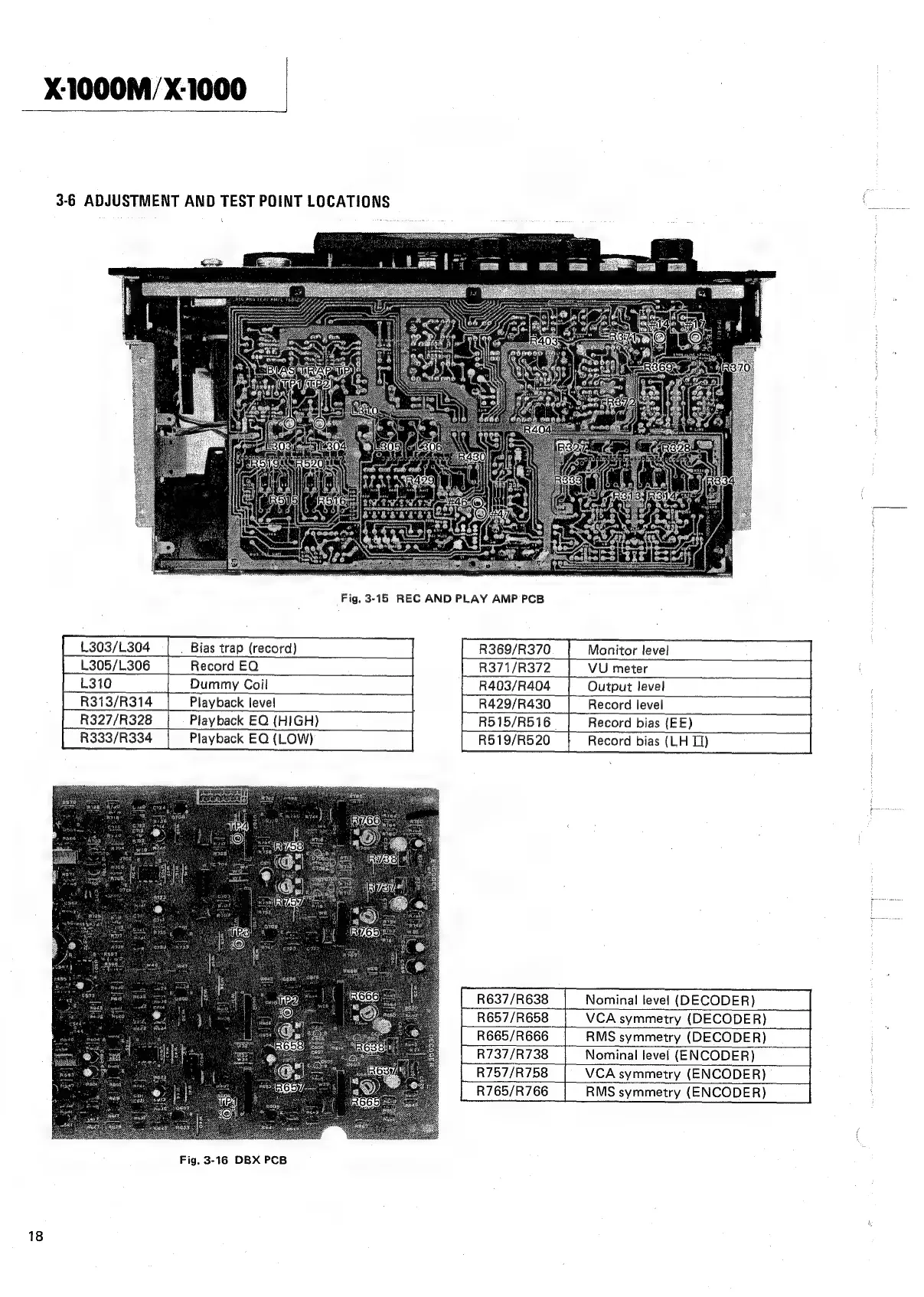

3-6 ADJUSTMENT AND TEST POINT LOCATION (
\ shee Siabae eel i paki
Fig. 3-15 REC AND PLAY AMP PCB
303/L304 . Bias trap (record)
VU meter
Dummy Coil R403/R404 Output level
R313/R314 Playback level R429/R430 Record level
R327/R328
Playback
EQ
(HIGH)
R515/R516
Record
bias
(EE)
R333/R334
Playback
EQ
(LOW)
R519/R520
Record
bias
(LH
If)
R637/R638
R657/R658
R665/R666
R737/R738
R757/R758
R765/R766
Nominal! level (DECODER)
VCA symmetry (DECODER)
RMS symmetry (DECODER)
Nominal level (ENCODER)
VCA symmetry (ENCODER)
RMS symmetry (ENCODER)
Fig. 3-16 DBX PCB
18
