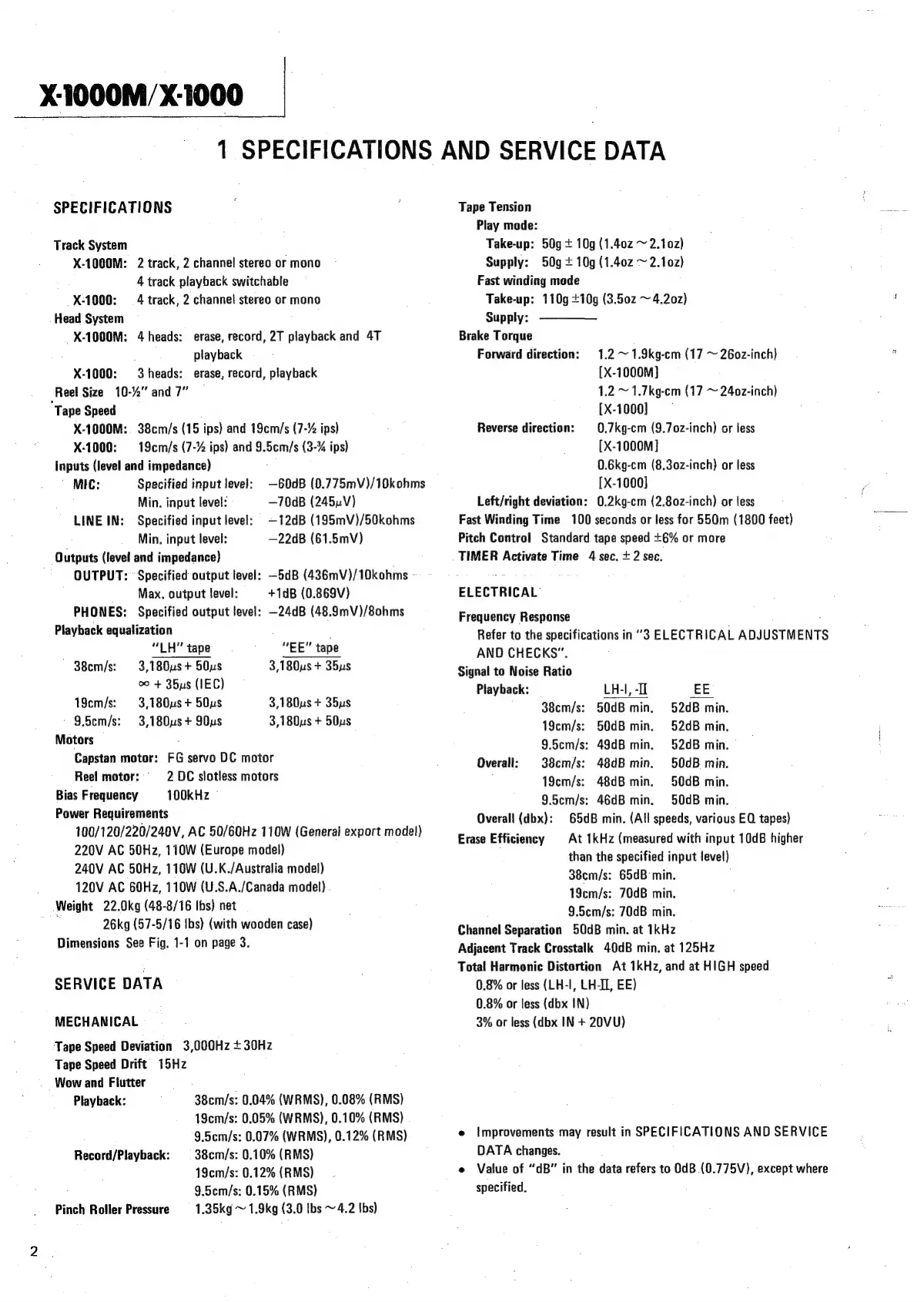

1 SPECIFICATIONS AND SERVICE DATA
SPECIFICATIONS
Track System
X-1000M: 2 track, 2 channel stereo or mono
4 track playback switchable
X-1000: 4 track, 2 channel stereo or mono
Head System
X-1000M: 4 heads: erase, record, 2T playback and 4T
playback
X-1000: 3heads: erase, record, playback
Reel Size 10-%”" and 7”
Tape Speed
X-1000M:. 38cm/s (15 ips) and 19cm/s (7-% ips)
X:1000: 19cm/s (7-% ips) and 9.5cm/s (3-% ips)
inputs (level and impedance) :
MIC: Specified input level:
Min. input level:
LINE IN: Specified input level:
Min. input level:
Outputs (level and impedance)
OUTPUT: Specified output level: —5dB (436mV)/10kohms
Max. output level: +1dB (0.869V)
PHONES: Specified output level: —24dB (48.9mV)/8ohms
Playback equalization
—60dB (0.775mV)/10kohms
—70dB (245:V)
—12dB (195mV)/50kohms
—22dB (61.5mV)
“LH” tane “EE” tape
38cem/s: 3, 180us + 50us 3,180us + 35us
00 + 35us (IEC)
19cm/s: 3,180us + 50us 3,180us + 35us
9.5cm/s: 3,180us+ 90us 3,180us + 50us
Motors
Capstan motor: FG servo DC motor
Reel motor: 2 DC slotless motors
Bias Frequency 100kHz ©
Power Requirements
100/120/220/240V, AC 50/60Hz 110W (General export model)
220V AC 50Hz, 110W (Europe model)
240V AC 50Hz, 110W (U.K./Australia model)
120V AC 60Hz, 110W (U.S.A./Canada model)
Weight 22.0kg (48-8/16 Ibs) net
: 26kg (57-5/16 Ibs) (with wooden case)
Dimensions See Fig. 1-1 on page 3.
SERVICE DATA
MECHANICAL
Tape Speed Deviation 3,000Hz + 30Hz
Tape Speed Drift 15Hz
Wow and Fiutter
Playback: 38cm/s: 0.04% (WRMS), 0.08% (RMS)
19cm/s: 0.05% (WRMS), 0.10% (RMS)
9.5cm/s: 0.07% (WRMS), 0.12% (RMS)
Record/Playhack: § 38cm/s: 0.10% (RMS)
19cm/s: 0.12% (RMS)
9.5cm/s: 0.15% (RMS)
Pinch Roller Pressure 1.35kg ~ 1.9kg (3.0 Ibs ~ 4.2 Ibs)
Tape Tension
Play mode:
Take-up: 50g + 10g (1.402 ~ 2.102)
Supply: 50g + 10g (1.402 ~ 2.102)
Fast winding made
Take-up: 110g +10g (3.50z ~ 4.202)
Supply:
Brake Torque
Forward direction: 1.2 ~ 1.9kg-cm (17 ~ 260z-inch}
[X-1000M]
1.2 ~ 1.7kg-cm (17 ~ 2402-inch)
[X-1000]
0.7kg-cm (9.702-inch) cr less
[X-1000M]
0.6kg-cm (8.30z-inch) or less
[X-1000]
Left/right deviation: 0.2kg-cm (2.80z-inch) or jess
Fast Winding Time 100 seconds or less for 550m (1800 feet)
Pitch Control Standard tape speed +6% or more
TIMER Activate Time 4 sec. + 2 sec.
Reverse direction:
ELECTRICAL
Frequency Response .
Refer to the specifications in “3 ELECTRICAL ADJUSTMENT
AND CHECKS”.
Signal to Noise Ratio
Playback: LH-I, -I EE
38cm/s: 50dB min. 52dB min.
19cem/s: 50dB min. 52dB min.
9.5cm/s: 49dB min. 52dB min.
Overall: 38cm/s: 48dB min. 50dB min.
19cem/s: 48dB min. 50dB min.
9.5cm/s: 46dB min. 50dB min.
Overall (dbx): 65dB min. (All speeds, various EQ tapes)
At 1kHz (measured with input 10dB higher
than the specified input level)
38cm/s: 65dB min.
19cm/s: 70dB min.
9.5cem/s: 70dB min.
Channel Separation 50dB min. at 1kHz
Adjacent Track Crosstalk 40dB min. at 125Hz
Total Harmonic Distortion At 1kHz, and at HIGH speed
0.8% or less (LH-I, LH-IL, EE)
0.8% or less (dbx IN)
3% or less (dbx IN + 20VU)
Erase Efficiency
e Improvements may result in SPECIFICATIONS AND SERVICE
DATA changes.
e Value of “dB” in the data refers to OdB (0.775V), except where
specified.
