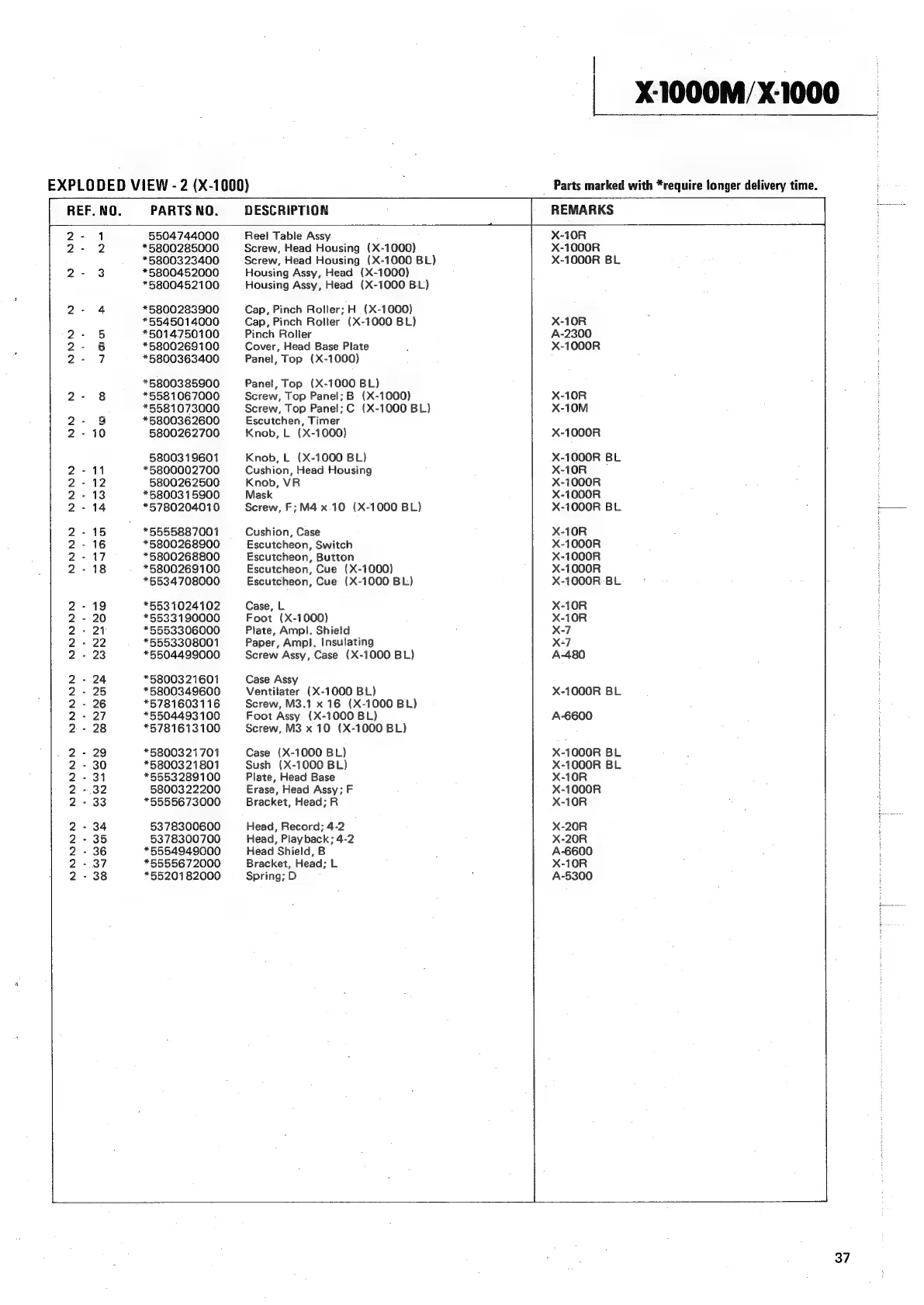

EXPLODED VIEW - 2 (X-1000)
Be NO. PARTS NO. DESCRIPTION
2- 1 5504744000 Reel Table Assy
2- 2 *5800285000 Screw, Head Housing {X-1000)
*5800323400 Screw, Head Housing (X-1000 BL)
DF O83 *5800452000 Housing Assy, Head (X-1000)
*5800452100 Housing Assy, Head (X-1000 BL)
2- 4 *5800283900 Cap, Pinch Roller; H (X-1000)
*5545014000 Cap, Pinch Roller (X-1000 BL)
2- 5 *5014750100 Pinch Roller
2- 6 *6§800269100 Cover, Head Base Plate
2- 7 *5800363400 Panel, Top (X-1000)
*5800385900 Panel, Top (X-1000 BL)
2- 8 *5581067000 Screw, Top Panel; B (X-1000)
*5581073000 Screw, Top Panel; C (X-1000 BL)
2- 9 *5800362600 Escutchen, Timer
2-10 5800262700 Knob, L (X-1000)
5800319601 Knob, L (X-1000 BL)
2-11 *5800002700 Cushion, Head Housing
2-12 5800262500 Knob, VR
2-13 *58003 15900 Mask
2-14 *5780204010 Screw, F;M4x.10 (X-1000 BL)
2-15 *5555887001 Cushion, Case
2-16 *5800268900 Escutcheon, Switch
2-17 *5800268800 Escutcheon, Button
2-18 *5800269100 Escutcheon, Cue (X-1000)
*5534708000 Escutcheon, Cue (X-1000 BL)
2-19 *5531024102 Case, L
2 - 20 *5533190000 Foot (X-1000)
2-21 *5553306000 Plate, Ampl. Shield
2 - 22 *5553308001 Paper, Ampl. Insulating
2 - 23 *5504499000 Screw Assy, Case (X-1000 BL)
2 - 24 *5800321601 Case Assy
2-25 *5800349600 Ventilater (X-1000 BL)
2 - 26 *5781603116 Screw, M3.1 x 16 (X-1000 BL)
2-27 *5504493100 Foot Assy (X-1000 BL)
2 - 28 *56781613100 Screw, M3 x 10 (X-1000 BL)
2-29 *5800321701 Case (X-1000 BL)
2 - 30 *5800321801 Sush (X-1000 BL)
2-31 *5553289100 Plate, Head Base
2 -.32 5800322200 Erase, Head Assy; F
2 - 33 *55556 73000 Bracket, Head; R
2 - 34 5378300600 Head, Record; 4-2
2-35 5378300700 Head, Playback; 4-2
2 - 36 *5554949000 Head Shield, B
2-37 *5555672000 Bracket, Head; L
2-38 *55201 82000 Spring; D
X-1000M/X-1000
Parts marked with *require longer delivery time.
REMARKS
X-10R
X-1000R
X-1000R BL
X-10R
A-2300
X-1000R
X-10R
X-10M
X-1000R
X-1000R BL
X-10R
X-1000R
X-1000R
X-1000R BL
X-10R
X-1000R
X-1000R
X-1000R
X-1000R: BL
X-10R
X-10R
X-7
X-7
A-480
X-1000R BL
A-6600
X-1000R BL
X-1000R BL
X-10R
X-1000R
X-10R
X-20R
X-20R
A-6600
X-10R
A-5300
37
