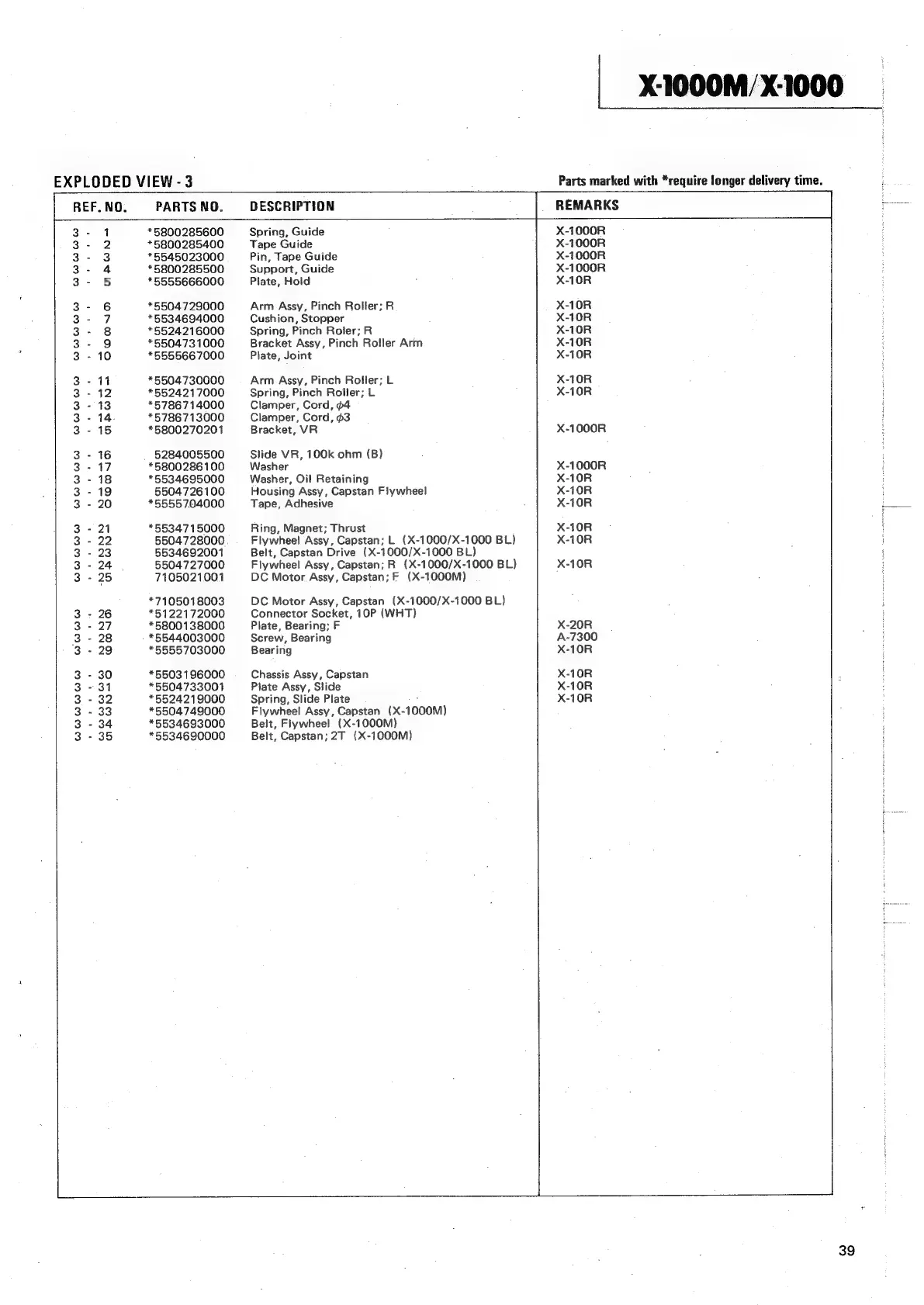

EXPLODED VIEW - 3
Parts marked with *require longer delivery time.
REF. NO. PARTS NO. DESCRIPTION REMARKS
3-1 *5800285600 Spring, Guide X-1000R
3- 2 *5800285400 Tape Guide X-1000R
3- 3 *5545023000 Pin, Tape Guide X-1000R
3- 4 *5800285500 Support, Guide X-1000R
3- 5 *5555666000 Plate, Hold X-10R
3- 6 *5504729000 Arm Assy, Pinch Roller; R X-10R
3- 7 *5534694000 Cushion, Stopper X-10R
3- 8 *5524216000 Spring, Pinch Roler; R X-10R
3-9 *5504731000 Bracket Assy, Pinch Roller Arm X-10R
3 - 10 *5555667000 Plate, Joint X-10R
3-11 *5504730000 Arm Assy, Pinch Roller; L X-10R
3-12 *5524217000 Spring, Pinch Roller; L X-10R
3-13 *5786714000 Clamper, Cord, 64
3-14. *5786713000 Clamper, Cord, $3
3-15 *5800270201 Bracket, VR X-1000R
3 - 16 5284005500 Slide VR, 100k ohm (B)
3-17 *5800286100 Washer X-1000R
3-18 *5534695000 Washer, Oi! Retaining X-10R
3-19 5504726100 Housing Assy, Capstan Fiywheel X-10R
3 - 20 *5555704000 Tape, Adhesive X-10R
3-21 *5534715000 Ring, Magnet; Thrust X-10R
3 - 22 5504728000 Flywheel Assy, Capstan; L (X-1000/X-1000 BL) X-10R
3 - 23 5534692001 Belt, Capstan Drive (X-1000/X-1000 BL)
3 - 24 5504727000 Flywheel Assy, Capstan; R (X-1000/X-1000 BL) X-10R
3 - 25 7105021001 DC Motor Assy, Capstan; F (X-1000M)
*710501 8003 DC Motor Assy, Capstan (X-1000/X-1000 BL)
3 - 26 *5122172000 Connector Socket, 10P (WHT)
3 - 27 *5800138000 Plate, Bearing; F X-20R
3 - 28 *5544003000 Screw, Bearing A-7300
3 .- 29 *5555703000 Bearing X-10R
3 - 30 *5503 196000 Chassis Assy, Capstan X-10R
3-31 *6§504733001 Plate Assy, Slide X-10R
3 - 32 *5524219000 Spring, Slide Plate : X-10R
3 - 33 *5504749000 Flywheel Assy, Capstan (X-1000M)
3 - 34 *5534693000 Belt, Fiywheel (X-1000M)
ao. 35 *5534690000 Belt, Capstan; 2T (X-1000M)
X-1000M/X-1000
39
