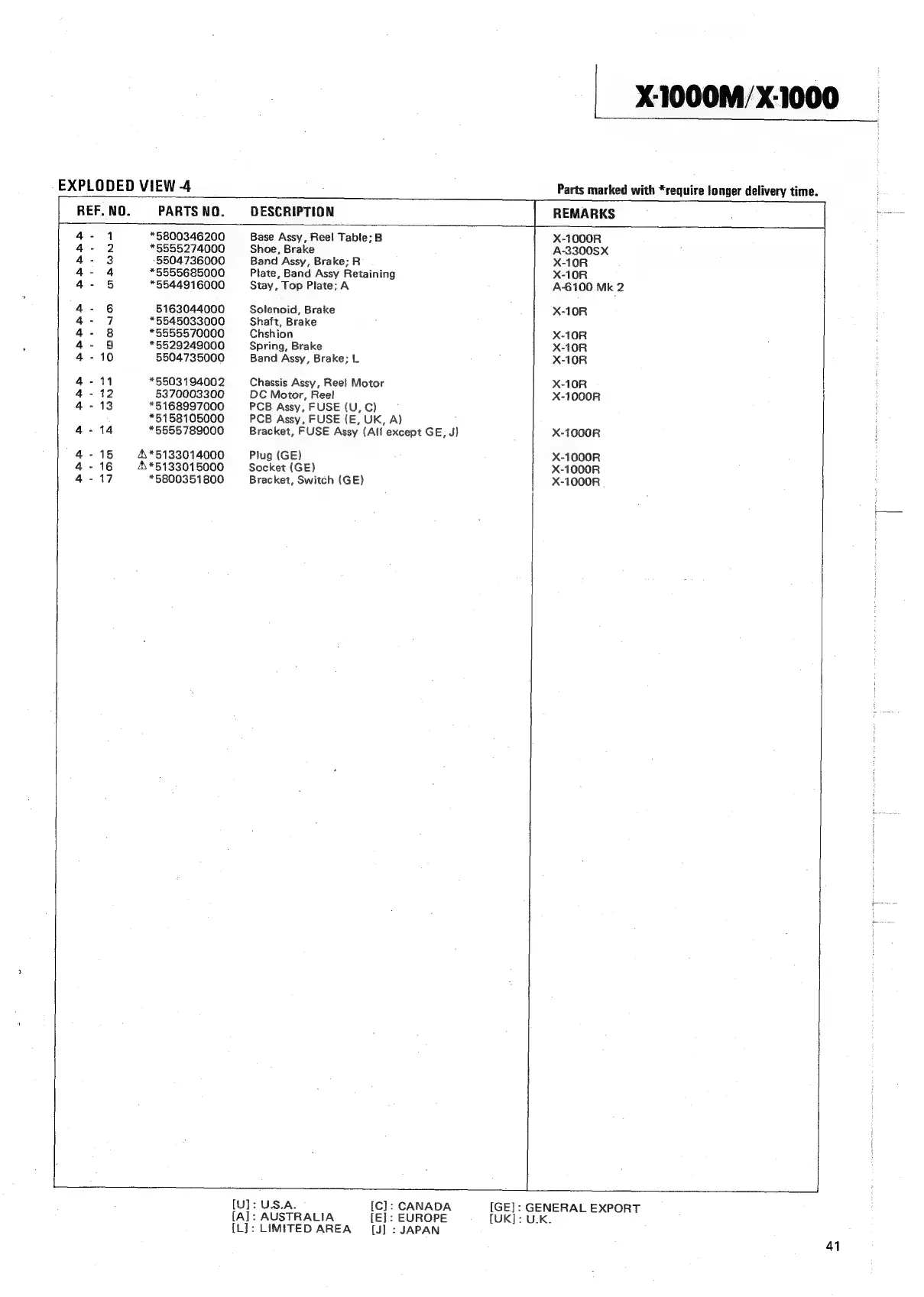

X-1000M/X-1000
-EXPLODED
VIEW
4
Parts
marked
with
*require
longer
delivery
time.
REF.
NO.
PARTS
NO.
DESCRIPTION
REMARKS
4-1
*5800346200
Base
Assy,
Reel
Table;
B
X-1000R
4-
2
*§555274000
Shoe,
Brake
A-3300SX
4-
3
‘5504736000
Band
Assy,
Brake;
R
X-10R
4-
4
*5555685000
Plate,
Band
Assy
Retaining
X-10R
4-
5
*5544916000
Stay,
Top
Plate;
A
A-6100
Mk
2
4-6
5163044000
Solenoid,
Brake
X-10R
4-
7
*5545033000
Shaft,
Brake
4-
8
*5555570000
Chshion
X-10R
4-
9
*5529249000
Spring,
Brake
X-10R
4-10
5504735000
Band
Assy,
Brake;
L
X-10R
4-11
*5503194002
Chassis
Assy,
Reet
Motor
X-10R
4-12
5370003300
DC
Motor,
Reel
X-1000R
4-13
*5168997000
PCB
Assy,
FUSE
(U,
C)
*5158105000 PCB Assy, FUSE (E, UK, A)
4-14
*5555789000
Bracket,
FUSE
Assy
(Alf
except
GE,
J}
X-1000R
4-15
4.*5133014000
Plug
(GE)
X-1000R
4-16
44*5133015000
Socket
(GE)
X-1000R
4-17
*5800351800
Bracket,
Switch
(GE)
X-1000R
(U]: U.S.A. [C]: CANADA
[A]: AUSTRALIA {E]: EUROPE
[L}: LIMITED AREA [J] : JAPAN
[GE]: GENERAL EXPORT
[UK]: U.K.
41
