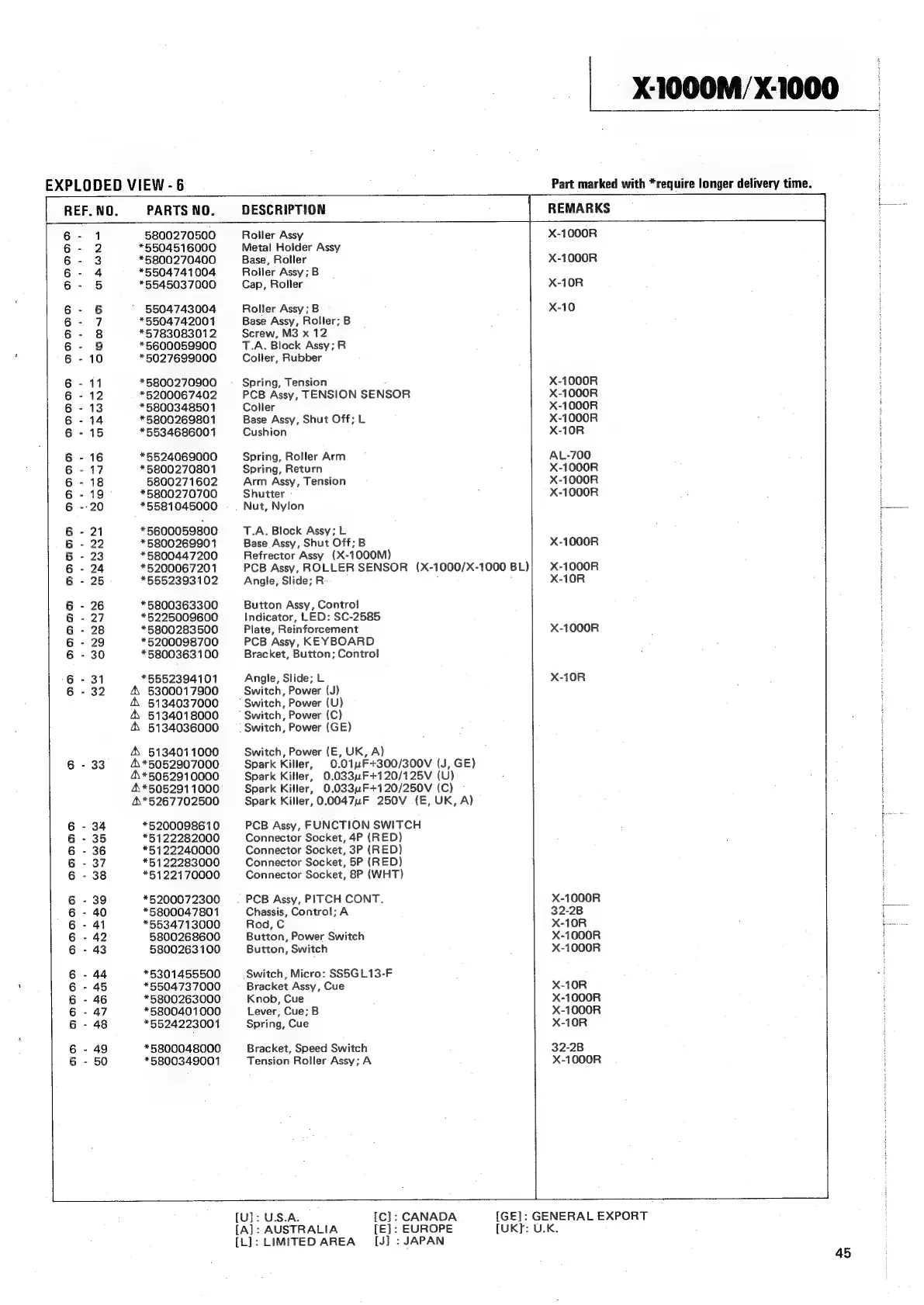

EXPLODED VIEW -6
X-1000M/X-:1000
Part marked with *require longer delivery time.
[_ ner. NO. PARTS NO. DESCRIPTION | REMARKS
6- 1 5800270500 Roller Assy X-1000R
6- 2 *5504516000 Metal Holder Assy
6-
3
*5800270400
Base,
Roller
X-1000R
6- 4 *5504741004 Roller Assy; B
6-
5
*5545037000
Cap,
Roller
X-10R
6- 6 5504743004 Roller Assy; B X-10
6- 7 *5504742001 Base Assy, Roller; B
6- 8 *5783083012 Screw, M3 x 12
6- 9 *5600059900 T.A. Block Assy; R
6 - 10 *5027699000 Coller, Rubber
6-11 *5800270900 - Spring, Tension X-1000R
6-12 *5200067402 PCB Assy, TENSION SENSOR X-1000R
6-13
*5800348501
Colter
X-1000R
6-14 *5800269801 Base Assy, Shut Off;.L X-1000R
6-15 *5534686001 Cushion X-10R
6 - 16 *5524069000 Spring, Roller Arm AL-700
6-17 *5800270801 Spring, Return X-1000R
6-18 5800271602 Arm Assy, Tension X-1000R
6-19 *5800270700 Shutter X-1000R
6 --20 *5581045000 Nut, Nylon
6 - 21 *5600059800 T.A. Block Assy; L
6 - 22 *5800269901 Base Assy, Shut Off; B X-1000R
6 - 23 *5800447200 Refrector Assy (X-1000M)
6 - 24 *5200067 201 PCB Assy, ROLLER SENSOR (X-1000/X-1000 BL)| X-1000R
6
-
25
*6552393102
Angle,
Slide;
R-
X-10R
6 - 26 *5800363300 Button Assy, Control
6 - 27 *5225009600 Indicator, LED: SC-2585
6 - 28 *5800283500 Plate, Reinforcement X-1000R
6 - 29 *5200098700 PCB Assy, KEYBOARD
6 - 30 *5800363100 Bracket, Button; Control
6
-
31
*5552394101
Angle,
Slide;
L
X-10R
6 - 32 A 5300017900 Switch, Power (J)
A 5134037000 — Switch, Power (U)
4, 5134018000 Switch, Power (C)
A. 5134036000 — Switch, Power (GE)
A 5134011000 Switch, Power (E, UK, A)
6 - 33 4 *5052907000 Spark Killer, 0.014nF+300/300V (J, GE)
A\*5052910000 Spark Killer, 0.033uF+120/125V (U)
4.*505291 1000 Spark Killer, 0.0334F+120/250V (C) -
4A\*5267702500 Spark Killer, 0.0047uF 250V (E, UK, A)
6 - 34 *5200098610 PCB Assy, FUNCTION SWITCH
6 - 35 *6122282000 Connector Socket, 4P (RED)
6 - 36 *5122240000 Connector Socket, 3P (RED)
6 - 37 *5122283000 Connector Socket, 5P (RED)
6 - 38 *5122170000 Connector Socket, 8P (WHT)
6 - 39 *5200072300 PCB Assy, PITCH CONT. X-1000R
6 - 40 *5800047801 Chassis, Control; A 32-2B
6 - 41 *5534713000 Rod, C X-10R
6 - 42 5800268600 Button, Power Switch X-1000R
6 - 43 5800263100 Button, Switch X-1000R
6 - 44 *5301455500 Switch, Micro: SS5GL13-F
6 - 45 *5504737000 Bracket Assy, Cue X-10R
6 - 46 *5800263000 Knob, Cue X-1000R
6 - 47 *5800401000 Lever, Cue; B X-1000R
6 - 48 *5524223001 Spring, Cue X-10R
6 - 49 *5800048000 Bracket, Speed Switch 32-2B
6 - 50 *5800349001 Tension Roller Assy; A X-1000R
[U}: U.S.A. {C]: CANADA {GE]: GENERAL EXPORT
{A]: AUSTRALIA [E]: EUROPE [UKF: U.K.
{L]: LIMITED AREA [J] : JAPAN
45
