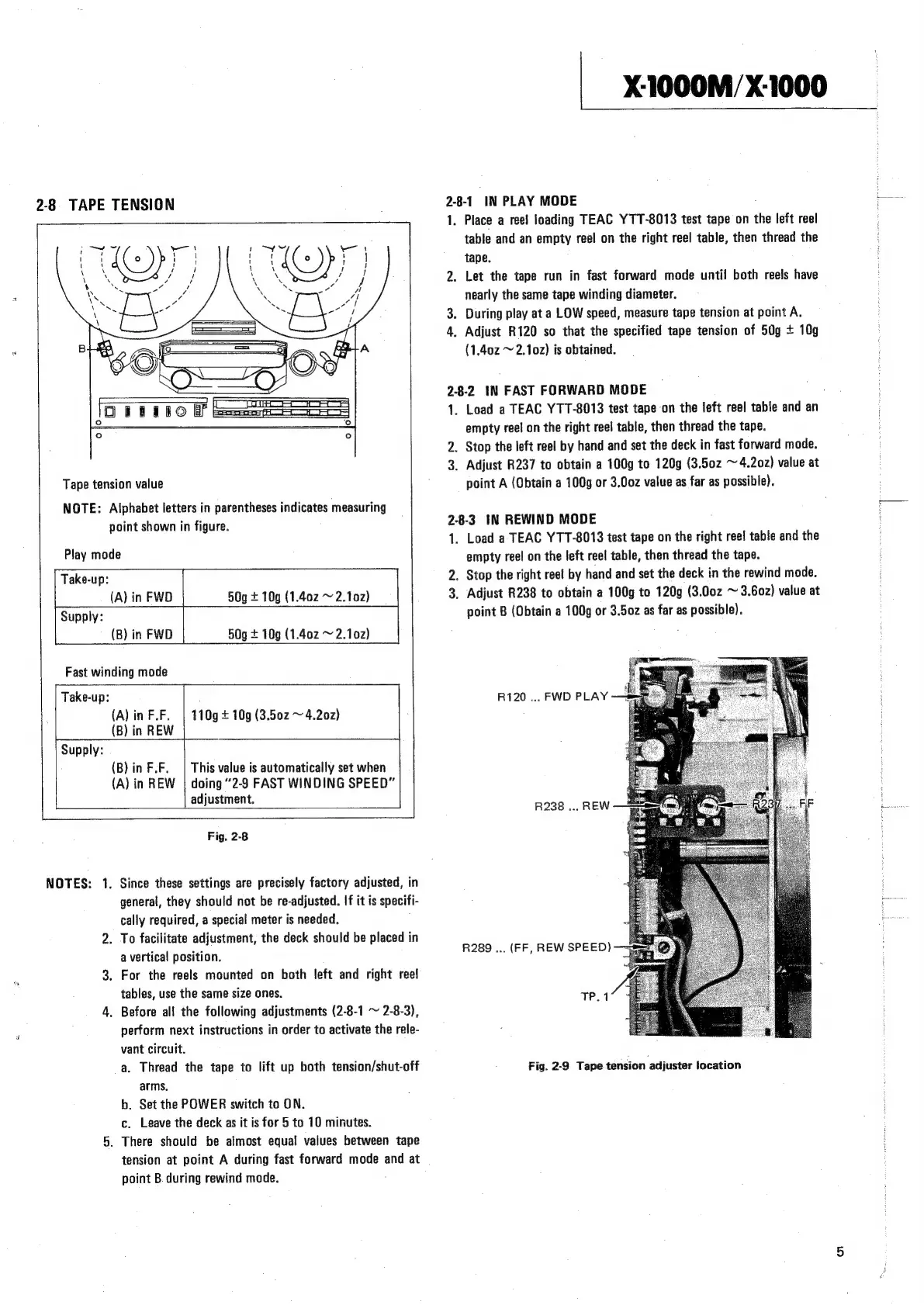

Teac X-1000 - 2-8 Tape Tension Adjustment

2-8 TAPE TENSION
[eo]
°
Tape tension value
NGTE: Alphabet letters in parentheses indicates measuring
point shown in figure.
Play mode
Take-up:
(A) in FWO
Supply:
50g + 10g (1.402 ~ 2.102)
(B) in FWD 50g + 10g (1.402 ~ 2.102)
Fast winding mode
Take-up:
(A) in F.F. | 110g + 10g (3.502 ~ 4.202)
(B) in REW
Supply:
(B) in F.F. | This value is automatically set when
(A) in REW | doing “2-9 FAST WINDING SPEED”
adjustment.
Fig. 2-8
NOTES: 1. Since these settings are precisely factory adjusted, in
general, they should not be re-adjusted. If it is specifi-
cally required, a special meter is needed.
2. To facilitate adjustment, the deck should be placed in
a vertical position.
3. For the reels mounted on both left and right reel!
tables, use the same size ones.
4, Before all the following adjustments (2-8-1 ~ 2-8-3),
perform next instructions in order to activate the rele-
vant circuit.
a. Thread the tape to lift up both tension/shut-off
arms,
b. Set the POWER switch to ON.
c. Leave the deck as it is for 5 to 10 minutes.
5. There should be almost equa! values between tape
tension at point A during fast forward mode and at _
point B. during rewind mode.
X-1000M/X-:1000
2-8-1 IN PLAY MODE —
1. Place a reel loading TEAC YTT-8013 test tape on the left reel
table and an empty reel on the right reel table, then thread the
tape.
2. Let the tape run in fast forward mode until both reels have
nearly the same tape winding diameter.
3. During play at a LOW speed, measure tape tension at point A.
4. Adjust R120 so that the specified tape tension of 50g + 10g
(1.40z ~ 2.102) is obtained.
2-8-2
IN
FAST
FORWARD
MODE
1.
Load
a
TEAC
YTT-8013
test
tape
on
the
left
reel
table
and
an
empty
reel
on
the
right
reel
table,
then
thread
the
tape.
2.
Stop
the
left
reel
by
hand
and
set
the
deck
in
fast
forward
mode.
3.
Adjust
R237
to
obtain
a
100g
to
120g
(3.502
~
4.202)
value
at
point
A
(Obtain
a
100g
or
3.00z
value
as
far
as
possible).
2-8-3 IN REWIND MODE
1.
Load
a
TEAC
YTT-8013
test
tape
on
the
right
ree!
table
and
the
empty
reel
on
the
left
reel
table,
then
thread
the
tape.
2.
Stop
the
right
reel
by
hand
and
set
the
deck
in
the
rewind
mode.
3.
Adjust
R238
to
obtain
a
100g
to
120g
(3.00z
~
3.602)
value
at
point
B
(Obtain
a
100g
or
3.50z
as
far as
possible).
R120 ... FWD PLAY
R238
...
REW
—Saemeh
23Y,
...
F,
ag
R289 ... (FF, REW SPEED)
TP.1
Fig. 2-9 Tape tension adjuster location
