53
R286 b223 pais
X= 1000} 150k 182473HJ | WZ-090 |52000985- 00
X-1000M | 180k 52000985 - 10

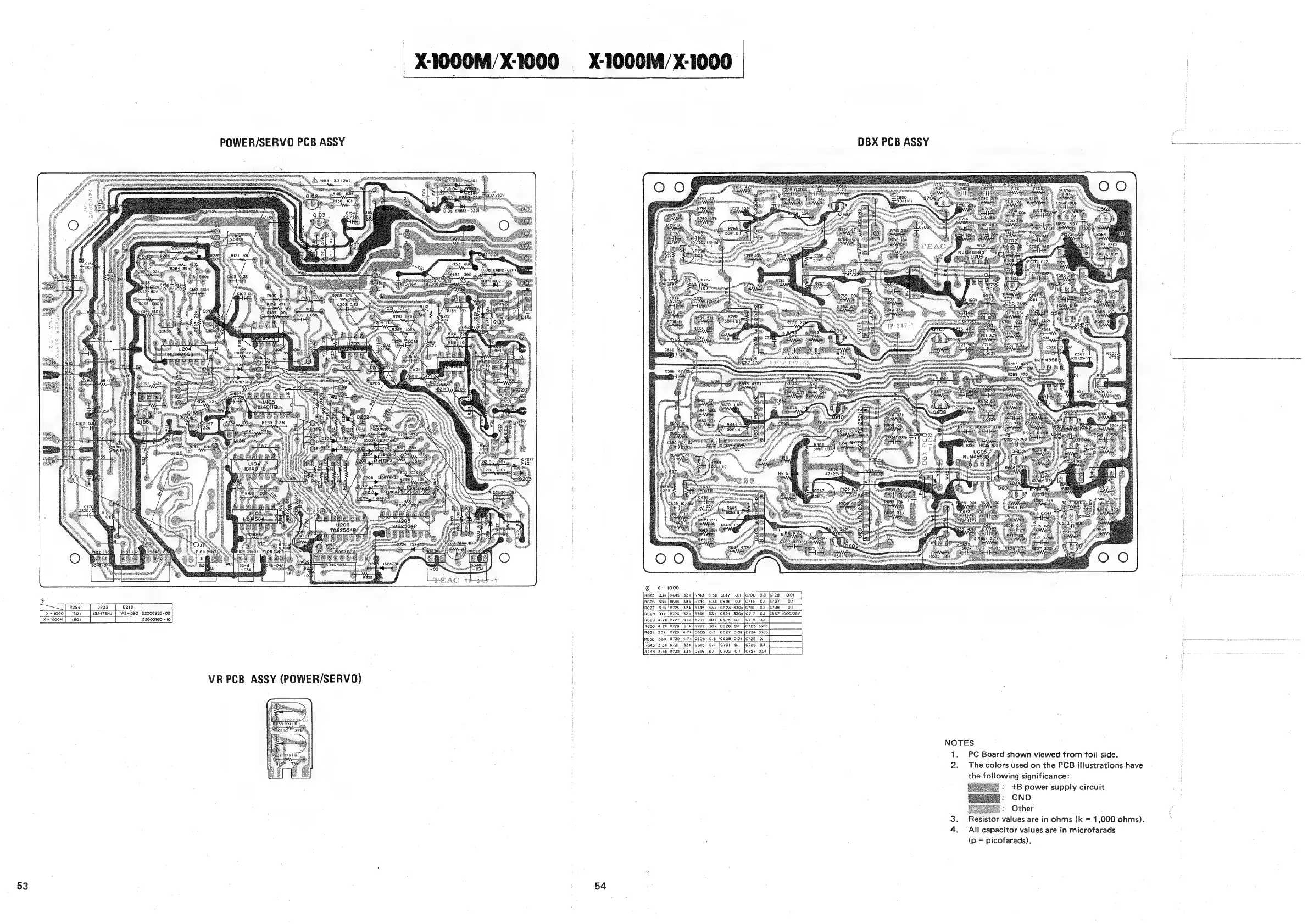

POWER/SERVO PCB ASSY
Av risa 3.3 (20)
VR PCB ASSY (POWER/SERVO)
X-1000M/X-1000
X-10001M/X-1000
54
% X- 1000
R625 33k [RGIS 33k [R743 3.3K|C6I7 0.1 [c706 0.3 [c72B O01 |
R626 33k [R66 33k [R744 3.3k|CEIB O.1 [C715 0.1 |c737 Ou
R627 91k |R725 33k [R745 33k [C623 330p|c7i6 0.1 |C738 0.1
R628 91k [R726 33k [R746 33k [C624 330p|C7I7 0.1 [C567 10007/25V
R629 4.7K|R727 Sik |R77! 30k [C625 0.1 [c7Ie Ov!
R630 47k [R728 Sik [R772 30k |CG26 0.1 |c723 330p
R631 53k [R729 4.7k [C608 0.3 [C627 0.01 [C724 _330p
R632_33k [R730 4.7% [C606 0.3 [C628 0.01 |c725_ Ou!
REa3_3.3k(R731 33k [ceIS 0.1 [C701 0.1 [C726 0.1
[Réaa_3.3«|R732_33x [616 01 [C702 0.1 |c727 0.01
DBX PCB ASSY
NOTES
1. PC Board shown viewed from foil side.
2. Thecolors used on the PCB illustrations have
the following significance:
+B power supply circuit
GND
Other
3. Resistor values are in ohms (k = 1,000 ohms).
4. All capacitor values are in microfarads
(p = picofarads).
