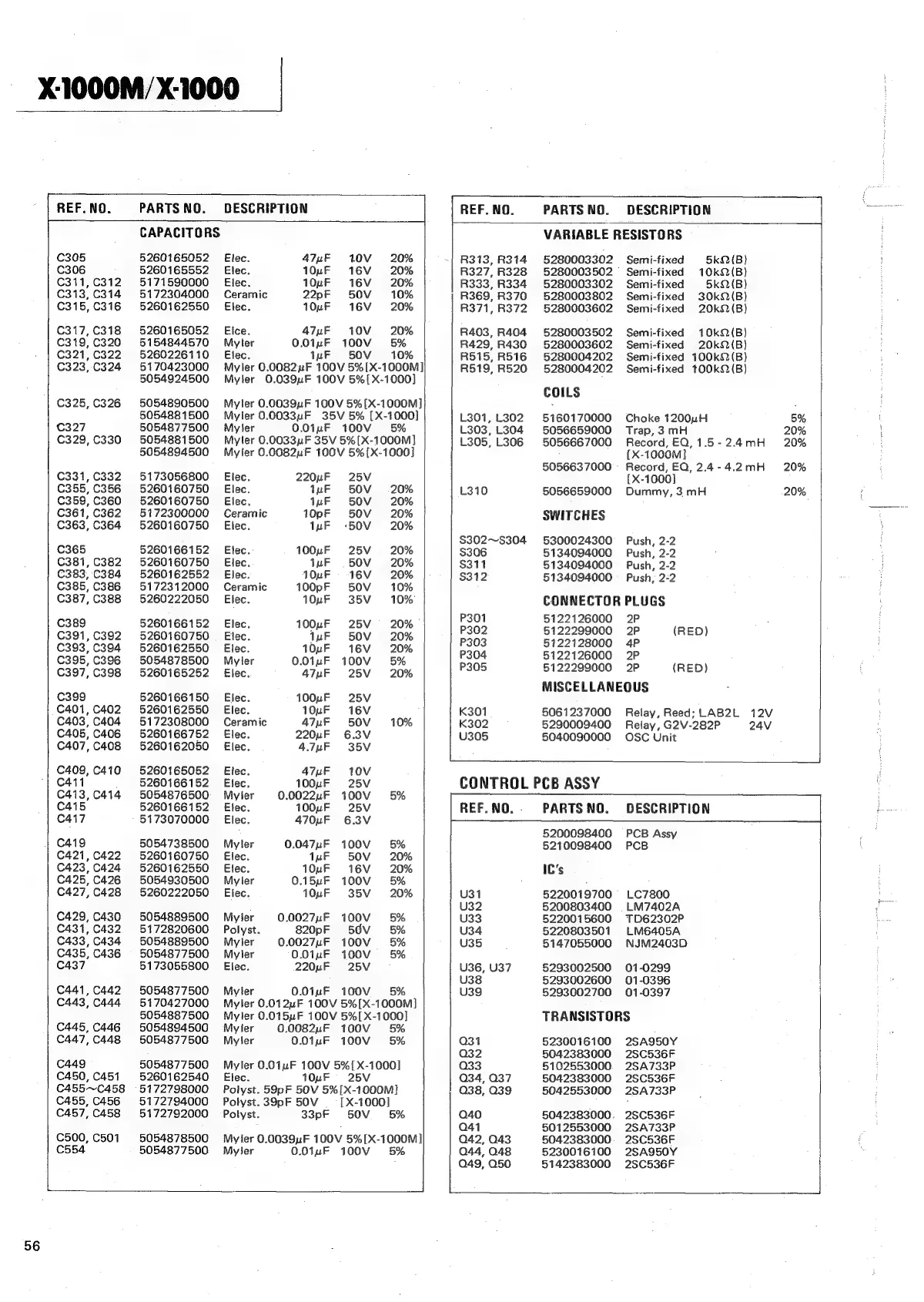

X-1000M/X:1000
56
fs
REF. NO. PARTS NO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
[ CAPACITORS VARIABLE RESISTORS
C305 5260165052 Etec. 47uF 10V 20% R313,R314 5280003302 Semi-fixed 5kQ(B)
C306 5260165552 Elec. 10uF 16V 20% R327, R328 5280003502 Semi-fixed 10k2(B)
C311,C312 5171590000 Elec. 10uF 16V 20% R333, R334 5280003302 Semi-fixed 5k2(B)
C313,C314 5172304000 Ceramic 22pF SOV 10% R369,R370 5280003802 Semi-fixed 30k2(B)
C315,C316
5260162550
Elec.
10uF
16V
20%
R371,R372
5280003602
Semi-fixed
20k2(B)
C317,C318 5260165052 Elce. A7TuF 10V 20% R403, R404 5280003502 Semi-fixed 10kQ(B)
C319,C320
5154844570
Myler
O0.01uF
100V
5%
R429,R430
5280003602
Semi-fixed
20k2(B)
C321,C322
5260226110
Elec.
1wF
=
S50V
10%
R515,R516
5280004202
Semi-fixed
100k2(B)
C323,C324 5170423000 Myler 0.0082uF 100V 5%[X-1000M] R519, R520 5280004202 Semi-fixed t00k2(B)
5054924500 Myler 0.039uF 100V 5%{X-1000] catie ;
C325,C326 5054890500 Myler 0.0039uF 100V 5%{[X-1000M] . ;
5054881500 Myler 0.0033uF 35V 5% [X-1000] L301, L302 5160170000 Choke 1200uH 5%
C327 5054877500 Myler O.0inF 100V 5% L303,L304 5056659000 Trap, 3 mH 20%
C329,C330 5054881500 Myler 0.0033uF 35V 5%[X-1000M] L305,L306 5056667000 Record,EQ,1.5-2.4mH 20%
5054894500 Myler 0.0082uF 100V 5%{X-1000] [X-1000M}
5056637000 - Record, EQ,2.4-4.2mH 20%
C331,C332
5173056800
Elec.
220uF
25V
[X-1000]
C355,C356 5260160750 Elec. 1uF 50V 20% L310 5056659000 Dummy, 3 mH 20%
C359,C360 5260160750 Elec. IF 50V 20%
C361,C362 5172300000 Ceramic 10pF 50V 20% SWITCHES
C363,C364 5260160750 Elec. 1pF -50V 20%
S302~S304 5300024300 Push, 2-2
C365 5260166152 Elec. 100uF 25V 20% S306 5134094000 Push, 2-2
C381,C382 5260160750 Elec. iuF = 50V 20% S311 5134094000 Push, 2-2
C383,C384 5260162552 Elec. 10uF 16V 20% $312 5134094000 Push; 2-2
C385,C386 5172312000 Ceramic 100pF 50V 10%
C387,C388 5260222050 Elec. 10uF 35V 10% CONNECTOR PLUGS
389 5260166152 Elec. 100uF 25V 20% aoa Steseoecea: Ge. ARK Si
C391,C392 5260160750 Elec. InF 50V 20% P303 5122128000 4P
C393,C394 5260162550 Elec. 10uF 16V 20% P304 5122126000 2P
C395,C396 5054878500 Myler O0.0iuF 100V 5% P3205 5129299000 2P (RED)
C397,C398 5260165252 Elec. 47uF 25V 20%
MISCELLANEOUS
C399 5260166150 Elec. 100uF 25V
C401,C402
5260162550
Elec.
10uF
16V
K301
5061237000
Relay,
Reed;
LAB2L
12V
C403,C404
5172308000
Ceramic
47uF
50V
10%
K302
5290009400
Relay,
G2V-282P
24V
C405,C406 5260166752 Elec. 220uF 6.3V U305 5040090000 OSC Unit
C407,C408 5260162050 Elec. 4.7uF 35V
C409,C410 5260165052 Elec. 47uF =10V
C411 5260166152 Elec. 100uF 25V CONTROL PCB ASSY
C413,C414 5054876500 Myler 0.0022uF 100V 5%
C415
5260166152
Elec.
100uF
25V
PARTS
NO.
DESCRIPTION
C417 5173070000 Elec. 470uF 6.3V
5200098400 PCB Assy
C419 5054738500 Myler 0.047uF 100V 5% 5210098400 PCB
C421,C422 5260160750 Elec. 1uF 650V 20%
C423,C424 5260162550 Elec. 10uF 16V 20% IC‘s
C425,C426 5054930500 Myler 0.15uF 100V 5%
C427,C428 5260222050 Elec. 10uF 35V 20% U31 5220019700 LC7800
; U32 5200803400 _LM7402A
C429,C430 5054889500 Myler 0.0027uF 100V 5% U33 5220015600 TD62302P
C431,C432 5172820600 Polyst. 820pF 56V 5% U34 5220803501 LM6405A
C433,C434 5054889500 Myler 0.0027uF 100V 5% U35 5147055000 NJM2403D
C435,C436 5054877500 Myler O.01uF 100V 5%
C437 5173055800 Elec. 220uF 25V U36, U37 5293002500 01-0299
U38 5293002600 01-0396
C441,C442 5054877500 Myler O.01inF 100V 5% U39 5293002700 01-0397
C443,C444 5170427000 Myler 0.012uF 100V 5%[X-1000M]
5054887500 Myler 0.015uF 100V 5%[X-1000] TRANSISTORS
C445,C446 5054894500 Myler 0.0082uF 100V 5%
C447,C448 5054877500 Myler O.0iuF 100V 5% Q31 5230016100 2SA950Y
Q32 5042383000 2SC536F
C449 5054877500 Myler 0.01uF 100V 5%{[X-1000] Q33 5102553000 2SA733P
C450,C451 5260162540 Elec. 10uF 25V 034, 037 5042383000 2SC536F
C455~C458 5172798000 Polyst. 59pF 50V 5%[X-1000M1 Q38, Q39 5042553000 2SA733P
C455,C456 5172794000 Polyst.39pF 50V -[X-1000] ;
C457,C458 5172792000 Polyst. 33pF 50V 5% 040 5042383000. 2SC536F
Q41 5012553000 2SA733P
C500,C501 5054878500 Myler 0.0039.F 100V 5%[X-1000M] Q42, 043 5042383000 2SC536F
C554 5054877500 Myler O.01uF 100V 5% 044, 048 5230016100 2SA950Y
Q49, Q50 5142383000 2SC536F
