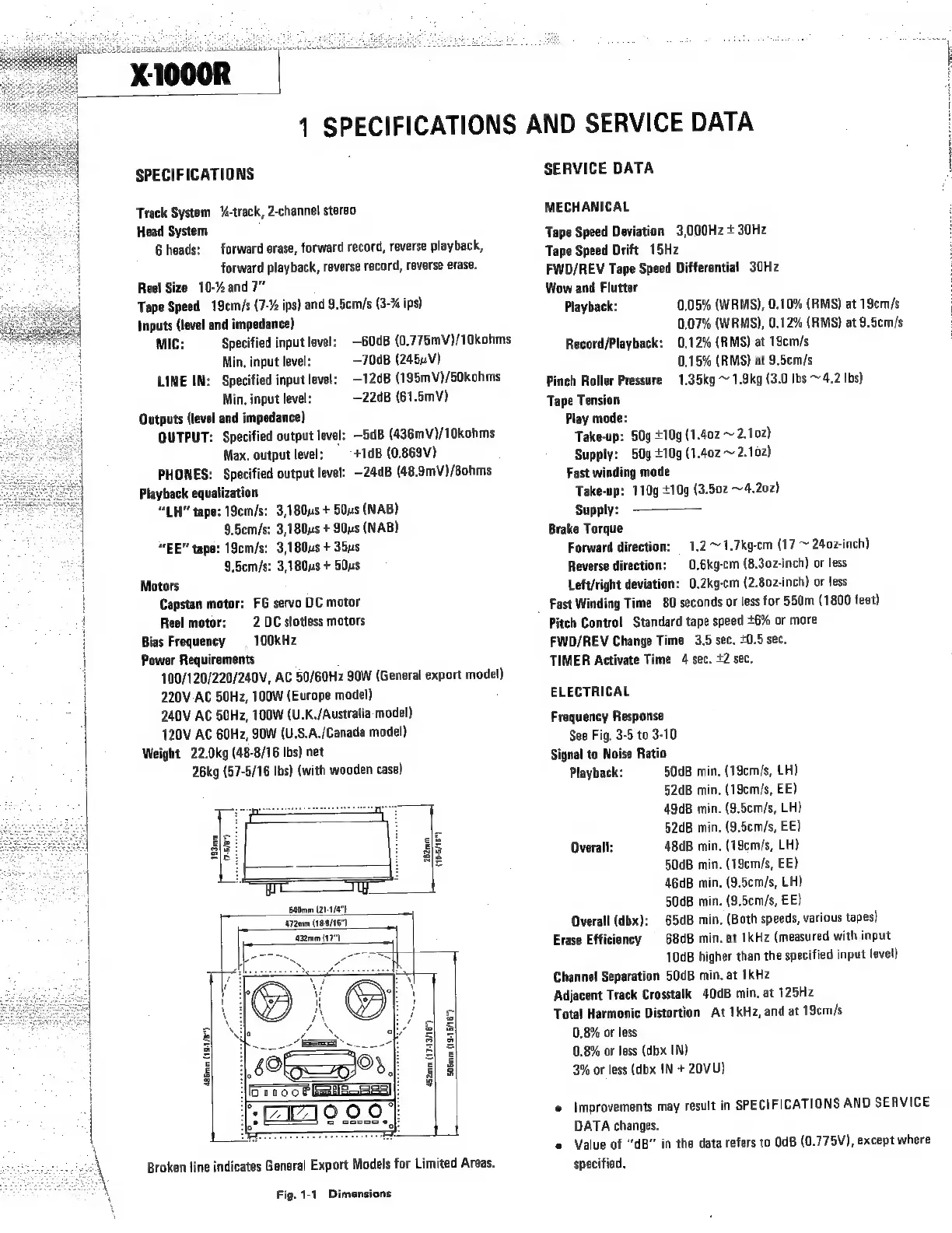

Teac X-1000R - Specifications and Service Data; Detailed Specifications; Mechanical Service Data; Electrical Service Data

SPECIFICATIONS
Track
System
%-track,
2-channel
stereo
Head
System
Gheads:
forward
erase,
forward
record,
reverse
playback,
forward
playback,
reverse
record,
reverse
erase.
Size
10-%and
7”
Speed
19cm/s
(7-%
ips)
and
9.5cm/s
(3-%
ips)
Inputs
(level
and
impedance)
mic:
Specified
input
level:
+—60dB
(0.775mV)/10kohms
Min,
input
level:
—70dB
(245uV)
LINE
IN:
Specified
input
level:
—12dB
(195mV)/5S0kohms
Min,
input
level:
—224B
(61.5mV)
Outputs
(level
and
impedance)
OUTPUT:
Specified
output
level:
—5dB
(436mV)/10kohms
Max.
output
level:
+1dB
(0.869V)
PHONES:
Specified
output
level:
—24dB
(48.9mV)/8ohms
Playback
equalization
“LH”
tape:
19cm/s:
3,180ys
+
50us
(NAB)
9.5cm/s:
3,180us
+
90us
(NAB)
“EE”
tape:
19cm/s:
3,180us
+
35us
9,5cm/s:
3,180us
+
50us
Motors
Capstan motor: FG servo DC motor
Reel motor: 2 DC slotless motors
Bias Frequency — 100kHz
Power Requirements
100/120/220/240V,
AC
50/60Hz
90W
(General
export
model)
220V AC 50Hz, 100W (Europe model)
240V
AC
50Hz,
100W
(U.K./Australia
model)
120V AC 60Hz, 90W (U.S.A./Canada model)
Weight 22.0kg (48-8/16 Ibs) net
26kg (57-5/16 Ibs) (with wooden case)
40mm (21-1/8")
")
486mm (19-1
Broken
line
indicates
General
Export
Models
for
Limited
Areas.
Fig. 1-1 Dimensions
1
SPECIFICATIONS
AND
SERVICE
DATA
SERVICE DATA
MECHANICAL
Tape Speed Deviation 3,000Hz + 30Hz
Tape Speed Drift 15Hz
FWD/REV Tape Speed Differential 30Hz
Wow and Flutter
Playback: 0.05% (WRMS), 0.10% (RMS) at 19cm/s
0.07% (WRMS), 0.12% (RMS) at 9.5cm/s
Record/Playback: 0.12% (RMS) at 19cm/s
0.15% (RMS) at 9.5em/s
Pinch
Roller
Pressure
1.35kg
~
1.9kg
(3.0
Ibs
~
4.2
Ibs)
Tape Tension
Play mode:
Take-up: 50g +10g (1.402 ~ 2.102)
Supply: 50g 410g (1.402 ~ 2.102)
Fast winding mode
Take-up:
110g
#10
(3.502
~
4.202)
Supply:
Brake Torque
Forward
direction:
1.2
~1.7kg-cm
(17
~
240z-inch)
Reverse
direction:
|
0.6kg-cm
(8.307-inch)
or
less
Left/right
deviation:
0.2kg-cm
(2.802-inch)
or
less
Fast
Winding
Time
80
seconds
or
less
for
550m
(1800
feet)
Pitch
Control
Standard
tape
speed
+6%
or
more
FWD/REV Change Time 3.5 sec. 40.5 sec.
TIMER Activate Time 4 sec. +2 sec.
ELECTRICAL
Frequency Response
See Fig. 3-5 to 3-10
Signal to Noise Ratio
Playback: 50dB min. (19cm/s, LH)
524B min, (19cm/s, EE)
49dB min. (9.5cm/s, LH)
52dB min. (9.5cm/s, EE)
Overall: 48dB min. (19cm/s, LH)
50d8 min. (19cm/s, EE)
46dB min. (9.5cm/s, LH)
50dB min. (9.5cm/s, EE)
Overall
(dbx):
65dB
min.
(Both
speeds,
various
tapes)
Erase
Efficiency
68dB
min.
at
1kHz
(measured
with
input
10dB
higher
than
the
specified
input
level)
Channel
Separation
50dB
min,
at
1kHz
Adjacent
Track
Crosstalk
40dB
min,
at
125Hz
Total
Harmonic
Distortion
At
1kHz,
and
at
19cm/s
0.8% or less
0.8% or less (dbx IN)
3% or less (dbx IN + 20VU)
©
Improvements
may
result
in
SPECIFICATIONS
AND
SERVICE
DATA
changes.
©
Value
of
“dB”
in
the
data
refers
to
OdB
(0.775V),
except
where
specified.
