Teac X-2000R Service Manual

X-2000R

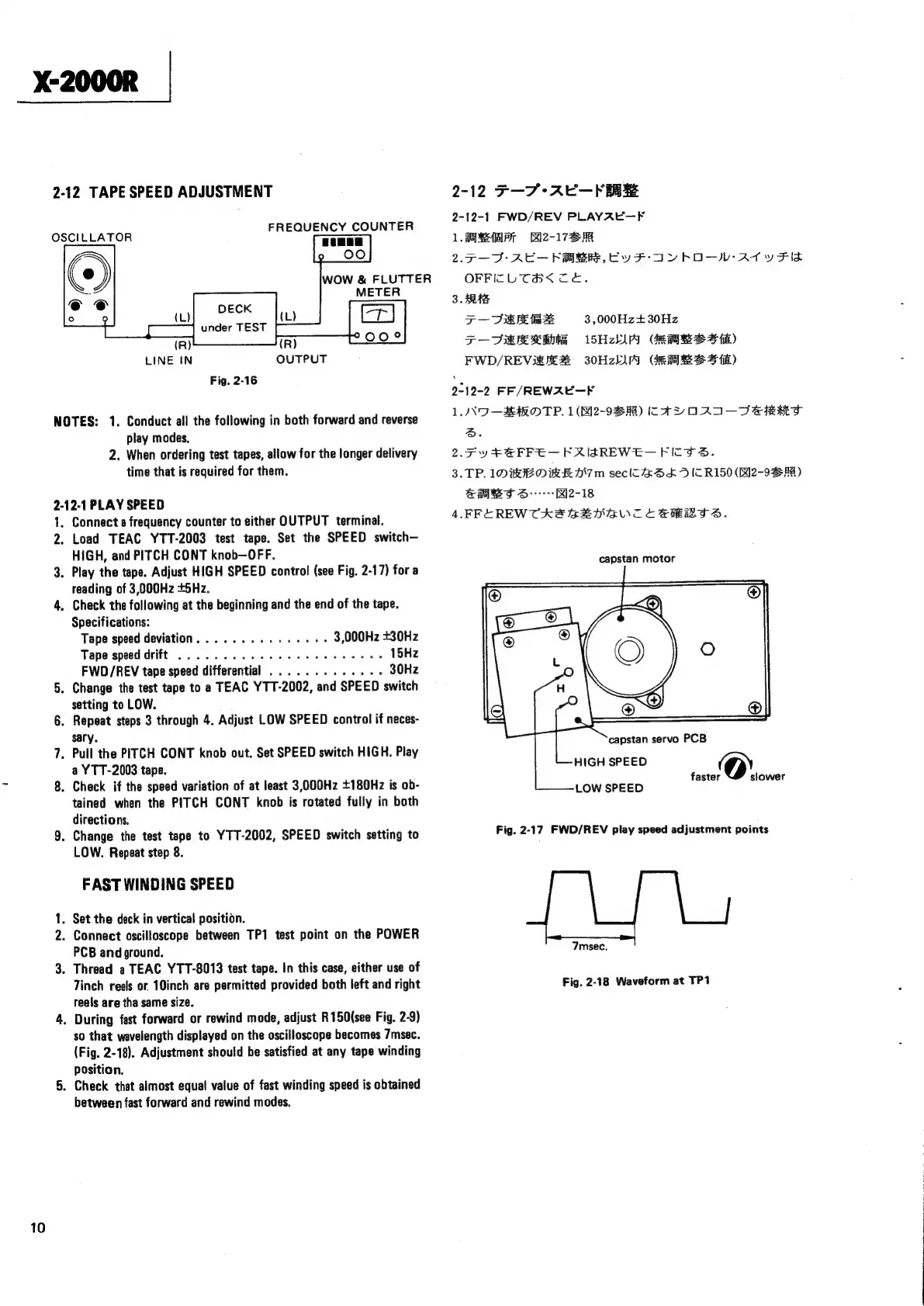

2-12 TAPE SPEED ADJUSTMENT
OSCILLATOR
FREQUENCY COUNTER
DECK
[___] under TEST
(R) (R)
LINE tN OUTPUT
Fig. 2-16
NOTES: 1. Conduct all the following in both forward and reverse
play modes,
2. When ordering test tapes, allow for the longer delivery
time that is required for them.
2-12-1 PLAY SPEED
1,
2.
3.
—_=
a
10
Connect a frequency counter to either OUTPUT terminal.
Load TEAC YTT-2003 test tape. Set the SPEED switch—
HIGH, and PITCH CONT knob—OFF.
Play the tape. Adjust HIGH SPEED control (see Fig. 2-17) fora
reading of 3,000Hz +5Hz.
. Check the following at the beginning and the end of the tape.
Specifications:
Tape speed deviation. ..........-00- 3,000Hz +30Hz
Tape speed drift 2... .. eee ee een 15Hz
FWD/REV tape speed differential ............. 30Hz
. Change the test tape to a TEAC YTT-2002, and SPEED switch
setting to LOW.
. Repeat steps 3 through 4. Adjust LOW SPEED control if neces-
sary.
. Pull the PITCH CONT knob out. Set SPEED switch HIGH. Play
a YTT-2003 tape.
. Check if the speed variation of at least 3,000Hz +180Hz is ob-
tained when the PITCH CONT knob is rotated fully in both
directions.
. Change the test tape to YTT-2002, SPEED switch setting to
LOW. Repeat step 8.
FAST WINDING SPEED
. Set the deck in vertical position.
. Connect oscilloscope between TP1 test point on the POWER
PCB and ground.
. Thread a TEAC YTT-8013 test tape. In this case, either use of
Tinch reels or. 10inch are permitted provided both left and right
reals are tha same size.
.
During
fast
forward
or
rewind
mode,
adjust
R150(see
Fig.
2-9)
so that wavelength displayed on the oscilloscope becomes 7msec.
(Fig.
2-18).
Adjustment
should
be
satisfied
at
any
tape
winding
position.
. Check that almost equal value of fast winding speed is obtained
between fast forward and rewind modes.
2-12 F—-TF-AE— PME
2-12-1 FWD/REV PLAYAE—F
1. ee 2-17 FR
2.57-T7-AK— FRR EV F- OV RO Ay Fit
OFFIC LTH< TE.
3. SUS
> — TRE faz 3,000Hz+30Hz
F—TREAH WHA Gees Sih)
FWD/REVRE# 30H2U1AN (RIFE 418)
2712-2 FF/REWAZE—F
1.IND—3EROTP. 1 (2-98) CAL OAZAI-DPeReS
d.
2.7 y+€FFE—KRISREWE— KITTS.
3. TP. 1D ORD m secllTHSBKIDITR150 (l2-9B A)
&REITS. fx]2-18
4.FFLREW CKAEGEMEWCCAERTS.
capstan motor
Fig. 2-17 FWD/REV play speed adjustment points
7msec,
Fig. 2-18 Waveform at TP1
