Teac X-2000R Service Manual

X-2000R
=
tape lift
ape
lifter
capstan
shaft

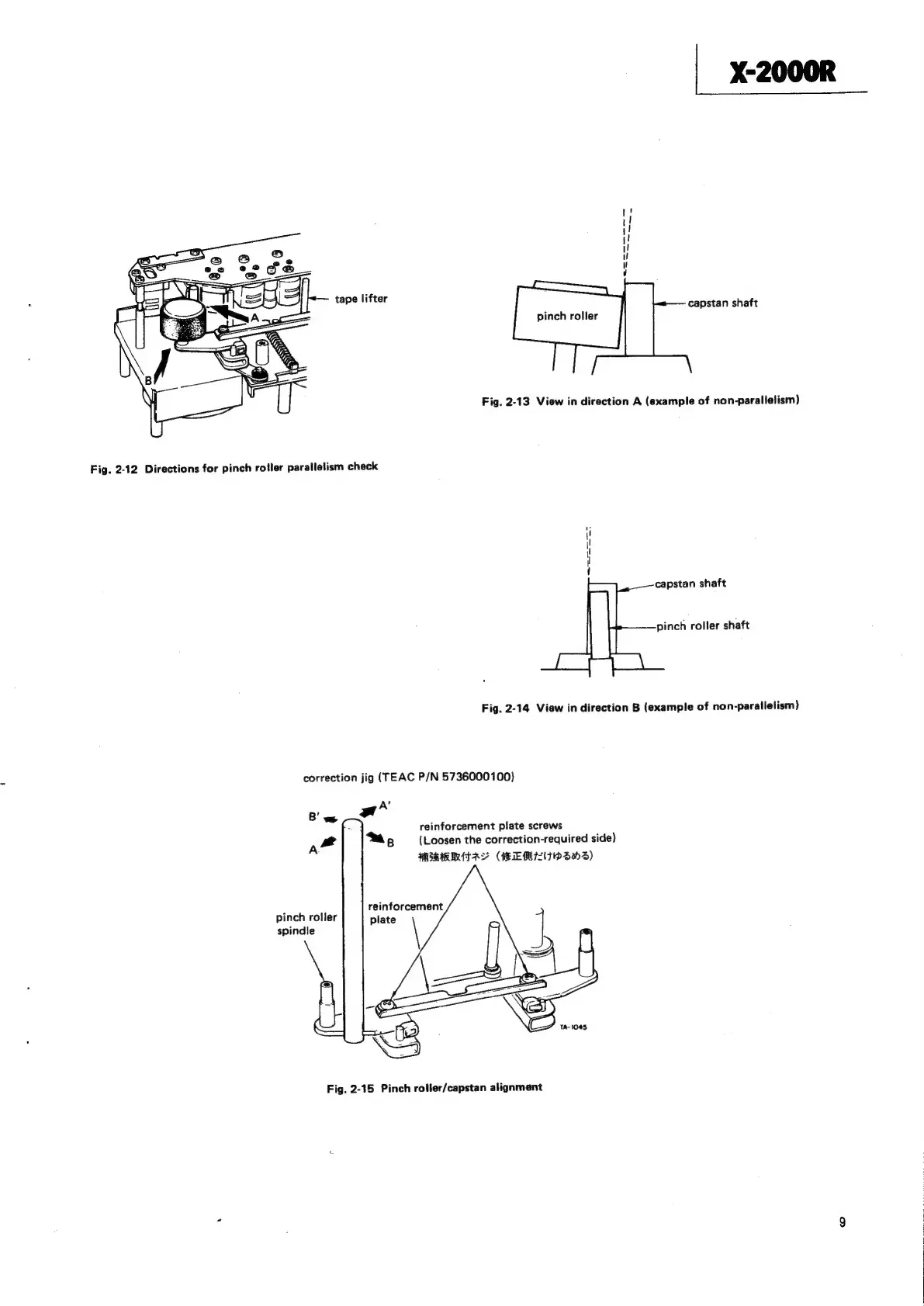

Fig. 2-13 View in direction A (example of non-paralletism)
Fig.
2-12
Directions
for
pinch
roiler
parallelism
check
pinch roller shaft
Fig. 2-14 View in direction B (example of non-paralletism)
correction jig (TEAC P/N 5736000100)
A
a
reinforcement plate screws
=.
8B
(Loosen
the
correctian-required
side)
PABRRTAS (EMIIOSHS)
: reinforcement
pinch roller
spindle
Ta- 1045
Fig. 2-15 Pinch roller/capstan alignment

Teac X-2000R Specifications

General

Track system	4-track, 2-channel stereo
Reel size	Up to 10.5 inch reel
Total harmonic distortion	0.8%
Type	Reel-to-reel tape deck
Tape speeds	9.5 cm/s, 19 cm/s
Wow and flutter	0.03% (19 cm/s)
Signal to Noise Ratio	58dB
Inputs	Line input (RCA), microphone input (XLR)
Outputs	Line output (RCA), headphone output (6.3mm jack)
