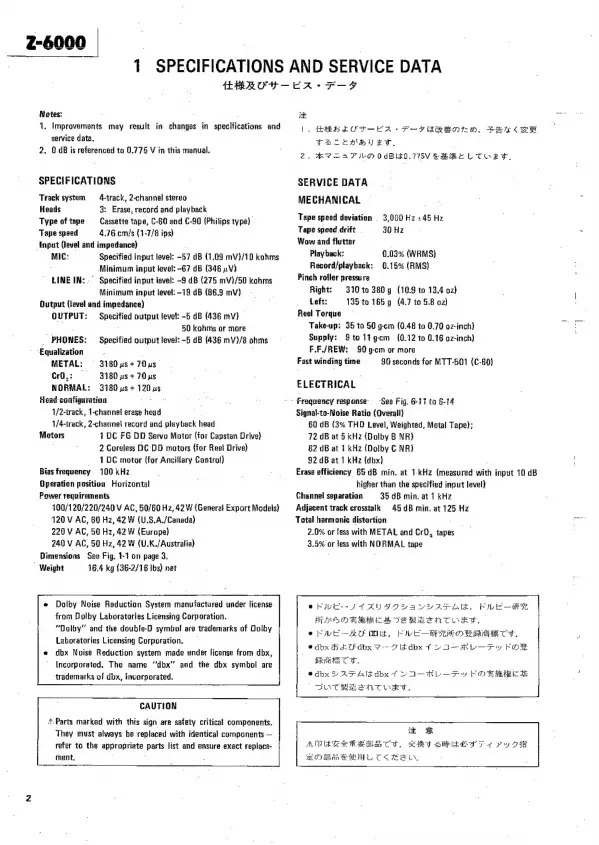

Teac Z-6000 - 1 SPECIFICATIONS AND SERVICE DATA; Specifications; Service Data; CAUTION

2-6000
1 SPECIFICATIONS AND SERVICE DATA
fRRAOUY-EA+F-F
Notes: . :
1. Improvements may result in changes in specifications and
service data,
2. O dB is referenced ta 0.775 V in this manual.
SPECIFICATIONS
Track system 4-track, 2-channel stereo
Heatis 3: Erase, record and playback
Type of tape Cassette tape, C-60 and €-90 (Philips type).
Tape speed 4.76 cm/s (1-7/8 ips}
‘Input (level and impedance) ;
MIC: Specified input level: -57 dB {1.09 mV}/10 kahms
Minimum input level: -67 dB (346 »V)
LINE IN: Specified input ievel: -9 dB (275 m¥V)/50 kohms
Minimum input level: -19 dB (86.9 mV)
Output (level and impedance)
OUTPUT: Specified output level: -5 dB {436 mV}
_ 50 kohms or more
_ PHONES: Specified output level: -5 dB (436 mV)/8 ohms
Equalization
METAL: 3180 us+70us-
CrO,: 3180 us + 704s
NORMAL: 3180 us+ 120 us
Head configuration :
1/2-track, 1-channet erase head
1/4-track, 2-channel record and playback head
Motors 1 DO€ FG DD Servo Motor {for Capstan Drive)
2 Coreless DC-DB motors (for Reel Drive)
1 DC motor (for Ancillary Contral)
Bias frequency 100 kHz
Operation pasition Horizontal
Power requirements
100/120/220/240 V AC, 50/60 Hz, 42 W {General Export Models)
120 V AC, 60 Hz, 42 W (U.S.A./Canada)
220 V AC, 50 Hz, 42 W (Eurape}
240 V AC, 50 Hz, 42 W (U.K./Australia}
Dimensions See Fig. 1-1 on page 3.
" Weight 16.4 kg (36-2/18 Ibs) net
e Dalby Noise Reduction System manufactured under license
from Dolby Laboratories Licensing Corporation.
‘Dolby’ and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
e dbx Noise Reduction system made under license from dbx,
’ Incarporated. The name “dbx” and the dbx symbol are
trademarks of dbx, incorporated.
CAUTION
‘Parts marked with this sign are safety critical components.
They must always be replaced with identical components —
refer to the SEPCORrEate: parts list and ensure exact replace-
ment.
: Frequency respanse-
i=
|. HB LUG-EA- F~—SURBEOKH, FHC EE
ToELEHRHVET, ;
2. AVITAL IMO OdBISO.77SVERBEEL TOES.
SERVICE DATA
MECHANICAL oe
Tape speed deviatian | 3,000 Hz +45 Hz
Tape speed drift . 30 Hz
Wow and flutter
Play back: 0.03% (WRMS}
Record/playback: 0.15% (RMS)
Pinch roller pressure
Right: 31010 380g (10.9 to 13.4 oz}
Left: 135 t0 165g (4.7 to 5.8 oz)
Reel Torque
Take-up: 35 to 50 g-cm (0.48 to 0.70 oz-inch}
Supply: 9to1tg-em {0.12 to 0.16 oz-inch)
F.F./REW: 90 9-cm or more
Fast winding time 90 seconds for MTT-501 (C-60)
ELECTRICAL
“See Fig. 6- #7 to 6-14
Signal-to-Noise Ratio (Overalt)
60 dB (3% THD Level, Weighted, Metal Tape};
72 dB at § kHz {Dolby 8 NR}
82 dB at 1 kHz {Dolby C NR}
92 dB at 1 kHz (dbx)
Erase efficiency 65 dB min. at 1-kHz (measured with input 10 dB
higher than the specified input level)
Channel separation 35 dB min. at 1 kHz
Adjacent track crosstalk 45 dB min. at 125 Hz
Total- harmonic distortion
2.0% or fess with METAL and CrQ,, tapes .
3.5% or fess with NORMAL tape
eK 4 AUIDVavVAsrAls, KC
FIEND FEHOHE ICR DEBE ENTE, |
eK IVE-AU OO,
KF ILDE—PPSERT OD BERETS.
®dbx BkUdbx V-- 7 lEdbx f VY I—- RL Ty FOR
RMR.
®dbx Y AFA dbx -f V-I-HLE-—Fy F amar E
SO THMSNTWEF.
iz &
ANTISERUM CH, sed SHEARS TS 7 Py OTR
EQOA Ae HHL O<K EA.
