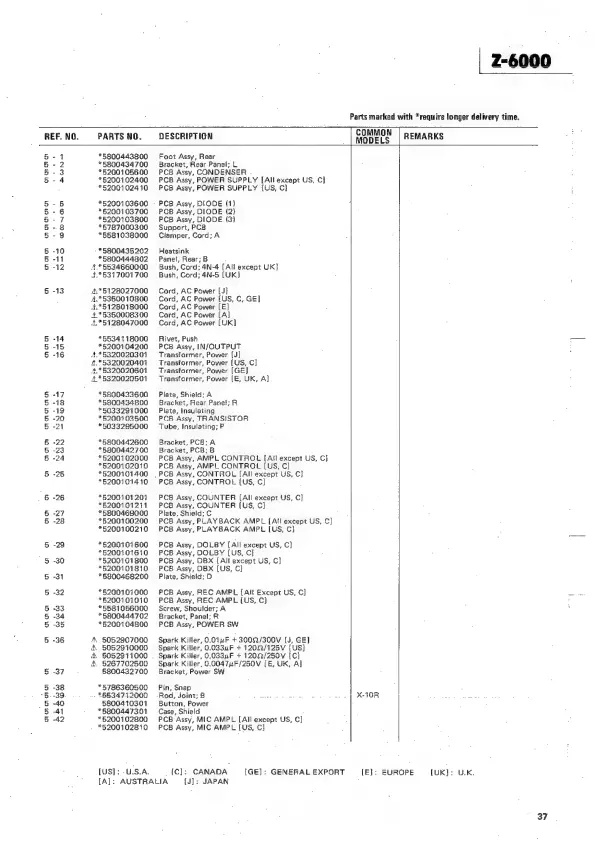

Teac Z-6000 - Page 37

a
a maga an nm ow wow
oman ool ut
Parts marked with *require longer delivery time.
REF.NO. PARTSNO. DESCRIPTIGN COMMON | REMARKS
5-1 *5800443800 Foot Assy, Rear
5-2 *5800434700 Bracket, Rear Panel; L
5-3 75200105600 PCB Assy, CONDENSER .
5-4 *6200102400 PCB Assy, POWER SUPPLY [All except US, C]
; *5200102410 PCB Assy, POWER SUPPLY {US, C]
5-5 *5200103600 - PCB Assy, DIODE (1) 1
5-6 *5200103700 PCB Assy, DIODE (2}
5-7 *5200103800 PCB Assy, DIODE (3)
5-8 *5787000300 Support, PCB
5-9 *5581038000 Ciamper, Cord: A
5 -10 -*5800435202 Heatsink
5 -11 *65800444802 ~=—Panet, Rear; B ‘
5 -12 4.°5534660000 Bush, Card: 4N-4 [All except UK]
£%5317001700 Bush, Cord; 4N-5 [UK]
§ -13 #.*5128027000 Cord, AC Power [J]
4.*5350010800 Cord, AC Power [US, C, GE]
44*5128018000 Card, AC Power [E]
£*5350008300 Cord, AC Power [A]
4.°51728047000 Card, AC Power [UK]
5-14 *6534118000 Rivet, Push
5 -15 *5200104200 PCB Assy, IN/OUTPUT
5 -16 4.*5320020301 Transformer, Power [J]
4,*5320020401 Transformer, Power [US, C]
4.*5320020601 Transformer, Power [GE]
4%*5320020501 Transformer, Power [E, UK, A]
S -17 *5800433600 = =Plate, Shield; A
5 -18 “6800434800 Bracket, Rear Panel; R
5 -19 "6033291000 Plate, Insulating
§ -20 *6200103500 PCB Assy, TRANSISTOR
5 +21 *5033285000 Tube, Insulating; P
5 -22 *5800442600 = Bracket,PCB: A
5 -23 *6800442700 Bracket, PCB; B
5 -24 *§200102000 PCB Assy, AMPL CONTROL [AH except US, Cj
*5200102010 PCB Assy, AMPL CONTROL [US, C]
5 -26 *5200101400 . PCB Assy, CONTROL [All except US, C]
*5200101410 PCB Assy, CONTROL (US, C]
-26 *5200101201 PCB Assy, COUNTER [All except US, C}
*5200101211 PCB Assy, COUNTER [US, C]
5 -27 *5800469000 Plate. Shield; C :
5 -28 *§200100200 PCB Assy, PLAYBACK AMPL [All except US, C]
*65200100210 PCB Assy, PLAYBACK AMPL [US, C]
-29 *5200101600 PCB Assy, DOLBY [All except US, C]
*52G0101610 PCB Assy, DOLBY [US, C}
-30 *5200101800 PCB Assy, DBX [All except US, C]
*§200101810 PCB Assy, DBX [US, C]
“31 *6800468200 ‘Plate, Shield; B
“32 *6200101000 PCB Assy, REC AMPL [Ait Except US, C]
*5200101010 PCB Assy, REC AMPL (US, C}
-33 *5581056000 Screw, Shoulder; A
-34 “5800444702 Bracket, Panel; R
-35 *5200104800 PCB Assy, POWER SW
-36 “ $052907000 Spark Killer, 0.074¢F + 3002/300V [J, GE]
& 5052910000 Spark Killer, 0.033uF + 120.0/125V [US]
& 6052911000 . Spark Killer, 0.033¢F + 1202/250v [C]
z 5267702500 Spark Killer, 0.00474F/250V [E, UK, A]
-37 5800432700 Bracket, Power SW
-38 *5786360500 = FPin, Snap
-39. .. *§834712066 Rod, Joint; 5 X-16R
~40 5800410301 Button, Power .
-44 *6800447301 Case, Shield
-42 *520010280G PCB "ASS, MIC AMPL [All except US, c]
. *5200102810 PCB Assy, MIC AMPL [US, C}
[US]: U.S.A. _{C€]: CANADA [GE]: EUROPE [UK]: U.K
GENERAL EXPORT (E}:
[A]: AUSTRALIA {J]: JAPAN
37
