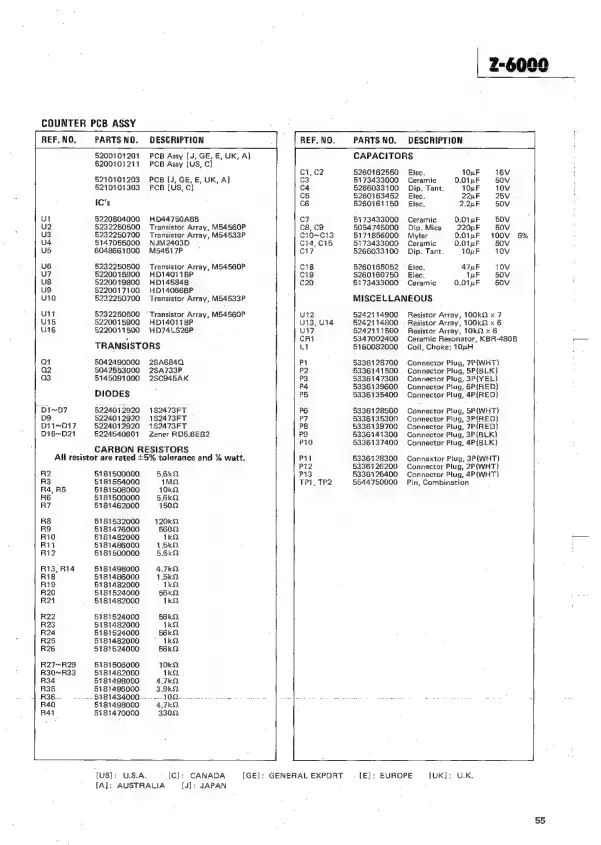

Teac Z-6000 - Page 55

2-6000
COUNTER PCB ASSY
DESCRIPTION
REF. NO. PARTS NO. DESCRIPTION PARTS NO.
5200107201 PCB Assy [J, GE, &, UK, A] CAPACITORS
5200101231 PCB Assy [US, C]
: 5260162550 Elec. 10uF 16V
5210101203 PCB IJ, GE, E, UK, A] C3 5173433000 Ceramic 0.01pF 50V
§210101303 PCB [US, C]} c4 5266033100 Dip. Tant. 10uF 10V
: C5 5260163452 Elec. 22uF 25V .
IC’s C6 5260161150 Elec. 2.2uF 50V
LA 6220804000 HD44750A65 C? 5173433000 Cerarnic 0.01 uF 5O0V
U2 5232250500 Transistor Array, M54560P C8, C9 5054745000 _~=siDip. Mica 220pF 50V
U3 5232250700 Transistor Array, M54533P C10~Ci3 5171856000 Mylar O.0inF 100V 5%
U4 5147055000 NJM2403D c1i4,C15 5173433000 Ceramic 0.014F 50V
us 6048661000 M54517P ‘ C17 5266033100 Dip. Tant. 1OuF 1i0V
U6 5232250500 Transistor Array, M54560P cis 5260165052 Etec. 47 uF TOV
U7 §220015800 HD14011BP cig 5260160750 Elec, 1hF 50V
Us 5220019800 HD145846 C20 5173433000 Ceramic 0.01 F 50V
US 5220017100 HD14066BP ;
Ui0 5232250700 Transistor Array, M54533P MISCELLANEOUS
U1t 5232250500 =‘ Transistor Array, M54560P UtT2 5242114900 Resistor Array, 100k2) x 7
w15 5220015900 HD14017BP U13, U14 5242114800 = Resistor Array, 100kQ x 6
U16 5220011500 WHD?74LS26P . U17 §242111500 Resistar Array, 10k9, x 6
. : CRi 5347002400 Ceramic Resonator, KBR-480B
TRANSISTORS 4 5160082000 Coil, Choke; 104uH
a1 5042490000 2SA6840 Pt 5336128700 -Connector Plug, 7P(WHT)
Q2 5042553000 2SA733PF P2 5336141500 Connector Plug, 5P(BLK)
Q3 5145091000 2SC945AK P3 5336147300 Connector Plug, 3P(YEL)
: : P4 5336139600 Connector Plug, 6P(RED}
DIODES PS 5336135400 Connector Plug, 4P(RED)
D1~B7 5224012920 182473FT P6 5336128500 Connector Plug, 5P(WHT)
Dg 5224012920 1S2473FT © P? 5336135300 Connector Plug, 3P(RED)
Dt1~D17 5224012920 1tS2473FT PS 533613970G Connector Plug, 7P(RED)
Di8~D21 6224540601 Zener RD5S.6EB2 PS 5336141300 Connector Plug, 3P (BLK)
P10 6336127400 Connector Piug, 4P(BILK}
CARBON RESISTORS ;
All resistor are rated +5% tolerance and % watt. P41 5336128300 Connextor Plug, 3P(WHT)
: P12 5336126200 Connector Plug, 2P{WHT}
R2 5181500006 56k2 P13 5336126400 Connector Plug, 4P(WHT)
R3 5181554000 IMQ TPi, TP2 5544750000 Pin, Combination
Rd, RS 5181506000 10k2,
R6 5181500G00 5.6k2
R7 5181462600 1502
R38 5181532000 120k22
RQ 5181476000 5602
Rid 5181482000 1kQ
R11 5181486000 15k
Ri2 5181500000 5,6ka
R13, R14 5181498000 4.7kQ -
R18 5181486000 1.5k2
Rig 5181482000 - 1k:
R20 5181524000 56K
R21 _ §181482000 1kQ
R22 5181624000 56kQ
R23 5181482606 1kQ
R24 5181524000 56kQ
R25 5181482000 ~ 1kQ
R26 5187524000 56K2Q
R27~R293 5181506000 10k2
R30~R33 5181482000 1k2 .
R34 5781498000 4.7K2Q
R35 5184496000 3.9k2
|. R36... wun 3981434000... .. 2.7 OR-. ~~... Lise A ey jee ated: fost] (eataasd | Merete, eens et vere teteeed. 98
R40 51814¢8000 47k
R41 5181470000 3302
lus: USA. ° [C]: CANADA [GE]: GENERALEXPORT . [E]: EUROPE [UK]: U.K.
[A]: AUSTRALIA (W1: JAPAN : , :
55
