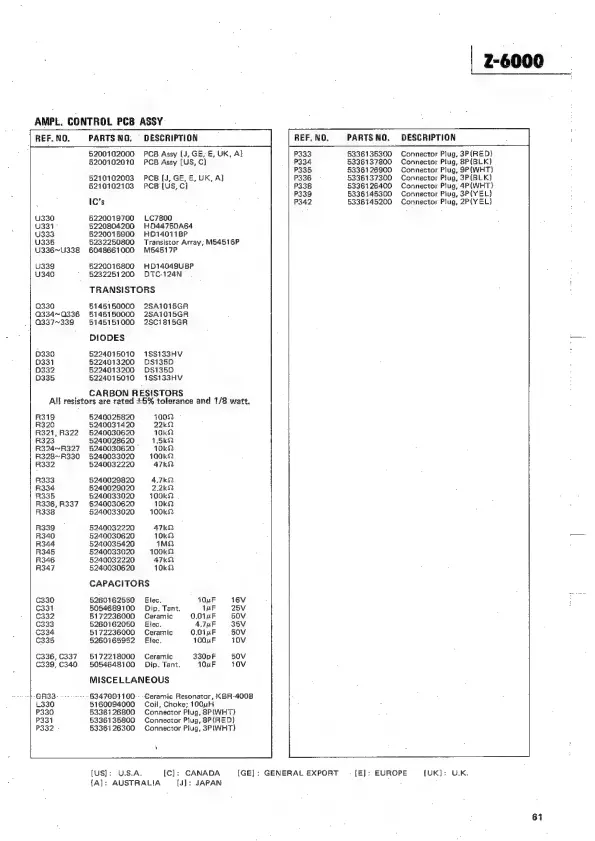

Teac Z-6000 - Page 61

AMPL. CONTROL PCB ASSY:
REF.NO. PARTSNO: © DESCRIPTION
5200102000 PCB Assy [J, GE; E, UK, A]
5200102070 PCB Assy [US, C]
5210102003 PCB [J, GE, E, UK, A}
5210102103 PCB [US,C)
IC's
U330 5220019700 LC7800
331° 5220804200 HD44750A64
U333 5220015900 HD14011BP
U335 5232250800 Transistor Array; M54516P
U336~U338 6048661000 M54517P
U339 5220016800 HD14049UBP
U340 © 5232251200 DTC-124N
TRANSISTORS
Q330 5145150000 2SA1015GR
Q334~0336 5145150000 25A1015GR
_ | QI37~339 5145151000 25C01815GR
DIODES
D330 5224015010 18S133HV
0331 5224013200 DS135D
D332 5224013200 DS135D
D335 5224015010 15S$133HV
CARBON RESISTORS
All resistors are rated +5% tolerance and 1/8 watt.
R319 5240025820 1002
R320 5240031420 22ka
R321, R322 5240030620 1Ak2
R323 5240028620 —-1.5k&2
R324~R327 5240030620 10k2
R328~R330 5240033020 100k2
R332 5240032220 47k&
R333 5240029820 4.7k2
R334 5240028020 2.2k2
R335 5240033020 7OOkKN .
R336,R337 5240030620 10k2
R338 6240033020 TOOKR
R339 5240032220 47kQ
R340 5240030620 10k2
R344 5240035420 4MQ
R345 5240033620 100k2
R346 5240032220 47kQ
R347 5240030620 10kQ
CAPACITORS
€330 5260162550 = Elec. 10nF 16V
C331 5054689100 Dip. Tant. 1HF 25V
C332 5172236000 Ceramic 0.01 WF 50Vv
C333 5260162050 Elec. 4.7uF 35V
C334 5172236000 Ceramic O.0inF 50V
C335 $260165952 Elec. 100uF 10V
C336,C337 5172218000 Ceramic 330pF 50V
C339,C340 5054648100 Dip. Tant. 10uF 10V
MISCELLANEOUS
+-GRSS- ---------8347001160.- Ceramic Resonator, K8R-400B
L330 5160094000 Coil, Choke; 100zH
P330 5336126800 Connector Plug, SP{WHT)
P331 5336135800 Connector Plug, 8P{RED)
P3232 - 5336126300 Connector Piug, 3P{WHT)
[US]: U.S.A. [Cc]: CANADA (GE]: GENERAL EXPORT
{A]: AUSTRALIA [J]: JAPAN
P334
P335
P336
P338
P339
P342
PARTS NO.
5336135300
- [EJ]: EUROPE
_ DESCRIPTION
Connector Plug, 3P(RED}
4336137800 Connector Piug, 8P(BLK)
5336126900 Connector Plug, 9P(WHT}
5336137300 Connector Piug, 3P(BLK}
5336126400 Connector Plug, 4P(WHT}
5336145300 Connector Plug, 3P(YEL}
5336145200 Connector Plug, 2P(Y EL}
(UK]: U.K.
| 26000
61
