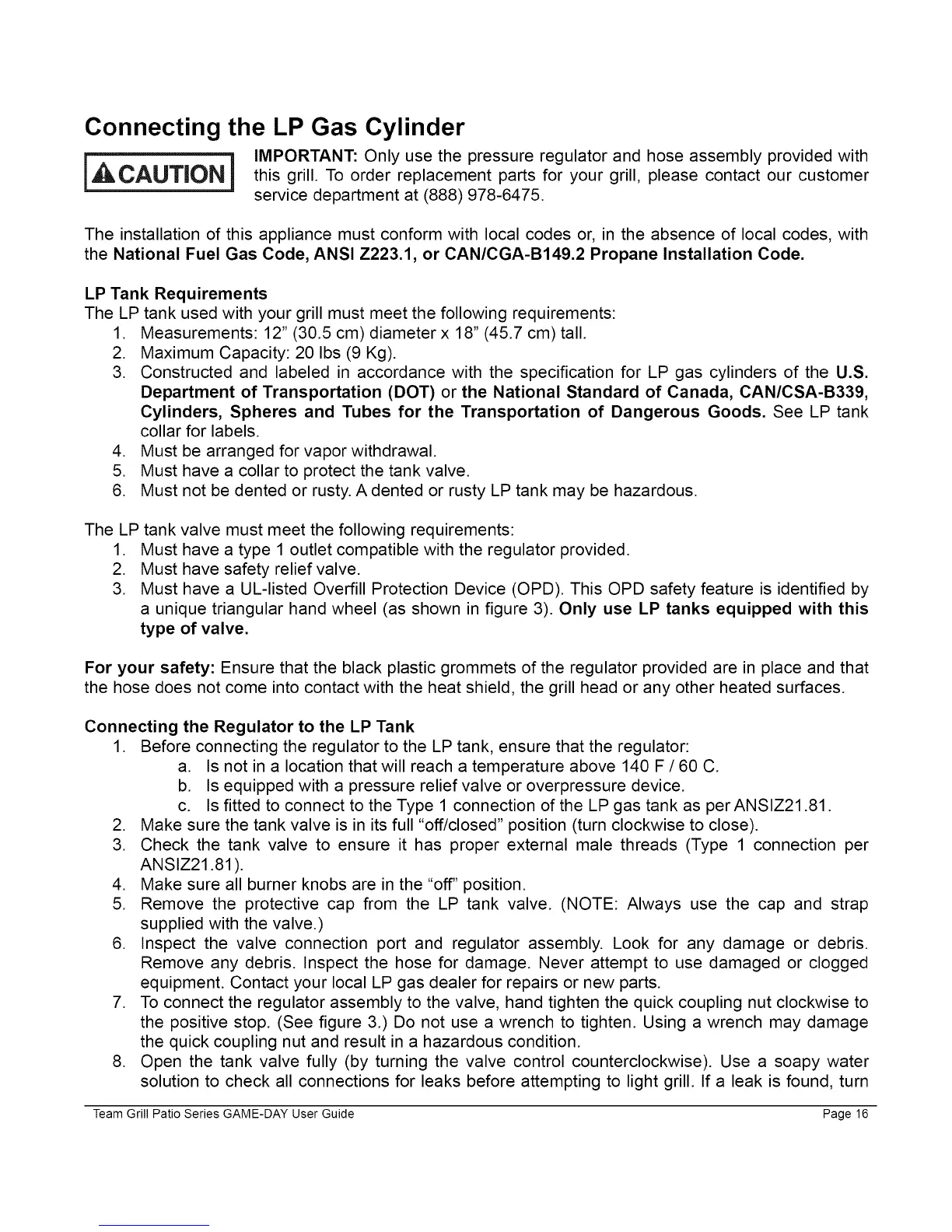

Connecting the LP Gas Cylinder
I i IMPORTANT: Only use the pressure regulator and hose assembly provided with
_CAUT_ON ! this grill. To order replacement parts for your grill, please contact our customer
service department at (888) 978-6475.
The installation of this appliance must conform with local codes or, in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1, or CAN/CGA-B149.2 Propane Installation Code.
LP Tank Requirements
The LP tank used with your grill must meet the following requirements:
1. Measurements: 12" (30.5 cm) diameter x 18" (45.7 cm) tall.
2. Maximum Capacity: 20 Ibs (9 Kg).
3. Constructed and labeled in accordance with the specification for LP gas cylinders of the U.S.
Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods. See LP tank
collar for labels.
4. Must be arranged for vapor withdrawal.
5. Must have a collar to protect the tank valve.
6. Must not be dented or rusty. A dented or rusty LP tank may be hazardous.
The LP tank valve must meet the following requirements:
1. Must have a type 1 outlet compatible with the regulator provided.
2. Must have safety relief valve.
3. Must have a UL-listed Overfill Protection Device (OPD). This OPD safety feature is identified by
a unique triangular hand wheel (as shown in figure 3). Only use LP tanks equipped with this
type of valve.
For your safety: Ensure that the black plastic grommets of the regulator provided are in place and that
the hose does not come into contact with the heat shield, the grill head or any other heated surfaces.
Connecting the Regulator to the LP Tank
1. Before connecting the regulator to the LP tank, ensure that the regulator:
a. Is not in a location that will reach a temperature above 140 F / 60 C.
b. Is equipped with a pressure relief valve or overpressure device.
c. Is fitted to connect to the Type 1 connection of the LP gas tank as perANSIZ21.81.
2. Make sure the tank valve is in its full "off/closed" position (turn clockwise to close).
3. Check the tank valve to ensure it has proper external male threads (Type 1 connection per
ANSIZ21.81 ).
4. Make sure all burner knobs are in the "off" position.
5. Remove the protective cap from the LP tank valve. (NOTE: Always use the cap and strap
supplied with the valve.)
6. Inspect the valve connection port and regulator assembly. Look for any damage or debris.
Remove any debris. Inspect the hose for damage. Never attempt to use damaged or clogged
equipment. Contact your local LP gas dealer for repairs or new parts.
7. To connect the regulator assembly to the valve, hand tighten the quick coupling nut clockwise to
the positive stop. (See figure 3.) Do not use a wrench to tighten. Using a wrench may damage
the quick coupling nut and result in a hazardous condition.
8. Open the tank valve fully (by turning the valve control counterclockwise). Use a soapy water
solution to check all connections for leaks before attempting to light grill. If a leak is found, turn
Team Grill Patio Series GAME-DAY User Guide Page 16
