Installation
continued
In-Ground & Bolt-Down Post Base (Two Burner
Sterling FR Models Only) continued
2. Place the Grill Housing on the Base and align the
holes in the bottom of the Grill Housing with the
holes in the top of the Base.
3. Fasten the Housing to the Base with the supplied
hardware: four (4) 1/4"-20 x 1/2" hex head bolts,
four (4) 1/4" flat washers, and four (4) 1/4" lock
washers. Place a lock washer followed by a flat
washer on to each bolt then insert each bolt with the
threads pointed upward into the aligned holes. Using
the 7/16" open-end wrench tighten each bolt.

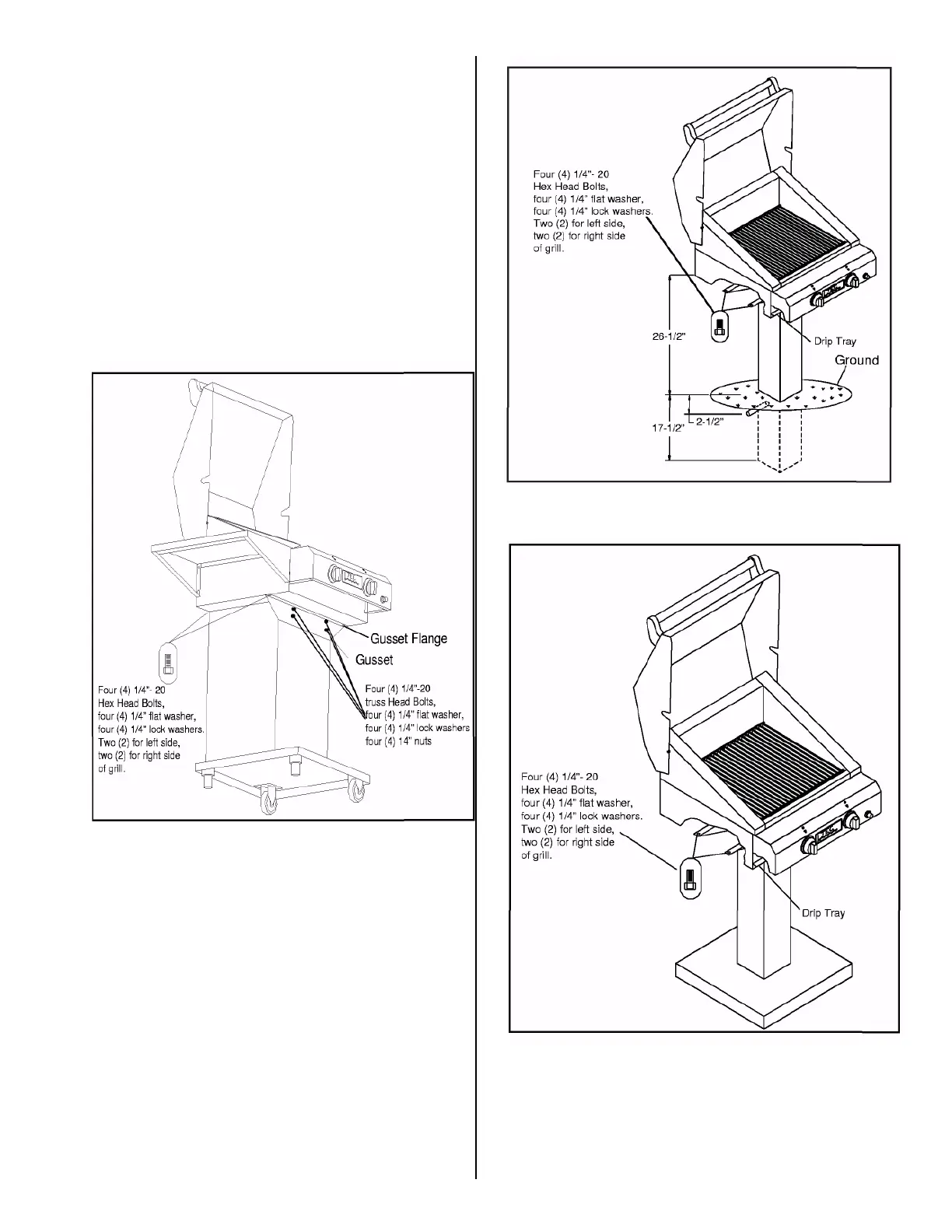

Figure 2. Pedestal Base shown with Gusset
Assembly (Sterling II FR shown)
In-Ground Posts should be protected against
corrosion as warranted by soil conditions. Corrosion
protection should be provided as needed with a
suitable coating to retard the effects of corrosion
existing in local areas.
Figure 3. In-ground Post Base (Sterling II FR
shown)
Figure 4. Bolt-down Post Base (Sterling II FR
shown)
