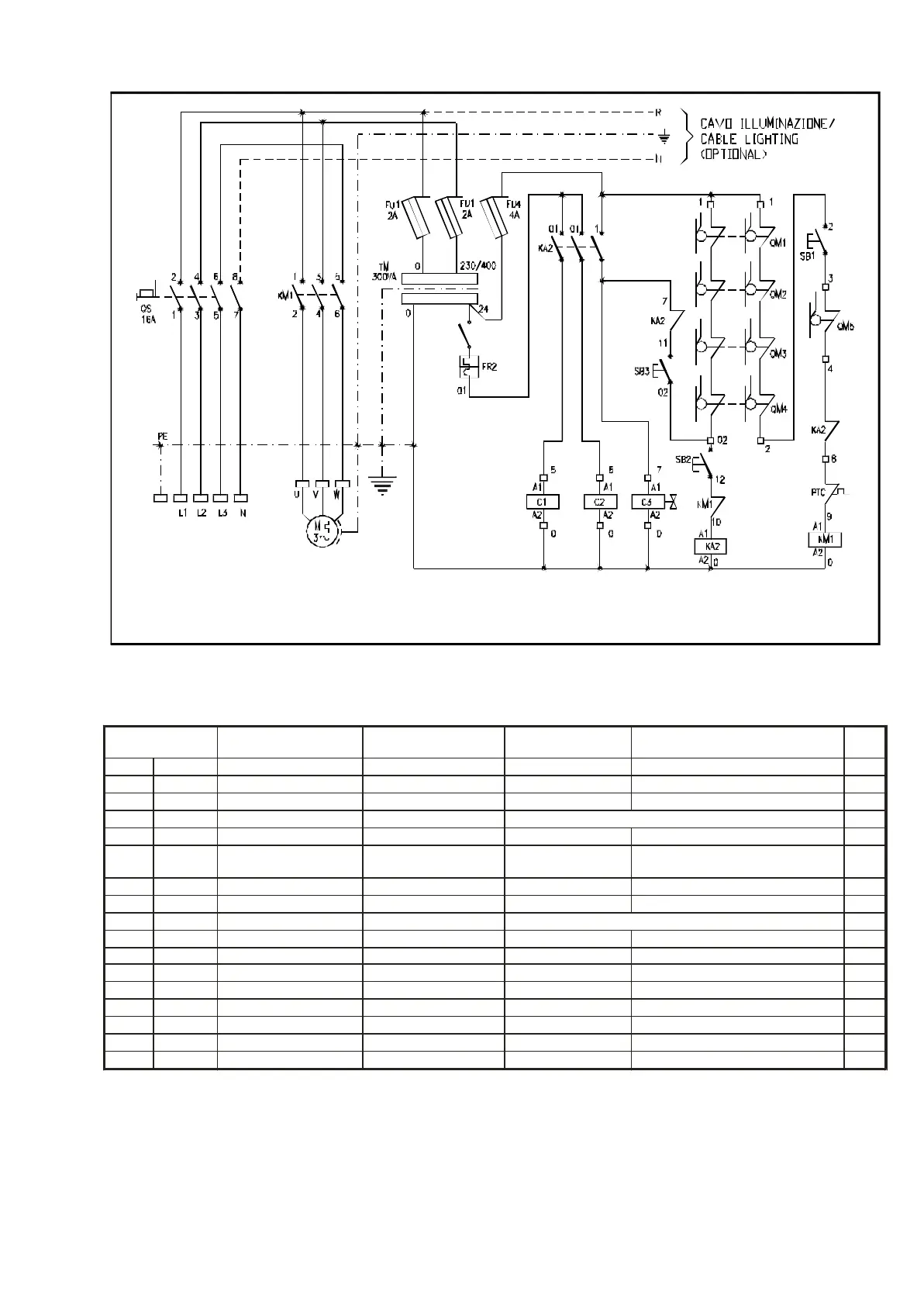

SCHEMI ELETTRICI ED OLEODINAMICI WIRING DIAGRAMS AND HYDRAULIC
11
Rif.
Ref.
Descrizione Description Marca
Brand
Art.
Article
Qt.à
Qty
C1- C2 C1-C2 Elet tro ma gne te Elec tro ma gnet WAR NER TT10 24VAC 50Hz 2
ETV C3 Elet tro val vo la Solenoid valve OIL SISTEM 24VAC 50/60Hz ED100% 1
F1 FU1-FU4 Po ra fu si bi le Fuse carrier WEBER PCH10x38+CH10x38 3
F3 PTC Li mi ta to re di temperatura Thermister Integrato nel motore / Integrated in the motor 1
FC5 QM5 Mi cro i ter rut to re sa li ta Lift microswitch PIZ ZA TO FR65 1
IG QS In ter rut to re ge ne ra le Master switch SPRE CHER LA2-12-1754+LFS2-N-6-175+LA2-12
-C4+LA2-G2853+LA2-G3194
1
K1 KM1 Te le rut to re Contactor TELEMECANIQUE LC1K0901B7 24V 50/60Hz 1
K2 KA2 Te le rut to re discesa Descent contactor TELEMECANIQUE LC1D12+LA1DN11 1
M M Mo to re elet tri co Electric motor 230/400V 50Hz 1
P1 SB1 Pul san te sa li ta Up button TELEMECANIQUE HB7EA21P (1NO) 1
P2 SB2 Pul san te di sce sa Down button TELEMECANIQUE HB7EA21P (1NO) 1
P3 SB3 Pul san te sta zio na men to Stopping button TELEMECANIQUE ZB5AA8+ZB5AZ009+ZBE101 (1NO) 1
QM1 FR2 In ter rut to re ma gne ti co Magnetic switch 20A TYPE C 1
S1 - S4 QM1/QM4 Mi cro i ter rut to re fune Cable microswitch PIZ ZA TO FR1454 4
TR TM Tra sfor ma to re Tran sfor mer C.E. 230-400/24V 300VA 50/60Hz 1
Mor set ti li nea Line clamps CABUR CBD2 2.5mmq 4
Mor set ti ter ra Earth clamps CABUR TE4/D-TE4/0 4mm 1
