Flushing technology
6-16
TECE flushing technology – U 1 urinal flush valve

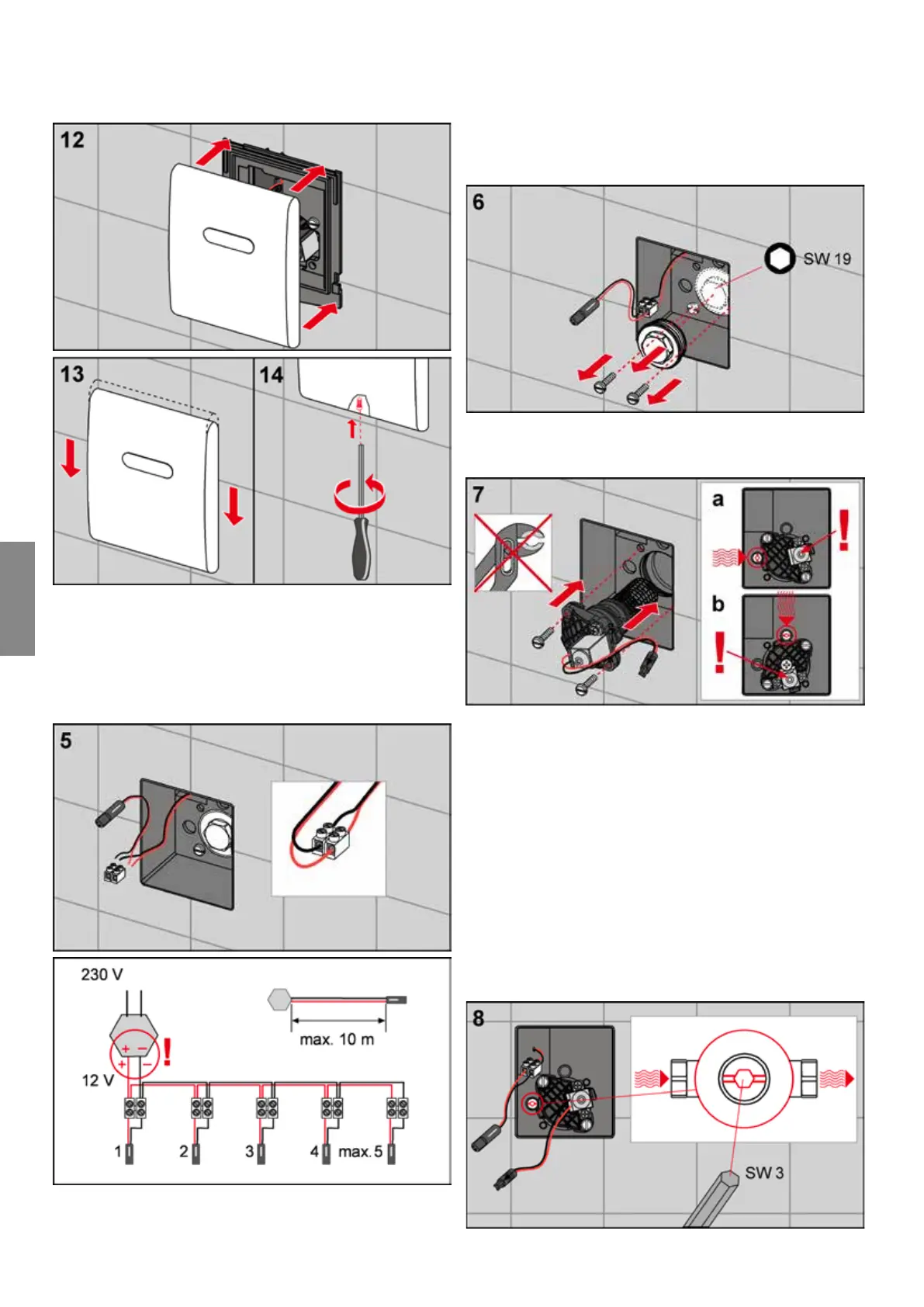

Finally, install the flush plate cover and mount the van-
dal-resistant screw supplied.
Installing the electronic urinal flush valve, 230
V/12 V mains version
Connect the transformer cable to the mains connection
adapter. Ensure correct polarity when making the connec-
tions.
Note the maximum number of connected electronics (= )
and the maximum length of the connection cable (= m).
Remove the bare-wall plug and unscrew the fastening
screws on the bare-wall protection.
Install the electric cartridge (do not insert with tool !) and
tighten the screws by hand.
Note:
It is particularly important, when installing the electronic
cartridge, to place it in the correct position. As can be
seen on the right-hand side of the diagram, the position
also depends on the installation situation of the flush
valve housing: Horizontal housing = shut-o on the left,
electronics on the right; vertical housing = shut-o at the
top, electronics at the bottom. If the cartridge is installed
incorrectly, the function may operate to start with, however,
malfunctions will occur after a while.
Open the inlet flow control.
