TECE U2 TECEfilo - Bare Wall - Mounting and Installation; Installing the Wall-Mounted Tecefilo Urinal Flush Plate 230

Flushing technology
6-21

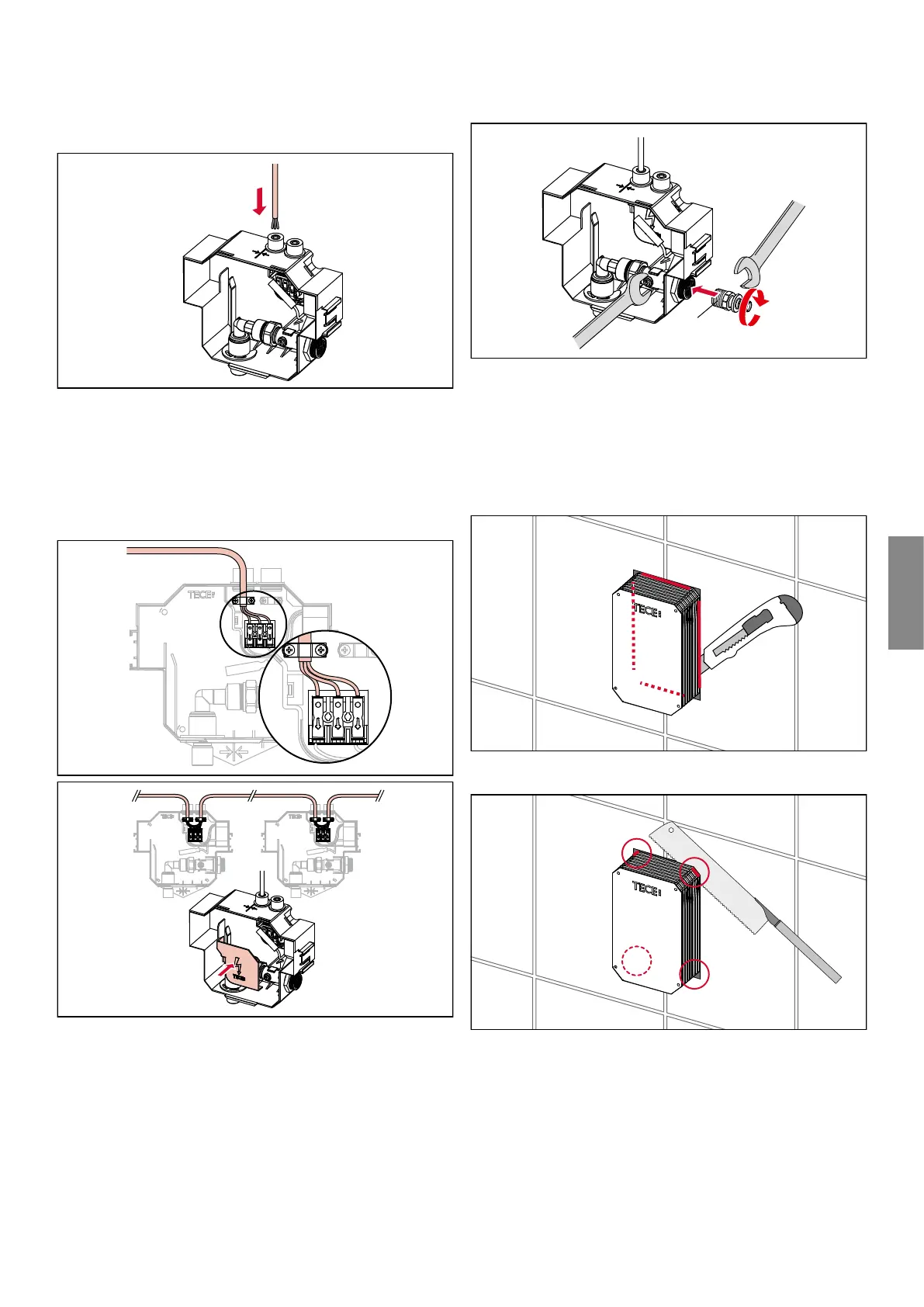

Bare wall – mounting and installation
1
230 V ~
The U flush valve housing can be installed in dry-walls
and brick-walls. The transformer is already integrated into
the flush valve housing to facilitate coordination of the
dierent trades carrying out the assembly work. Therefore,
the transformer can be directly connected with a  V
cable.
2
3
It is also possible to loop the connection through (fig. ).
4
R 1/2 "
!
To connect the pipe, hold the connection housing as
shown in fig. .
Installing the wall-mounted TECEfilo urinal
flush plate 230 V/12 V
1
Cut the thin surface with a cutter knife.
2
Use a saw to cut the corner areas, where the wall is thicker,
flush to the wall.
