Flushing technology
6-11

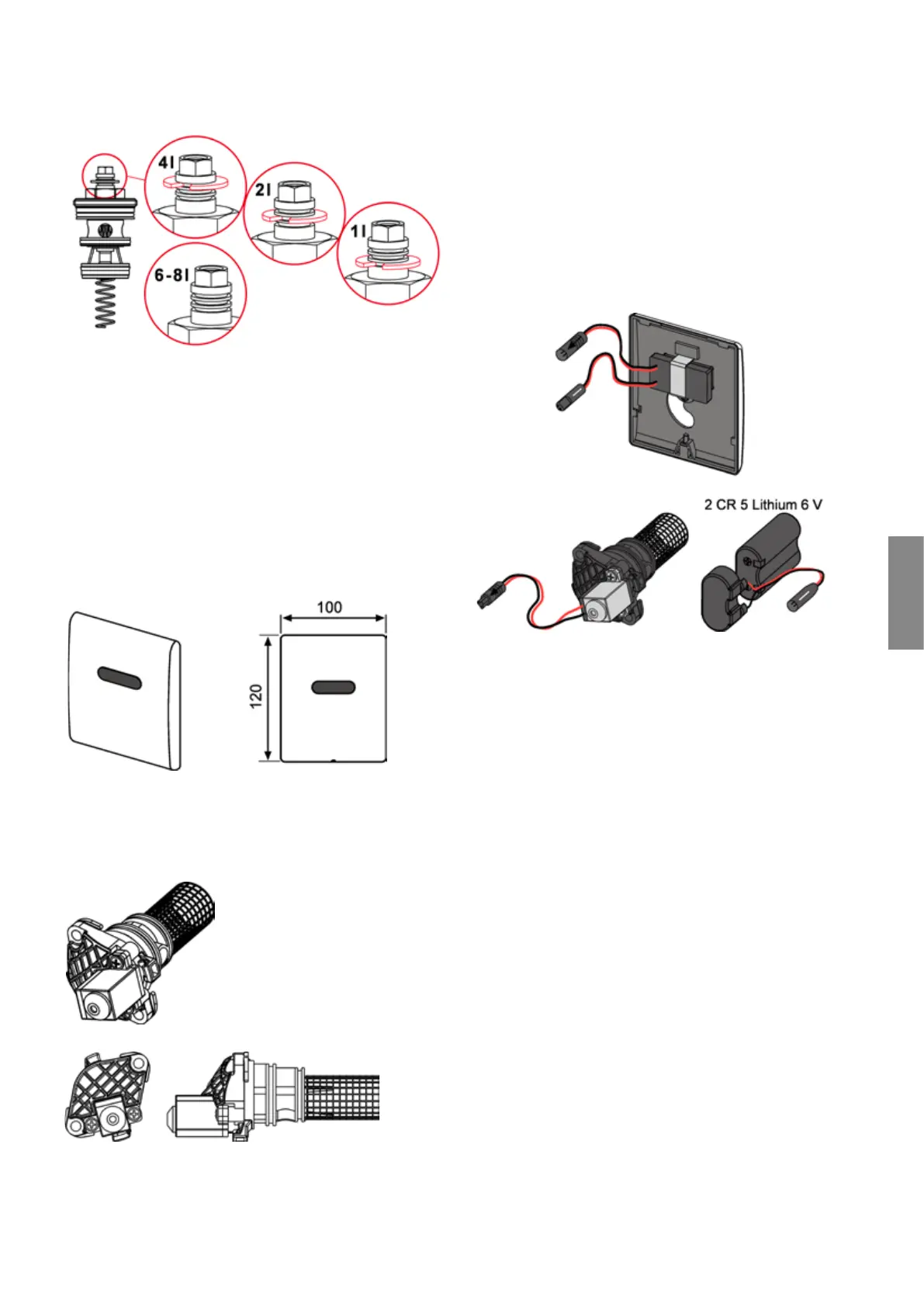

Adjusting the volume on the mechanical cartridge
All TECE manual urinal push plates can be used together
with the U mechanical urinal flush valve.
U 1 electronic flush valve
Touch-free electronics are often particularly required in
the public sector. Because the covers of the TECEplanus
electronics are made of metal and are also equipped with
anti-vandal protection, the electronic units from TECE are
particularly well-suited to this application.
TECEplanus urinal electronic unit with infrared sensor
The Autofocus infrared sensor reliably recognises every
use. A magnetic key allows various settings to be per-
formed on the electronics, including retrospectively.
Electronic cartridge
The TECEplanus infrared electronics can be supplied with
electricity in two dierent ways:
• V battery
• V/ V mains power supply
6 V battery version
The electronics on the battery version have one connec-
tion to a battery (connector with white marking) and one to
an electronic cartridge (connector with black marking).
Urinal electronics, 6 V battery version
Power is supplied by a V battery, type: CR Lithium
V.
Based on a service life of two years, the battery lasts for
• , flushes or
• approx. flushes/day.
When the voltage drops to . V, the voltage for operating
the electronics is no longer sucient and the battery must
be replaced. The electronics notify you of this by beeping
during the flush process. If the voltage drops any further, a
flush can no longer be performed and the electronics will
only beep when a person is in the detection range.
Technical data urinal infrared electronics, 6 V battery
Minimum flow pressure . bar
Max. operating pressure bar
Flow rate at bar . l/s
Operating voltage V DC
Power input W
Max. power input W
Battery type Lithium V, CR
Max. battery service life approx. years
Protection class III
Safety extra low voltage
(SELV)
Flush time, factory setting s
Flush time, setting range - s
