Flushing technology
6-26
11
9 242 050
...054
9 242 060
...062

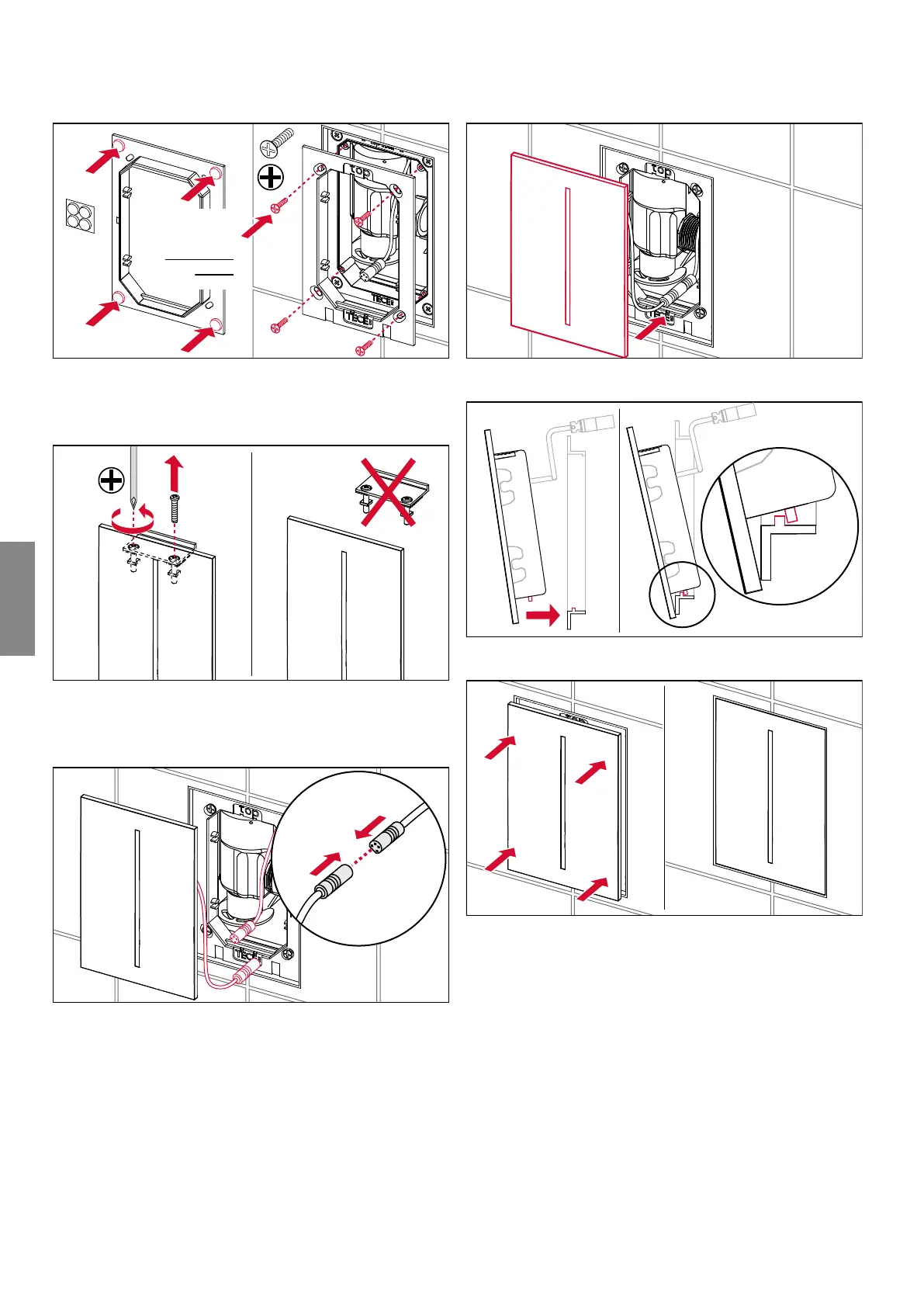

Stick the spacers to the back of the support frame of the
plastic electronics, and screw the frame onto the urinal
flush valve housing.
For the flush-mounted installation, leave out the anti-theft
device. For the flush-mounted installation, the cover should
always be removed using the bow-type handles.
13
Connect the plug-in connection for the infrared sensor on
the cover plate.
14
Mount the cover.
Hook in the bottom of the cover panel.
16
Press the cover into the mounting support.
TECE flushing technology – U 2 TECEfilo urinal flush valve
