UK
18

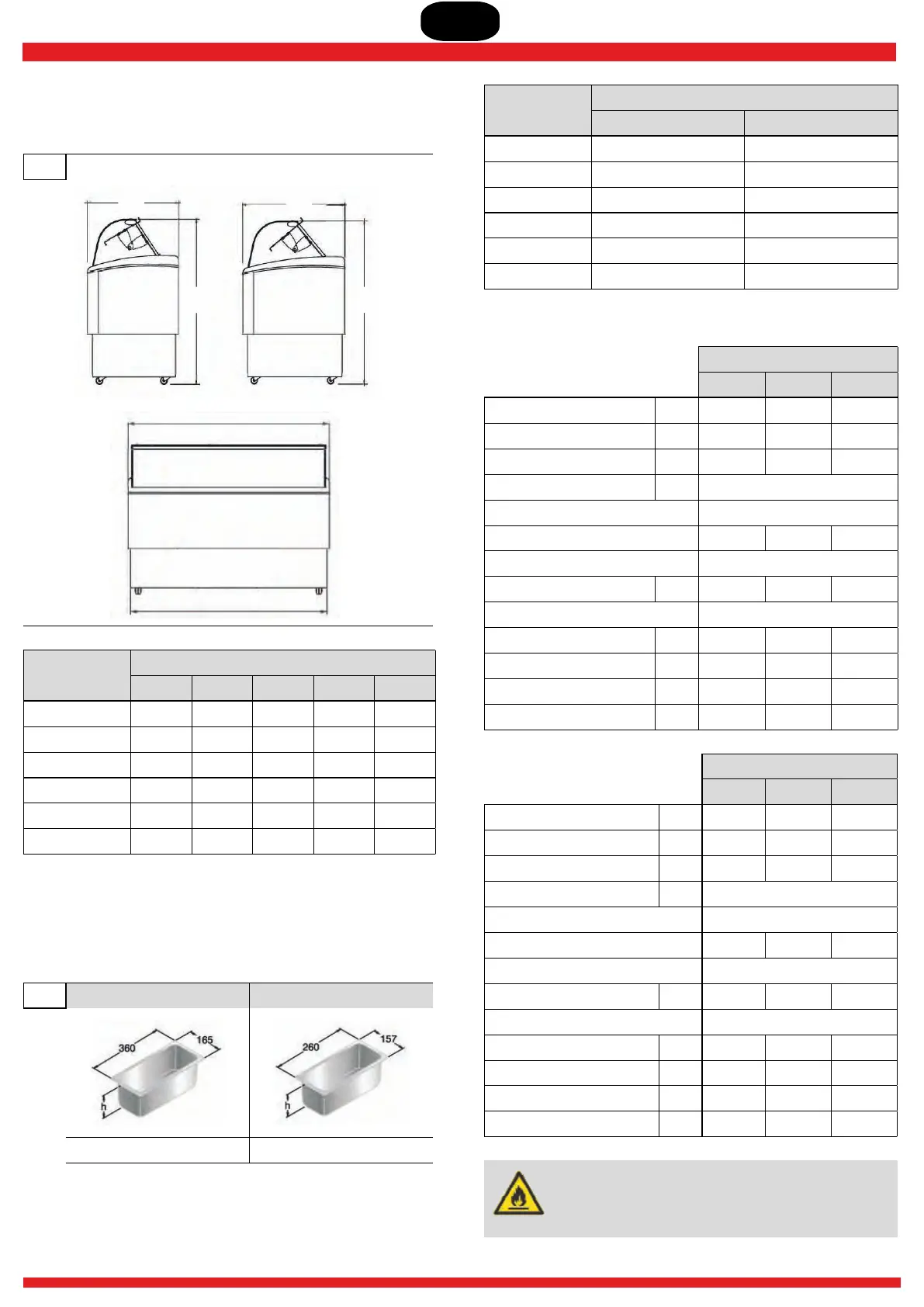

5.2 TECHNICAL DATA
5.2.1 Overall dimensions
24
MODEL
DIMENSIONS (mm)
W W1 D1 D2 H
6 1184 1140 666 – 1225
7 1350 1306 666 – 1225
9 1659 1615 666 – 1225
4+4 852 808 – 773 1225
6+6 1184 1140 – 773 1225
7+7 1349 1305 – 773 1225
W = Width / D = Depth / H = Height
5.2.2 Dimensions and arrangement of ice
cream tubs
25
5 / 7 / 8 Lt. 4.75 Lt.
h = 120 / 150 / 180 mm h = 170 mm
MODEL
Number of tubs (max)
5 / 7 / 8 Lt. 4.75 Lt.
6 12 8
7 18 12
9 24 16
4+4 12+12 8+8
6+6 11 7
7+7 11 7
5.2.3 Technical characteristics
MODEL
6 7 9
Display surface m
2
0,42 0,49 0,62
Loading capacity lt 106 122 153
Weight kg 102 112 127
Product basin temp. °C -16 / -18
Climatic class nr. 4 (30 °C / 55 % R.H.)
Refrigeration (S/V) V V V
Coolant Gas R290
Q.ty of coolant gas g 120 120 120
Power supply 230 V / 50 Hz / 1~
Rated capacity
W 620 620 710
Defrosting power
W 1270 1270 1500
Lighting power
W 30 30 36
Noise level
dB(A) <52 <52 <52
MODEL
4+4 6+6 7+7
Display surface m
2
0,37 0,53 0,62
Loading capacity lt 93 133 153
Weight kg 90 115 132
Product basin temp. °C -16 / -18
Climatic class nr. 4 (30 °C / 55 % R.H.)
Refrigeration (S/V) V V V
Coolant Gas R290
Q.ty of coolant gas g 120 120 120
Power supply 230 V / 50 Hz / 1~
Rated capacity
W 620 620 620
Defrosting power
W 1021 1270 1270
Lighting power
W 20 30 30
Noise level
dB(A) <52 <52 <52
R290
The R290 gas is a refrigerant that is not harm
ful to the environment but HIGHLY FLAMMA
BLE.
D1 D2
H
W
W1
H
